Quick Details
-
Brand Name:
-
MICROLINK or OEM
-
Product name:
-

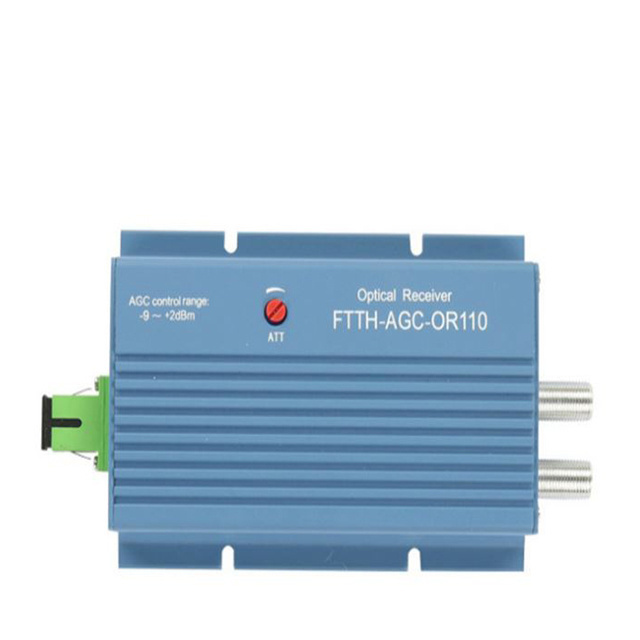

2 output FTTHCATV ftth micro fiber optical receiver 1550nm node
-
Application:
-
HFC&CATV&FTTX
-
Fiber Cable Interface:
-
SC/APC
-
Input Wavelength:
-
1100~1600nm or 1550nm(with filter)
-
optical input power::
-
-23~0dbm
-
AGC range:
-
-15~0dbm
-
Bandwidth:
-
47~1002MHz
-
Output Interface:
-
2RF, 1RF customized
-
Dimensions:
-
128mm*80mm*26mm
-
Certificate:
-
CE, ROHS
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Model Number:
-
ML-AGC-OR110
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MICROLINK or OEM
-
Product name:
-
2 output FTTHCATV ftth micro fiber optical receiver 1550nm node
-
Application:
-
HFC&CATV&FTTX
-
Fiber Cable Interface:
-
SC/APC
-
Input Wavelength:
-
1100~1600nm or 1550nm(with filter)
-
optical input power::
-
-23~0dbm
-
AGC range:
-
-15~0dbm
-
Bandwidth:
-
47~1002MHz
-
Output Interface:
-
2RF, 1RF customized
-
Dimensions:
-
128mm*80mm*26mm
-
Certificate:
-
CE, ROHS
high level 2 output FTTH Digital and analog CATV ftth micro fiber optical receiver 1550nm node with AGC and filter
Product Description
FEATURE
Low-power optical detector, GaAs
module
and optical AGC technology
RF output for both analog and digital CATV access
Stable and reliable AGC function
ATT wide adjusable
0 ~18dB
Compact structure mini deisgn to save space
Low power comsumption (less than 2W)
DATASHEET
|
2 output FTTH Digital and analog CATV ftth micro fiber optical receiver 1550nm node with AGC and filter
|
|
|
|
|
||||
|
Optical Interface
|
Input Wavelength
|
|
1100nm~1600nm; 1550nm with filter
|
|
||||
|
|
Operation Wavelength
|
|
1540nm~1560nm
|
|
||||
|
|
Channel Separation
|
|
≥40dB
|
|
||||
|
|
Response
|
|
≥40 A/W
|
|
||||
|
|
Optical Power Range (Analog TV)
|
|
0dBm~-15dBm
|
|
||||
|
|
Optical Power Range (Digital TV )
|
|
0dBm~-23dBm
|
|
||||
|
|
Reflection Loss
|
|
≥55dB
|
|
||||
|
|
Fiber Input
|
|
SC /APC
|
|
||||
|
|
Bandwidth
|
|
47~1006 MHz
|
|
||||
|
|
RF output reflection
|
|
≥16dB@ 47~550MHz, ≥14dB@1006MHz
|
|
||||
|
|
In-band flatness
|
|
±0.75dB@47~1006MHz
|
|
||||
|
|
RF output level
|
|
≥80dBuv (Pin:-9~0dBm)
|
|
||||
|
|
AGC control range
|
|
0~-15dBm
|
|
||||
|
|
AGC character
|
|
≤±0.5dB (Pin:-10~0dBm)
|
|
||||
|
|
ATT
|
|
0~18dB
|
|
||||
|
|
Carrier to Noise Ratio
|
|
≥51dB
|
|
||||
|
|
Output impendance
|
|
75Ω
|
|
||||
|
|
MER
|
|
>36dB (Pin=-15~+0dBm)
|
|
||||
|
|
|
|
>28dB (Pin=-22dBm)
|
|
||||
|
|
BER
|
|
<1.0E-9 (Pin=-15~+0dBm)
|
|
||||
|
|
|
|
<1.0E-9(Pin=-22dBm)
|
|
||||
|
|
CNR
|
|
≥51dB (Pin=-2dBm)
|
|
||||
|
|
CTB
|
|
≥65dB(Pin=-2dBm)
|
|
||||
|
|
CSO
|
|
≥62dB(Pin=-2dBm)
|
|
||||
|
Power Supply
|
External AC100~240V, DC5V, <2W
|
|
|
|
||||
|
Operating temperature
|
-20℃ ~+55℃
|
|
|
|
||||
|
Storage Temperature
|
-
40℃~75℃(humidity 5~90%)
|
|
|
|
||||
Detailed Images
Application
Packing & Delivery
Related Products
HYA
HYACT
HYV
Our Factory
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer, designer and distributor.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it depends on order quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight which is refundable from an official order. For our regular clients, we bear sample cost and delivery freight.
Q: Do you offer OEM & ODM service
Yes, we can print your LOGO on RJ45 plug and cable and package as per demand for bulk order.
Q: What is your terms of payment ?
A: Payment less than 2000USD, 100% in advance. Paymen more than 2000USD, 30% T/T in advance ,balance before shipment.Also we accept L/C at sight. Other payment ways are negotiable.If you have another question, pls feel free to contact us as below:
Q: What about shipment?
A: we have long term cooperation with premium logistic forwarders, who can offer fast delivery at low freight rate for shipment like express, post, air cargo, ocean cargo, door to door DDP &DDU.
