Quick Details
-
Insulation Material:
-
XLPE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haerkn
-
Model Number:
-
UL 3398 XLPE Insulsted Irradiated Wire
-
Rated Temperature:
-
150 deg C
-
Rated Voltage:
-
300 Vac
-
Testing voltage:
-
2500V
-
O.D.Tolerance:
-
±0.1mm
-
color:
-
to the clients' requirment
-
core:
-
1 core
-
Covering:
-
optional-xlpe
-
Packing:
-
In coils or on spools
Quick Details
-
Application:
-
Overhead
-
Conductor Material:
-
Tinned or bare or silver-plated copper
-
Conductor Type:
-
Solid or stranded round
-
Insulation Material:
-
XLPE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haerkn
-
Model Number:
-
UL 3398 XLPE Insulsted Irradiated Wire
-
Rated Temperature:
-
150 deg C
-
Rated Voltage:
-
300 Vac
-
Testing voltage:
-
2500V
-
O.D.Tolerance:
-
±0.1mm
-
color:
-
to the clients' requirment
-
core:
-
1 core
-
Covering:
-
optional-xlpe
-
Packing:
-
In coils or on spools

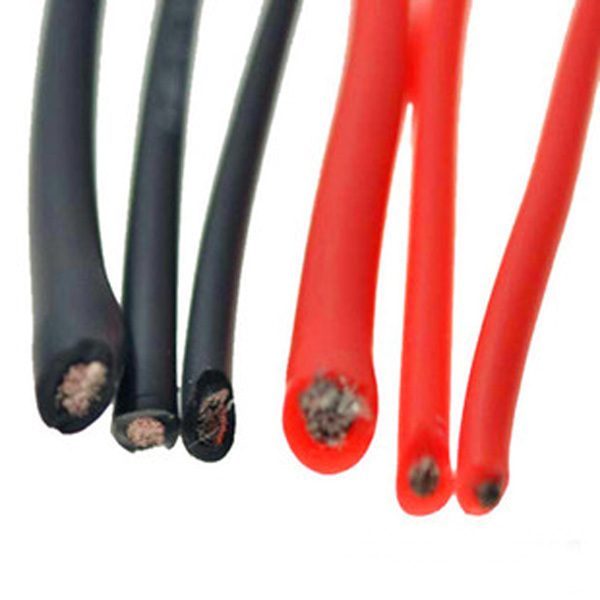

XLPE power cable price copper XLPE Insulated Wire UL 3398
| Rating | 150 deg C, 300 Vac, Horizontal flame. |
| Conductor | 32 AWG - 10 AWG solid or stranded, tinned, bare or silver plated copper, or solid or stranded coated high strength copper - minimum 90% conductivity. |
| Insulation | XLPE, 15 mils min average, 13 mils minimum at any point. |
| Covering | Optional - XLPE, 10 mils minimum average, 8 mils minimum at any point. Compound Designation same as Insulation. |
| Standard | Appliance Wiring Material UL 758. |
| Marking | General. |
| Use | Internal wiring of appliances where not subjected to movement or mechanical damage. Tags may indicate the following: 600 V peak - for electronic use only. |
|
Conductor |
Insulator |
Electrical Characteristic |
Packing |
|||
|
AWG |
Comps.n . x/ φmm |
Diameter/ φmm |
Insulation Thickness /mm |
Over diameter/ φmm |
Realst, max Cuc, c 20 °C / Ohm/km |
Mt/coils |
|
30 |
7/0.10 |
0.31 |
0.38 |
1.07 |
381.00 |
610 |
|
28 |
7/0.12 |
0.37 |
0.38 |
1.13 |
239.00 |
610 |
|
26 |
7/0.16 |
0.49 |
0.38 |
1.25 |
150.00 |
610 |
|
24 |
7/0.20 |
0.61 |
0.38 |
1.37 |
94.20 |
610 |
|
22 |
17/0.16 |
0.76 |
0.38 |
1.52 |
59.40 |
610 |
|
20 |
20/0.18 |
0.93 |
0.38 |
1.69 |
36.70 |
610 |
|
18 |
16/0.254 |
1.17 |
0.38 |
1.93 |
23.20 |
305 |
|
16 |
26/0.254 |
1.50 |
0.40 |
2.30 |
14.60 |
305 |
|
14 |
41/0.254 |
1.88 |
0.46 |
2.80 |
8.96 |
305 |
|
12 |
65/0.254 |
2.37 |
0.51 |
3.39 |
5.64 |
100 |
|
10 |
105/0.254 |
3.00 |
0.51 |
4.02 |
3.546 |
100 |
