1) In Bulk
2) Plastic Bag
3) Wooden Frame.
The Packaging Material Can Be Customized According To Your Need.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
LEDES
-
Model Number:
-
SCH40-03
-

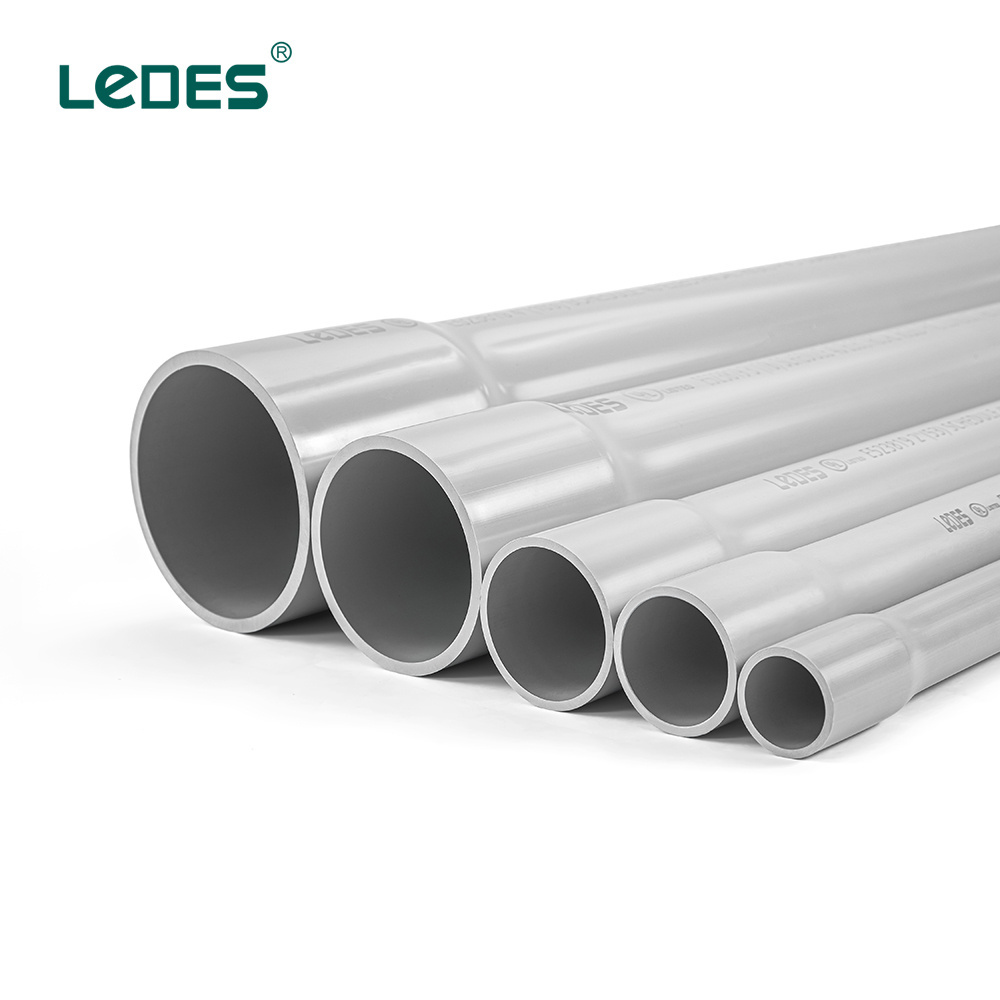

Product name:
-
Sch 40 PVC Pipe
-
Specification:
-
1/2'' to 8''
-
Length:
-
10 feet or 20 feet
-
Thickness:
-
UL Standard
-
End Type:
-
Belled end or plain end
-
Color:
-
Grey
-
Feature:
-
Flame Resistant
-
Ageing resistance:
-
Sunlight
-
Certificate:
-
UL and CSA certificate
-
Application:
-
Aboveground and underground
Quick Details
-
Type:
-
Heat Shrinkable
-
Material:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEDES
-
Model Number:
-
SCH40-03
-
Product name:
-
Sch 40 PVC Pipe
-
Specification:
-
1/2'' to 8''
-
Length:
-
10 feet or 20 feet
-
Thickness:
-
UL Standard
-
End Type:
-
Belled end or plain end
-
Color:
-
Grey
-
Feature:
-
Flame Resistant
-
Ageing resistance:
-
Sunlight
-
Certificate:
-
UL and CSA certificate
-
Application:
-
Aboveground and underground
|
Name Of Commodity :
|
Schedule 40 Electrical Conduit Pipe
|
|
Raw Material :
|
PVC
|
|
Certification:
|
UL/CSA Certified
|
|
Trade Size :
|
1/2'', 3/4'', 1'', 1 1/4'',1 1/2'', 2'', 2 1/2'', 3'', 3 1/2'', 4'' , 5'' , 6'',8''
|
|
Length :
|
10 FT / 20 FT
|
|
Thickness :
|
See Table 2 Shown As Below
|
|
Color :
|
Grey
|
|
Application :
|
Approved For Underground And Above Ground
|
|
Feature :
|
Flame Resistance,UV Resistance,Corrosion Resistance ,ect
|
TABLE 2 - WALL THICKNESS
|
Trade Size
|
Outside Diameters ( inch - mm )
|
|
Minimum Wall Thickness ( inch - mm )
|
|
||
|
inch - mm
|
Maximum
|
Minimum
|
Schedule 40
|
Schedule 80
|
||
|
1/2 - 16
|
0.848 - 21.54
|
0.832 - 21.13
|
0.109 - 2.77
|
0.147 - 3.73
|
||
|
3/4 -21
|
1.060 - 26.92
|
1.040 - 26.42
|
0.113 - 2.87
|
0.154 - 3.91
|
||
|
1 - 27
|
1.325 - 33.66
|
1.305 - 33.15
|
0.133 - 3.38
|
0.179 - 4.55
|
||
|
1-1/4 - 35
|
1.672 - 42.47
|
1.648 - 41.86
|
0.140 - 3.56
|
0.191 - 4.85
|
||
|
1-1/2 - 41
|
1.912 - 48.56
|
1.888 - 47.96
|
0.145 - 3.68
|
0.200 - 5.08
|
||
|
2 - 53
|
2.387 - 60.63
|
2.363 - 60.02
|
0.154 - 3.91
|
0.218 - 5.54
|
||
|
2-1/2 - 62
|
2.890 - 73.41
|
2.860 - 72.64
|
0.203 - 5.16
|
0.276 - 7.01
|
||
|
3 - 78
|
3.515 - 89.28
|
3.485 - 88.52
|
0.216 - 5.49
|
0.300 - 7.62
|
||
|
3-1/2 - 91
|
4.050 - 102.87
|
3.950 - 100.33
|
0.226 - 5.74
|
0.318 - 8.08
|
||
|
4 - 103
|
4.550 - 115.57
|
4.450 - 113.03
|
0.237 - 6.03
|
0.337 - 8.56
|
||
|
5 - 129
|
5.613 - 142.57
|
5.513 - 140.03
|
0.258 - 6.55
|
0.375 - 9.52
|
||
|
6 - 155
|
6.675 - 169.54
|
6.575 - 167.00
|
0.280 - 7.11
|
0.432 - 10.97
|
||
GOOD PERFORMANCE
-
Non-conductive And
Non-corrosive
- Impact Resistant
- Sunlight Resistant
- Fire Retardant -
V0 Fire Rated.
-
Chemical resistance
- Compression Resistance
STRICT QUALITY
- UL and CSA Certified
-
PVC Material Test: ASTM D1784-20
- Smooth Interior And Outside.
-
Uniform Wall Thickness
-
100%
Environmental
Raw Materials
- Permanent Markings
WIDE APPLICATION
- Exposed or Concealed (plasterboard or cavity wall)
-
Concrete or
Buried Underground
- Indoor or Outdoor
CUSTOMIZABLE
- Company Industry Experience (15 Year)
- Support Customized Products,Packaging and Mould.
- Direct Factory Will Supply You Competitive Price.
Normal Packaging :
Our Factory Has Passed :
- ISO 9001 Quality System Certification.
- ISO 14001 Environmental Management System Certification.
- SGS, ROSH, CNAS, CE, IEC Certification ...
Please do not hesitate to contact us for more details of the certifications if you need !! Thank you.
We are one of the most professional
manufacturers of electrical plastic conduits and accessories in China,
specializing
in
the development and production of innovative conduits and accessories for cable management and protection.
the development and production of innovative conduits and accessories for cable management and protection.
Our plants are in Dongguan City(China) and Lechang City (China), occupy more than 100,000 square meters. We have over 300 skilled
employees, 50 modern manufacturing injection and extruder machines.
There are six series of products as below :
UL Listed SCH 40&SCH80, DB120, UL Listed ENT, Type A
- Canadian Standard Electrical Conduit
CSA certified Rigid PVC Conduit &DB2 duct, CUL listed ENT
- Low Smoke And Halogen Free Conduit & Fittings
- Solar Conduit & Fittings
- AS/NZS 2053 Conduit & Fittings
- BS Conduit & Fittings
We have exported these items to Europe and America, Australia for many years, and now expanding to global world markets day by day. Hopehead can also support OEM&ODM service.
1.What is your MOQ ?
Depend on your order (different kinds of items have different MOQ )
Depend on your order (different kinds of items have different MOQ )
2. What is your delivery time ?
Normally, the time of delivery duration is around 15-30 days.
Normally, the time of delivery duration is around 15-30 days.
3. What is the shipping port ?
We ship the goods via Shenzhen Port, Guangzhou Port.
We ship the goods via Shenzhen Port, Guangzhou Port.
4. What is your payment term ?
We accept T/T or L/C.
We accept T/T or L/C.
5. How should I contact you ?
You can contact us with Trade Manager or send us an email.
You can contact us with Trade Manager or send us an email.
6. How about the samples ?
Our samples are free . We could send you the sample, most samples are free to send to most places.
Our samples are free . We could send you the sample, most samples are free to send to most places.
