Quick Details
-
Size:
-
customized
-
Place of Origin:
-
Shandong, China
-
Axle:
-
13/16 Ton
-
Tire:
-
11.00r20 12r22.5 315 385
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Suspension System:
-
Mechanical Spring + Air Suspension System
-
Color:
-
Custom's Requirement
-
Main Beam:
-
T700/Q345 Steel
-
Tire Brand:
-
Triangle/double coin/Bridgestone
-
Condition:
-
Brand-new
-
Landing Gear:
-
JOST Brand Two-speed
-
Axle Brand:
-
BPW FUWA
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
>30000 kg
-
Brand Name:
-
GJ
-
Size:
-
customized
-
Place of Origin:
-
Shandong, China
-
Axle:
-
13/16 Ton
-
Tire:
-
11.00r20 12r22.5 315 385
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Suspension System:
-
Mechanical Spring + Air Suspension System
-
Color:
-
Custom's Requirement
-
Main Beam:
-
T700/Q345 Steel
-
Tire Brand:
-
Triangle/double coin/Bridgestone
-
Condition:
-
Brand-new
-
Landing Gear:
-
JOST Brand Two-speed
-
Axle Brand:
-
BPW FUWA
Shandong Champion Trade Co.,Ltd. is one subsidiary of Champion vehicle group.Champion Vehicle Group has
more than 20 years
of experience in trailer production, with main products including oil tank semi trailer, powder material semi trailer, dump semi trailer, flatbed semi trailers, lowbed semi trailer,sidewall semi trailer etc.Our factory has passed
ISO9001
quality system certification. Our cooperation can be
ODM or OEM
mode
.
please contact us.
Product Paramenters
|
Specification
|
|
|
|
|||
|
|
20FT
|
40FT
|
53FT
|
|||
|
Dimension
|
6.1m×2.5m×1.55m
|
12.5m×2.5m×1.55m
|
16.2m×2.5m×1.55m
|
|||
|
Payload
|
40T
|
50T
|
60T
|
|||
|
Tare weight
|
About 4.5T
|
About 7T
|
About 8T
|
|||
|
Twist lock
|
4uints
|
12uints
|
12uints
|
|||
|
Axle
|
2 axles
|
2 axles/3 axles/4 axles
|
3 axles/4 axles
|
|||
|
Chassis
|
|
|
|
|||
|
Main beam
|
Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
|
|
|
|||
|
Frame Beam
|
Top Flange 14mm,width 140mm; Middle Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 480mm
|
|
|
|||
|
Axle
|
13ton Fuwa,BPW, etc.
|
|
|
|||
|
Landing Gear
|
28T lifting capacity with two speed
|
|
|
|||
|
King Pin
|
2.00 or 3.5 inch bolt-in king pin ;Optional brand:JOST
|
|
|
|||
|
Suspension
|
Mechanical suspension reinforced type
|
|
|
|||
|
Leaf Spring
|
90mm(W)*13mm(T)*10 Layer
|
|
|
|||
|
Pneumatic Braking System
|
Dual line pneumatic brake system,T30 air chamber ,40L air tanks, Emergency relay valve
|
|
|
|||
|
Rim
|
9.0-20*12 pcs
|
|
|
|||
|
Tire
|
12R22.5*12 pcs
|
|
|
|||
|
Accessories
|
One standard tool box
|
|
|
|||
|
Spare tire rack
|
One
|
|
|
|||
|
Electrical system
|
24 volt electrical system.7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. rear lights
conform to European standard, rear front and side reflectors |
|
|
|||
|
Packing and shipping
|
|
|
|
|||
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
|
|
|
|||

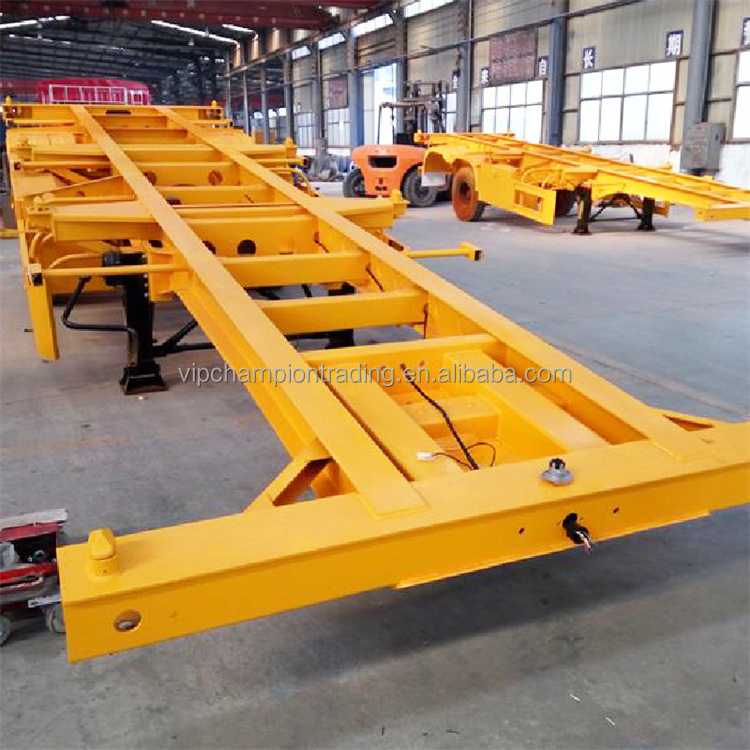

Details Images
