Quick Details
-
Model Number:
-
GPT200
-
Material:
-
stainless steel
-
Accuracy:
-
0.25%
-
Products:
-
Hydraulic Pressure Sensor
-
Pressure range:
-
-100kPa~0...0~10kPa...100MPa
-
pressure type:
-
gauge (G), absolute (A), sealed gauge (S)
-
output signal:
-
4~20mA ,0~5Vdc ,1~5Vdc ,0~10Vdc ,0.5~4.5Vdc optional
-
power supply:
-
12~36Vdc , 5Vdc optional
-
accuracy:
-
0.25%FS(typ.) 0.5%FS(max.)
-
electrical interface:
-
DIN43650,option1.5m cable connection
-
pressure interface:
-
M20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT (customer request)
-
material of pressure membrane:
-
316L stainless steel
-
oem:
-
acceptable
Quick Details
-
Warranty:
-
18months
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
GAMICOS
-
Model Number:
-
GPT200
-
Material:
-
stainless steel
-
Accuracy:
-
0.25%
-
Products:
-
Hydraulic Pressure Sensor
-
Pressure range:
-
-100kPa~0...0~10kPa...100MPa
-
pressure type:
-
gauge (G), absolute (A), sealed gauge (S)
-
output signal:
-
4~20mA ,0~5Vdc ,1~5Vdc ,0~10Vdc ,0.5~4.5Vdc optional
-
power supply:
-
12~36Vdc , 5Vdc optional
-
accuracy:
-
0.25%FS(typ.) 0.5%FS(max.)
-
electrical interface:
-
DIN43650,option1.5m cable connection
-
pressure interface:
-
M20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT (customer request)
-
material of pressure membrane:
-
316L stainless steel
-
oem:
-
acceptable
Recommend Products

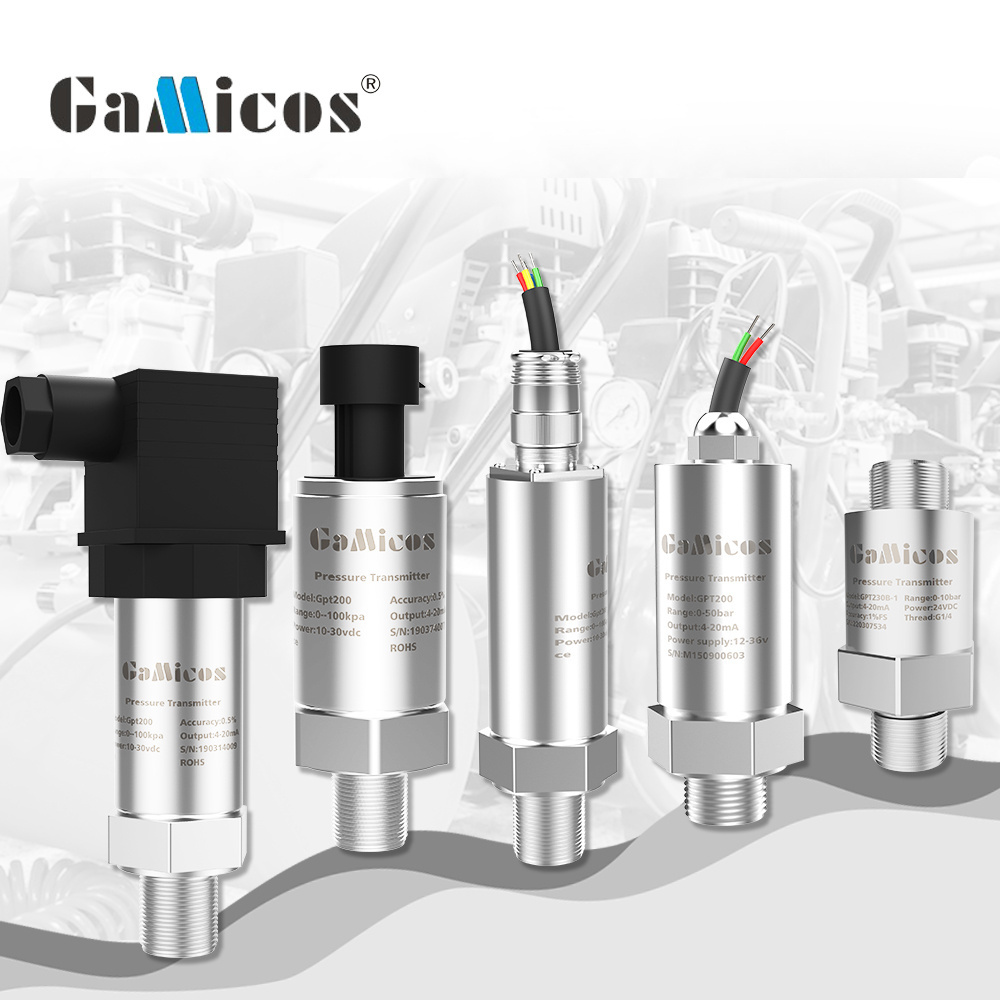

Products Description
GPT200
is a
piezoresistive pressure transducer
, using an imported isolation film piezoresistive sensor, the sensor is
automatically tested and temperature compensated by laser resistance adjustment technology, the international standard signal 4-20mA or 0-5V output, with small size and light weight , Good long-term stability, widely used in the pressure measurement and control fields of aviation, aerospace, metallurgy, chemical industry, machinery, petroleum, food, medicine and other industries.
automatically tested and temperature compensated by laser resistance adjustment technology, the international standard signal 4-20mA or 0-5V output, with small size and light weight , Good long-term stability, widely used in the pressure measurement and control fields of aviation, aerospace, metallurgy, chemical industry, machinery, petroleum, food, medicine and other industries.
