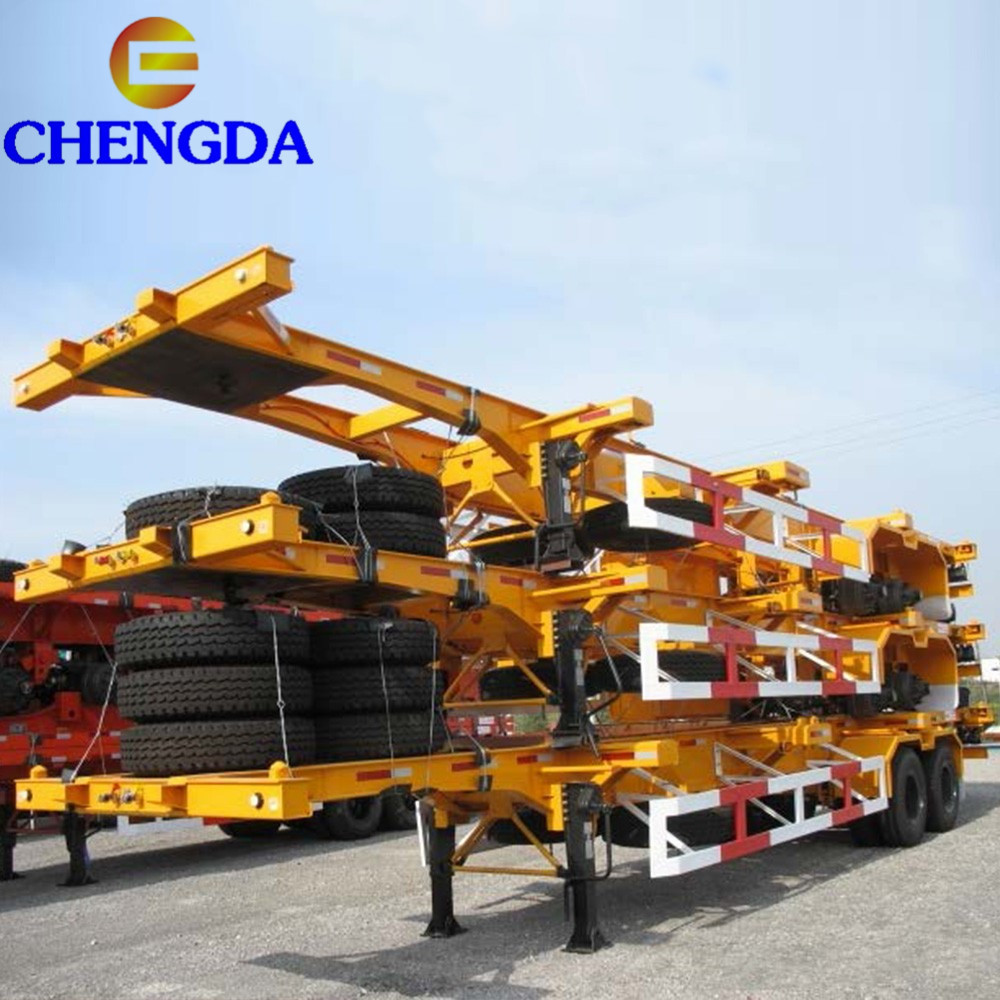

Transport 20 foot 40 ft container chassis skeleton trailer manufacturers in china

Transport 20 foot 40 ft container chassis skeleton trailer manufacturers in china

FOB Reference Price: Get Latest Price

≥1 Pieces

US $6000

≥10 Pieces

US $4000

≥100 Pieces

US $2000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Size:: 12500*2500*1550mm

Place of Origin:: Shandong, China

Product name:: Skeleton Semi Trailer

Function:: Transport 20ft 40ft Container

Suspension:: Mechanical Suspension

Twist Locks:: 12pieces

Axle:: 13/16 Ton Fuwa/BPW/CIMC

Landing Gear:: Standard 28Ton

King pin:: 2"(50mm)or3.5"(90mm) JOST

Tire:: 12R22.5

Color:: Customers Optional

Certification:: BV,WMI,ISP9001

Quick Details

Type:: Semi-Trailer

Max Payload:: 100tons

Brand Name:: Chengda trailer

Size:: 12500*2500*1550mm

Place of Origin:: Shandong, China

Product name:: Skeleton Semi Trailer

Function:: Transport 20ft 40ft Container

Suspension:: Mechanical Suspension

Twist Locks:: 12pieces

Axle:: 13/16 Ton Fuwa/BPW/CIMC

Landing Gear:: Standard 28Ton

King pin:: 2"(50mm)or3.5"(90mm) JOST

Tire:: 12R22.5

Color:: Customers Optional

Certification:: BV,WMI,ISP9001

Transport 20 foot 40 ft container chassis skeleton trailer manufacturers in china

1. Using containers to transfer goods can be directly loaded in the consignor’s warehouse and transported to the consignee’s warehouse for unloading. There is no need to take the goods out of the container for reloading when changing vehicles or ships midway.

2. It can be quickly loaded and unloaded, and it can be directly and conveniently changed from one kind of transportation to another.

Product Description

Specification

Trailer Model	3 Axle flatbed Container Semi Trailer
Overall Dimension(mm)	12500mm2500mm1600mm
Loading Weight( KG)	40000kg
Axle Brand	3*13TON Axle FUWA Brand
Suspension system	Mechanical Leaf Spring Suspension
The material of Main beam	Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm.
Platform plate	3mm Diamond plate
Container Twist Locker	12pcs container lock
Tire Type and quantity	12R22.5 12units
Rim	9.00-22.5
Traction Pin	2” or 3.5”
Spare Wheel Bracket	2 pieces
Tool Box	1 Standard
Landing Gear	28ton single action supporting legs
Brake system	Dual Line braking system
Brake air chamber	Six double chamber
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
		Tail lamp with turn signal, brake light & reflector, side lamp etc.
		One set 6-core standard Cable.

Details Images

Picture 1: Tool box with the lock to avoid loss of the tools and spare parts. Picture 2: Landing gear is heavy duty 28tons double speed which is easy operation and durable in use. Picture 3: The tires is wearproof and high temperature resistance selected specially for the Africa road conditions. Picture 4: The axles is the China best heavy duty FUWA brand axles tested by the market more than 10 years which is stable and durable in use. Picture 5: API valve. Picture 6:We will provide the trailer spare parts list and some easy broken parts with the tankers.

Packing & Delivery

Shipment of Our container chassis skeleton trailer

1. By Container : Price is usually the lowest . Capacity below 40 CBM

2. By Bulk Ship / RO-Ro Ship / Flat Rack

3. By RO-Ro ship : Pirce is high but protect the trailer very well

It is convenient to fill and unload the goods to meet the individual needs of customers. According to customer needs, tooling
guarantee, stable quality and reliable performance.

Exporting Record

15 units flatbed trailer export to tanzanite

10 units flatbed trailer export to ghana

certificate

Advantage:

1:Over 16 Years'Foreign Trade Experience

2:Rich experience in sea transportation

3:Professional and enthusiastic foreign trade salesman

4. Factory directly sale
