Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Optical Valley Laser
-
Dimension(L*W*H):
-
800*500*250mm
-
Weight (KG):
-
95 KG
-
Core Components:
-
laser source
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
marking machinesource:
-
JPT, Raycus
-
Galvenometer:
-
Sino-galvo SG2206/ZBTK
-
marking machine Speed:
-
7000mm/s
-
marking Depth:
-
0.01-4mm
-
marking machine Accuracy:
-
0.002mm
-
Fiber laser source lifespan:
-
80,000-100,000 hours
-
Marking Area:
-
50mm*50mm--- 300mm*300mm
-
Payment term:
-
TT, Paypal, Credit card
Quick Details
-
Engraving Area:
-
300*200mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
7000mm/s
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Optical Valley Laser
-
Dimension(L*W*H):
-
800*500*250mm
-
Weight (KG):
-
95 KG
-
Core Components:
-
laser source
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
marking machinesource:
-
JPT, Raycus
-
Galvenometer:
-
Sino-galvo SG2206/ZBTK
-
marking machine Speed:
-
7000mm/s
-
marking Depth:
-
0.01-4mm
-
marking machine Accuracy:
-
0.002mm
-
Fiber laser source lifespan:
-
80,000-100,000 hours
-
Marking Area:
-
50mm*50mm--- 300mm*300mm
-
Payment term:
-
TT, Paypal, Credit card

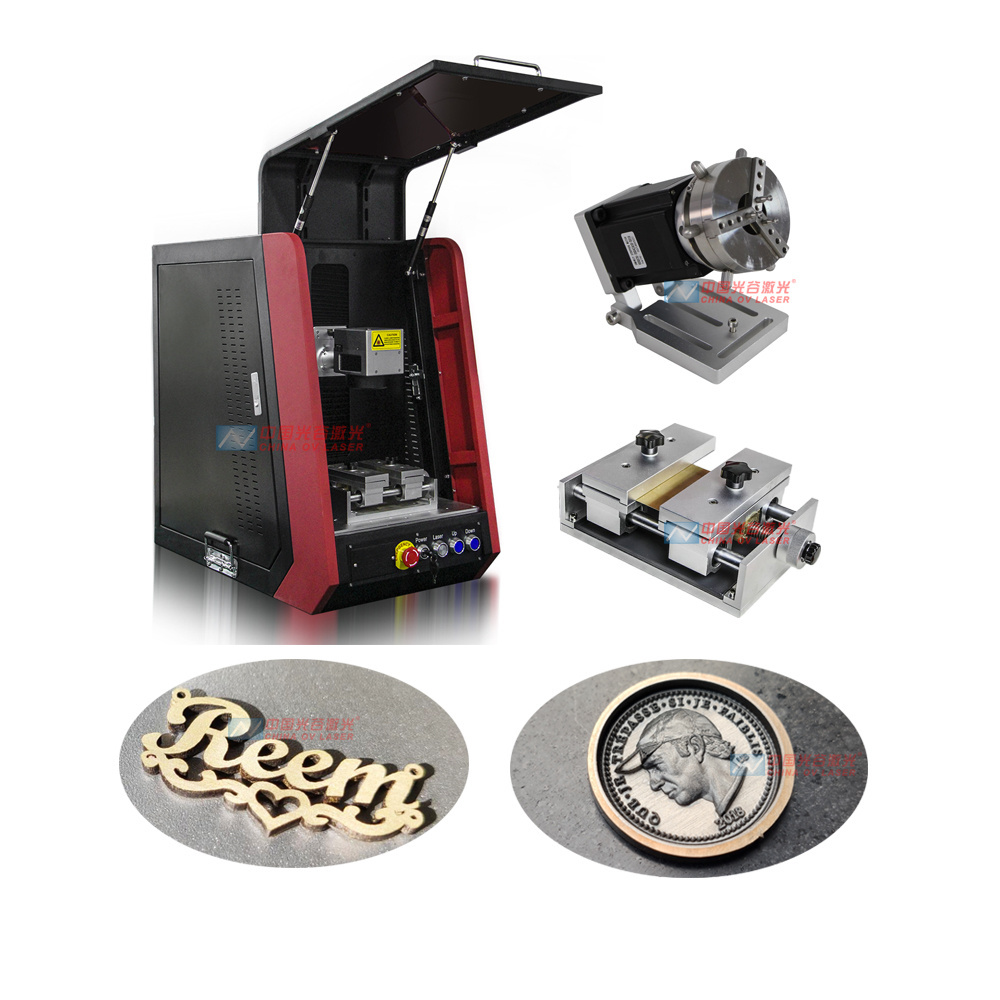

Small mini laser machine gold 30w 50w jewelry laser engraver engraving fiber laser marking machine silver 60w 80w 100w
Please kindly contact Wendy to know more details and best price
Tel / whatsapp no./ WeChat : + 86 13307107836
Main Features
1) Superior laser beam and uniform power density, stable laser power.
2) Quick speed without deviation, small volume, good stability, performance reached the international advanced level.
3) Enclosed design, environmental protection
4) High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
5) Mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
| Laser Wavelength | 1064nm |
| Optional Marking Area | 50mm*50mm / 100mm*100mm / 200mm*200mm / 300mm*300mm |
| Minimum Line Width | 0.015mm |
| Minimum Character | 0.2mm |
| Repeated Precision | ±0.003mm |
|
Controller (Software--EzCad) |
JCZ from China |
| Life-span of Fiber Laser Module | 100000-200000 hours |
| Beam Quality | M2 <1.6 |
| Focus Spot Diameter | <0.01mm |
| Power Stability (8h) | <±1.5%rms |
| System Operation Environment | Windows XP / Windows 7 / Windows 8 / Windows 10 |
| Cooling Mode | Air cooling--Built-in |
| Working Temperature | 0℃~40℃ |
| Voltage | 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH |
| Power Requirement | <500W |
| Computer Requested | There will be one PC with the machine |
| Dimension (L*W*H) | 750mm*200mm*500mm |
| Package Size | 850mm*300mm*600mm |
| Net Weight | 80KG |
| Gross Weight | 95KG |
|
Optional (Not free of charge) |
Rotary Device, Moving Table, other customized Automatic Matching System |
