Quick Details
-
Weight:
-
2700 KG
-
Product name:
-
Agricultural Tractor
-
Model:
-
TB804,TB904
-
trademark:
-
JIULIN or OEM
-
specification:
-
3900*1795*2300MM
-
color:
-
Red, Green, Blue
-
Implements:
-
loader, backhoe, PTO implements
-
Lift type:
-
more than 10 years
-
engine:
-
4Cylinder Diesel Engine
-
price of backhoe:
-
usd2250
-
tractor price:
-
contact Vivien
Quick Details
-
Brand Name:
-
JIULIN
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
Quanchai
-
Weight:
-
2700 KG
-
Product name:
-
Agricultural Tractor
-
Model:
-
TB804,TB904
-
trademark:
-
JIULIN or OEM
-
specification:
-
3900*1795*2300MM
-
color:
-
Red, Green, Blue
-
Implements:
-
loader, backhoe, PTO implements
-
Lift type:
-
more than 10 years
-
engine:
-
4Cylinder Diesel Engine
-
price of backhoe:
-
usd2250
-
tractor price:
-
contact Vivien

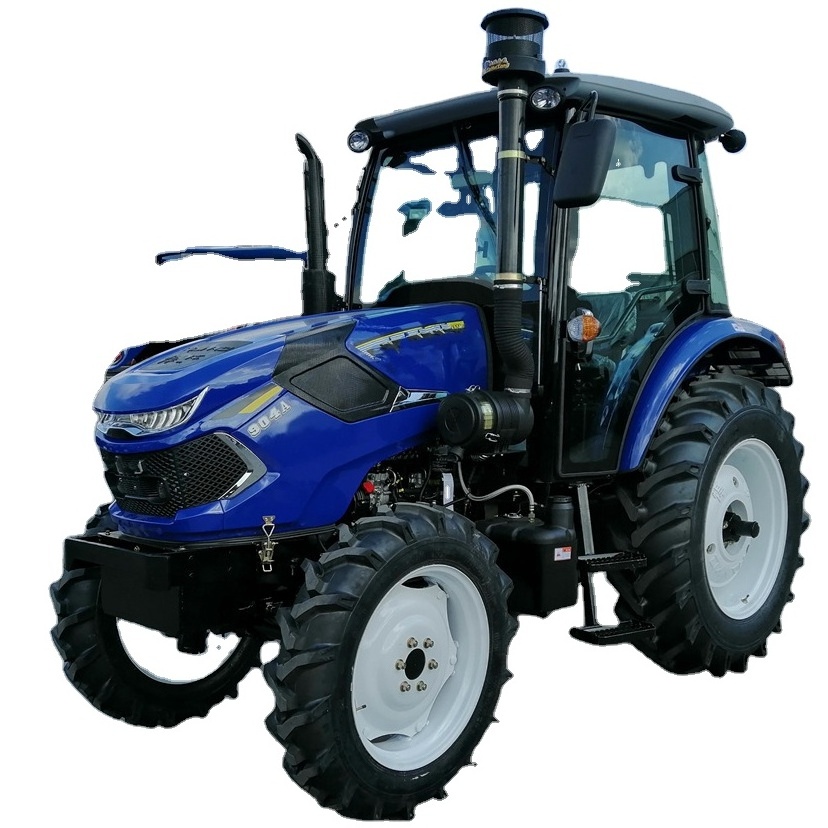

high grade 80hp 90hp 4*4wd farm wheel tractor
JIULIN 904A
Tiger 70-90 series
HOT SALE technical features:
1. Adopt famous 4-cylinder turbocharger, powerful, fuel-efficient and energy conservation;
2. 12+12 transmission, which can realize more shifts switch, able to meet different operation speeds requirements;
3. Position mix controlled hydraulic system, enlarge tractor lifting force, able to meet marching with large implements requirements;
4. Air-conditioning cabin, increased manipulation comfort.
|
Main parameters |
|
|
Type |
904A |
|
Drive type |
4×4 four-wheel drive |
|
Engine |
|
|
Engine Brand |
QUANCHAI |
|
Engine Type |
4C6-90U32 |
|
Fuel tank capacity L |
80L |
|
Rating power of engine KW/RPM |
66.2/2400 |
|
Fuel consumption @ nominal power (g/kw.h) |
- |
|
Air Intake Type |
Naturally Aspirated |
|
Displacement L |
- |
|
Air filter type/size |
oil bath optional dry air filter |
|
Torque reserve |
- |
|
Transmission system |
|
|
Clutch type/size |
One-piece , dry , double-action/11 inches |
|
No. of gears (F+R) |
12F+12R |
|
Shift method |
mechanical sleeve |
|
Max. speed |
34.85km/h |
|
Gear position |
side position |
|
Hydraulic system |
|
|
Hydraulic output flow rate (L / MIN) |
42 |
|
Hydraulic output valve |
Three groups |
|
Hydraulic filter types and capacity |
- |
|
Working device |
- |
|
Three-point-linkage |
2 Type |
|
PTO Speed |
540/760 540/1000 |
|
Lifting Capacity (kn) |
- |
|
Tillage depth adjustment |
position,float,draft,draft mix control |
|
Parameter |
|
|
The whole machine size (dimensions) mm |
4000×1900 ×2610 |
|
Min. operation mass |
3000 |
|
Wheel base (mm) |
2072 |
|
Mini turning Radius (m) |
4.9 |
|
Rated traction force(N) |
18.1 |
|
Minimum ground clearance (mm) |
370 |
|
Air conditioning cab |
Optional |
|
Front/rear wheel tread |
1300,1410/1550/1300-1700 |
|
tyre size |
8.3-24/14.9-30 9.5-24/16.9-30 |
|
Braking and steering |
|
|
Braking system |
hydrostaticpedal control,disc brake, |
|
Steering type |
hydraulic steering |
|
Steering Angle (4 x4) |
Front axle Max.Steering angle 45° |
|
(options: all these types can Optional for swing drawbar, front/rear ballast) |
|
