Quick Details
-
Brand Name:
-
HIMALAYA
-
Place of Origin:
-
Chongqing, China
-
Model Number:
-
HL110PL
-
Engine:
-
4 Stroke Air-cooled
-
Brake System:
-
F:drum Brake R:drum Brake
-
Transmission:
-
Chain Drive
-
Starting system:
-
Electric+kick Start
-
Clutch Type:
-
automatic clutch
-
Color:
-
Customize
-
Product Name:
-
HL110PL
-
size:
-
1940*680*1050
-
Fuel Tank:
-
3.5L
-
Port:
-
chongqing
Quick Details
-
Displacement:
-
100-200CC
-
Max. Speed:
-
61 - 80km/h
-
Motor:
-
Other
-
Brand Name:
-
HIMALAYA
-
Place of Origin:
-
Chongqing, China
-
Model Number:
-
HL110PL
-
Engine:
-
4 Stroke Air-cooled
-
Brake System:
-
F:drum Brake R:drum Brake
-
Transmission:
-
Chain Drive
-
Starting system:
-
Electric+kick Start
-
Clutch Type:
-
automatic clutch
-
Color:
-
Customize
-
Product Name:
-
HL110PL
-
size:
-
1940*680*1050
-
Fuel Tank:
-
3.5L
-
Port:
-
chongqing

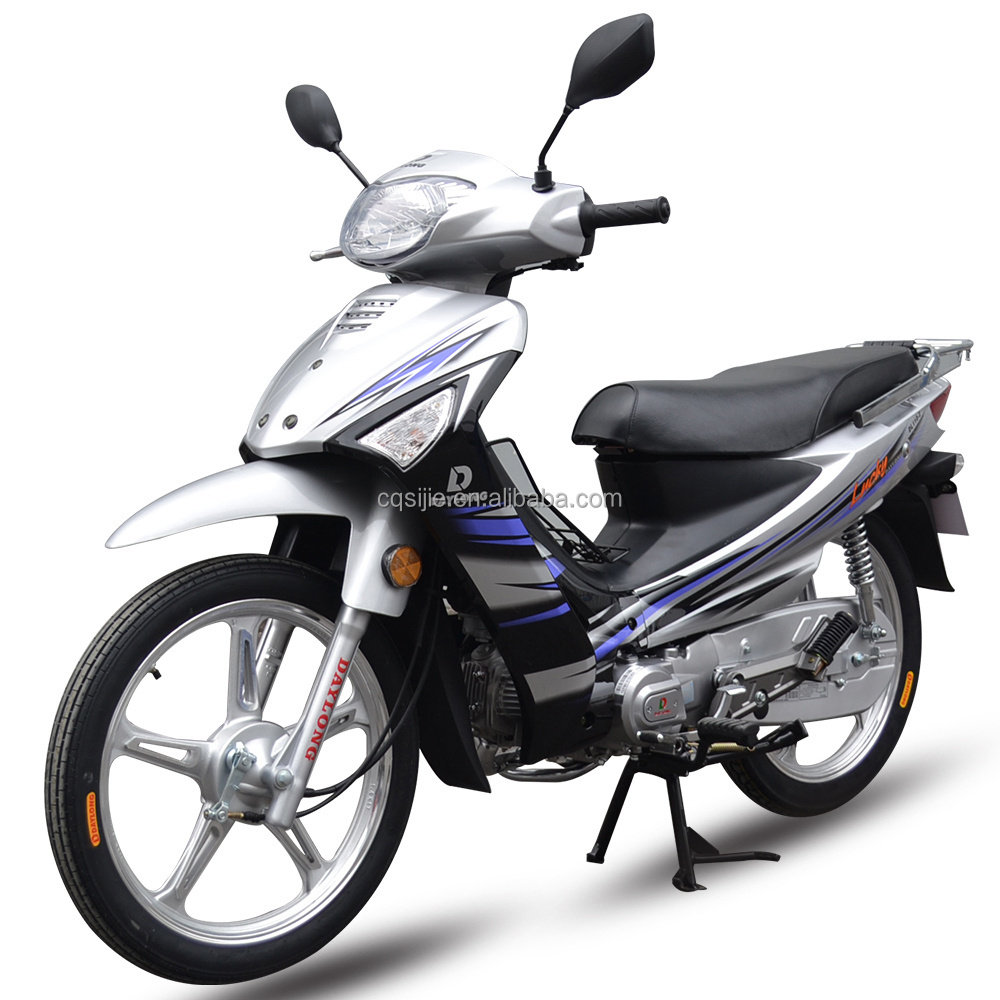

Product Description
| ENGINE | CHASSIS | ||
| Engine Type | 110cc double clutch | Front Brake | Drum brake |
| Displacement(ml) | 107 | Rear Brake | Drum brake |
| Bore×Stroke(mm) | 65.5×66.2 | Front Tire | 2.50-17 |
| Compression Ratio | Rear Tire | 2.75-17 | |
| Max.Power(kw/r/min) | 4.6 | Battery | 12V5Ah |
| Max.Torque(N.m/r/min) | 6.9 | ||
| Max.Speed(Km/h) | 75 | DIMENSION | |
| Lubrication | Pressure,splash | L×W×H(mm) | 1940*680*1050 |
| Clutch Type | automatic | Seat Height | 750 |
| Iginition | CDI | Wheelbase(mm) | 1360 |
| Starting System | Electric | Min.Ground Clearance(mm) | 174 |
| Transmission | 4 gear,non cyclical(High-grade protect) | Max.Permissionable Weight(kg) | 275 |
| Rider Capacity | 2 persons | ||
| PACKING | Net Weight | 93 | |
| Packing Size(mm) | 1680*380*860 | Engine Oil Volume(L) | 1L |
| Packing Weight(kg) | 118 | Fuel Tank Capacity | 3.5L |
| Container loading Capacity | 126sets/40HQ in SKD/CBU | ||
