- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
463*205*226cm
-
Engine Capacity:
-
National
-
Product name:
-
Mobile Concrete Mixer Tank
-
Engine:
-
Diesel/Electric/Gasoline
-
Color:
-
Customer's Requirement
-
Mixing capacity:
-
1.5-12CBM
-
Tilt angle:
-
16°
-
Speed:
-
0-12r/min
-
Start Method:
-
Electric start
-
Keywords:
-
Concrete Mixer tank
-
Driving type:
-
4 Wheel Driver
-
Application:
-
Construction Engineering
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Henan, China
-
Weight:
-
2060 kg
-
Dimension(L*W*H):
-
463*205*226cm
-
Engine Capacity:
-
National
-
Product name:
-
Mobile Concrete Mixer Tank
-
Engine:
-
Diesel/Electric/Gasoline
-
Color:
-
Customer's Requirement
-
Mixing capacity:
-
1.5-12CBM
-
Tilt angle:
-
16°
-
Speed:
-
0-12r/min
-
Start Method:
-
Electric start
-
Keywords:
-
Concrete Mixer tank
-
Driving type:
-
4 Wheel Driver
-
Application:
-
Construction Engineering
Product Description

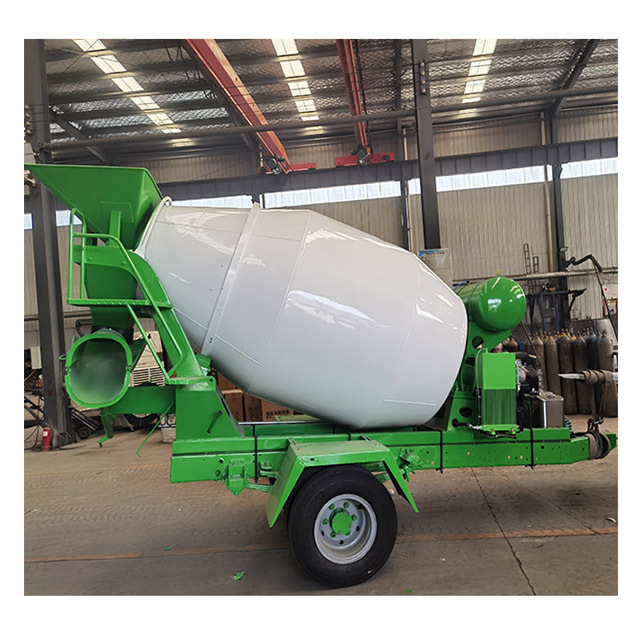

CONCRETE MIXER TANK
Concrete mixer tank is a special rotating container that continuously agitates or mixes concrete during transportation. Mainly used for transporting concrete between premixed concrete factories and construction sites. Our concrete mixer tank can be equipped with trailers, trucks, and tricycles. It can also be equipped with diesel gasoline electric power for individual use. Capacity, color, and logo can be customized according to customer requirements.
Concrete Mixer Tank.
Structure
Various Models
|
Model
|
2CBM
|
3CBM
|
5CBM
|
7CBM
|
10CBM
|
12CBM
|
|||||
|
Effective Volume
|
2m³
|
3m³
|
5m³
|
7m³
|
10m³
|
12m³
|
|||||
|
Feeding
Speed
|
≥3m³/min
|
|
|
|
|
|
|||||
|
Discharge
Speed
|
≥2m³/min
|
|
|
|
|
|
|||||
|
Can Body
Thickness
|
4mm
|
4mm
|
5mm
|
5mm
|
5mm
|
5mm
|
|||||
|
Can Body Diameter
|
1550mm
|
1750mm
|
2050mm
|
2200mm
|
2150mm
|
2400mm
|
|||||
|
Water Tank Volume
|
200L
|
200L
|
200L
|
350L
|
350L
|
400L
|
|||||
|
Overall Size（cm）
|
351*155*178
|
404*175*216
|
463*205*226
|
502*215*244
|
608*220*265
|
780*240*273
|
|||||
|
Total Weight
|
1215kg
|
1375kg
|
2060kg
|
2420kg
|
3800kg
|
4100kg
|
|||||
Product details
Feed hopper
Hopper size supports customization,
perfect welding process.
Hydraulic oil radiator
Filter impurities,cooling down,
exhaust air.
Hydraulic system
The machine includes a hydraulic system, and the international brand SUNNY hydraulic system is also available. Good quality and
high efficiency.
Motor type
The concrete pump can be used with electric, gasoline and diesel power, and can also be directly installed on the truck for use.
Product Display
Applications
Packing&Delivery
