Quick Details
-
Rated Lifting Moment:
-
kn
-
Max. Lifting Height:
-
9 m
-
Span:
-
2.8 m- 9 m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
China Coal Group
-
Showroom Location:
-
no
-
Specification:
-
2.95t
-
Maximum working radius:
-
7.8m * 0.2t
-
Maximum ground lift:
-
9.2m*0.8t
-
Hook up speed:
-
0-8m/min
-
Wire Rope Specifications:
-
8mm*45m
-
Boom form:
-
5 -section boom , U-shaped high-strength manganese
-
Boom length/time:
-
2.8 m- 8.2 m/2 2 sec
-
Boom angle/time:
-
0-7 5 °/13sec
-
Rotation angle/speed:
-
0-360° (continuous)/60sec
-
Outrigger Action Form:
-
Manual unscrewing + hydraulic automatic support (two legs)
Quick Details
-
Weight (KG):
-
3000
-
Application:
-
Construction works
-
Rated Loading Capacity:
-
3ton
-
Rated Lifting Moment:
-
kn
-
Max. Lifting Height:
-
9 m
-
Span:
-
2.8 m- 9 m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
China Coal Group
-
Showroom Location:
-
no
-
Specification:
-
2.95t
-
Maximum working radius:
-
7.8m * 0.2t
-
Maximum ground lift:
-
9.2m*0.8t
-
Hook up speed:
-
0-8m/min
-
Wire Rope Specifications:
-
8mm*45m
-
Boom form:
-
5 -section boom , U-shaped high-strength manganese
-
Boom length/time:
-
2.8 m- 8.2 m/2 2 sec
-
Boom angle/time:
-
0-7 5 °/13sec
-
Rotation angle/speed:
-
0-360° (continuous)/60sec
-
Outrigger Action Form:
-
Manual unscrewing + hydraulic automatic support (two legs)
Products Description
Introduction of Big Promotion Indoor Class Spider Crane With 360 Degree Rotation 3T Municipal Building Construction Lifting Spider Cranes
The price of the spider crane is calculated according to the configuration of the car. The spider crane is miniature design, small in size and strong in lifting capacity. Reasonable design, simple operation, easy to learn and understand, zero work pressure. Use wireless remote control or body switch to operate, the operation is fast. Say goodbye to the era of narrowly relying on human work, which not only improves work efficiency but also ensures work safety. The spider crane adopts rubber crawler type hydraulic traveling device, and the hoisting, telescopic, heave and rotation devices are all driven by hydraulic pressure. The whole machine adopts the design and optimization concept of 3D modeling, finite element analysis and whole machine calculation. It has the advantages of good flexibility, convenient operation, compact structure, light and flexible operation, reliable use, and convenient maintenance. This machine is suitable for working in narrow places where large cranes cannot be deployed. This is one of the most popular applications of spider cranes, which can shorten construction periods and reduce costs by avoiding the use of expensive tower cranes.zmwm14
The spider crane is a supplement to the traditional crane, which solves some hoisting and construction problems in special environments and complex spaces. With excellent accessibility, the safety and efficiency of the operation are significantly improved. With the development and progress of society, hoisting and handling are becoming more and more mechanized, and more and more commercial plazas are rising. Spider crane rental can move and transform in a small space, and let the machinery help us to complete the hoisting and handling smoothly.
Product Paramenters
Parameter of Big Promotion Indoor Class Spider Crane With 360 Degree Rotation 3T Municipal Building Construction Lifting Spider Cranes
|
Specification
|
|
2.95t
|
|
|
Maximum working radius
|
|
7.8m * 0.2t
|
|
|
Maximum ground lift
|
|
9.2m*0.8t
|
|
|
Max underground lift
|
|
---
|
|
|
winch
|
Hook up speed
|
0-8m/min
|
|
|
|
Wire Rope Specifications
|
Φ8mm*45m
|
|
|
Telescopic device
|
Boom form
|
5 -section boom , U-shaped high-strength manganese
|
|
|
|
Boom length/time
|
2.8 m- 8.2 m/2 2 sec
|
|
|
undulating device
|
Boom angle/time
|
0-7 5 °/13sec
|
|
|
gyratory device
|
Rotation angle/speed
|
0-360° (continuous)/60sec
|
|
|
outrigger
|
Outrigger Action Form
|
Manual unscrewing + hydraulic automatic support (two legs)
|
|
|
|
Maximum extension (mm)
|
4010 (long) X 3260 (rear) , (front)
|
|
|
walking device
|
way of walking
|
Hydraulic motor drive, two-speed
|
|
|
|
Walking speed
|
0-2.5km/h
|
|
|
|
Gradeability
|
20° (36%)
|
|
|
motor
|
Voltage
|
AC380V
|
|
|
engine
|
Producer
|
Chang Chai
|
|
|
|
Type/displacement
|
EV80/F195
|
|
|
|
Start method
|
Electric start
|
|
|
|
Startup performance
|
-5°C~40°C
|
|
|
|
fuel/volume
|
Diesel / 8 L
|
|
|
|
battery capacity
|
12v 45AH
|
|
|
|
Fuel consumption
|
274g/kW-h
|
|
|
|
noise level
|
Rated speed≤81.5dBA (1m)
|
|
|
|
Emission Standards
|
Country II
|
|
|
operating system
|
Type of operation (jib/outrigger), manual travel
|
Manual operation, manual walking + remote control (optional)
|
|
|
|
Operating characteristics
|
Comai hydraulic system (optional)
|
|
|
The standard configuration
|
Diesel engine and electric motor (dual power)
|
|
|
|
Vehicle size
|
Length 2830*width 800*height 1650
|
|
|
|
Craftsmanship
|
Paint assembly process
|
|
|
Details Images

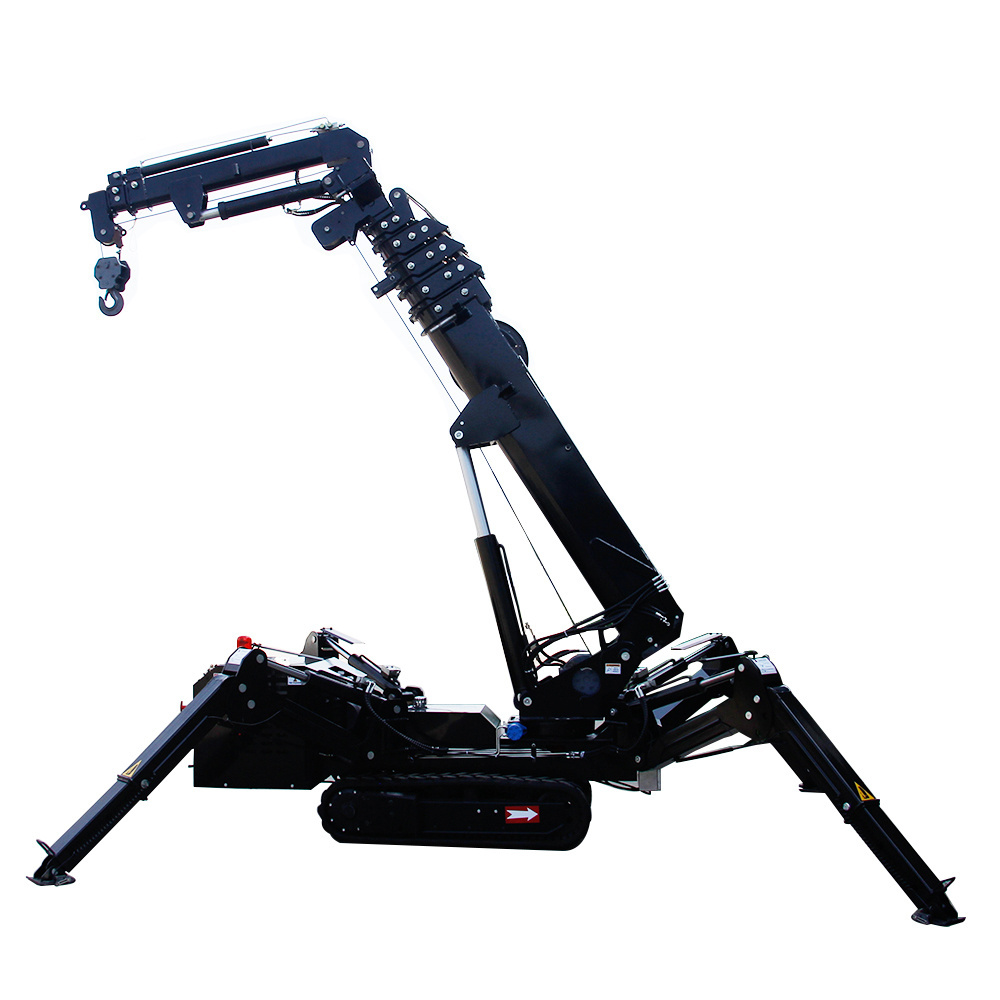

Photos of Big Promotion Indoor Class Spider Crane With 360 Degree Rotation 3T Municipal Building Construction Lifting Spider Cranes
