Quick Details
-
Brand Name:
-
HBYB
-
Model Number:
-
HBLX
-
Product name:
-
Pulse water meter
-
Material:
-
Cast Iron/brass
-
Color:
-
Blue
-
Standard:
-
ISO 4064 ClassB
-
Pressure:
-
1.0MPa/1.6MPa
-
Size:
-
DN15-DN300
-
Temperature:
-
Cold Water:0.1-50 /hot Water:50-90
-
Installation:
-
Horizantal
-
Packing:
-
Cartons Box
-
Display:
-
00000~99999
Quick Details
-
Warranty:
-
1 years
-
Type:
-
Multi-jet meters, Compound meters, Turbine meters, Electromagnetic meters, Ultrasonic meters, Prepaid water meters
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HBYB
-
Model Number:
-
HBLX
-
Product name:
-
Pulse water meter
-
Material:
-
Cast Iron/brass
-
Color:
-
Blue
-
Standard:
-
ISO 4064 ClassB
-
Pressure:
-
1.0MPa/1.6MPa
-
Size:
-
DN15-DN300
-
Temperature:
-
Cold Water:0.1-50 /hot Water:50-90
-
Installation:
-
Horizantal
-
Packing:
-
Cartons Box
-
Display:
-
00000~99999

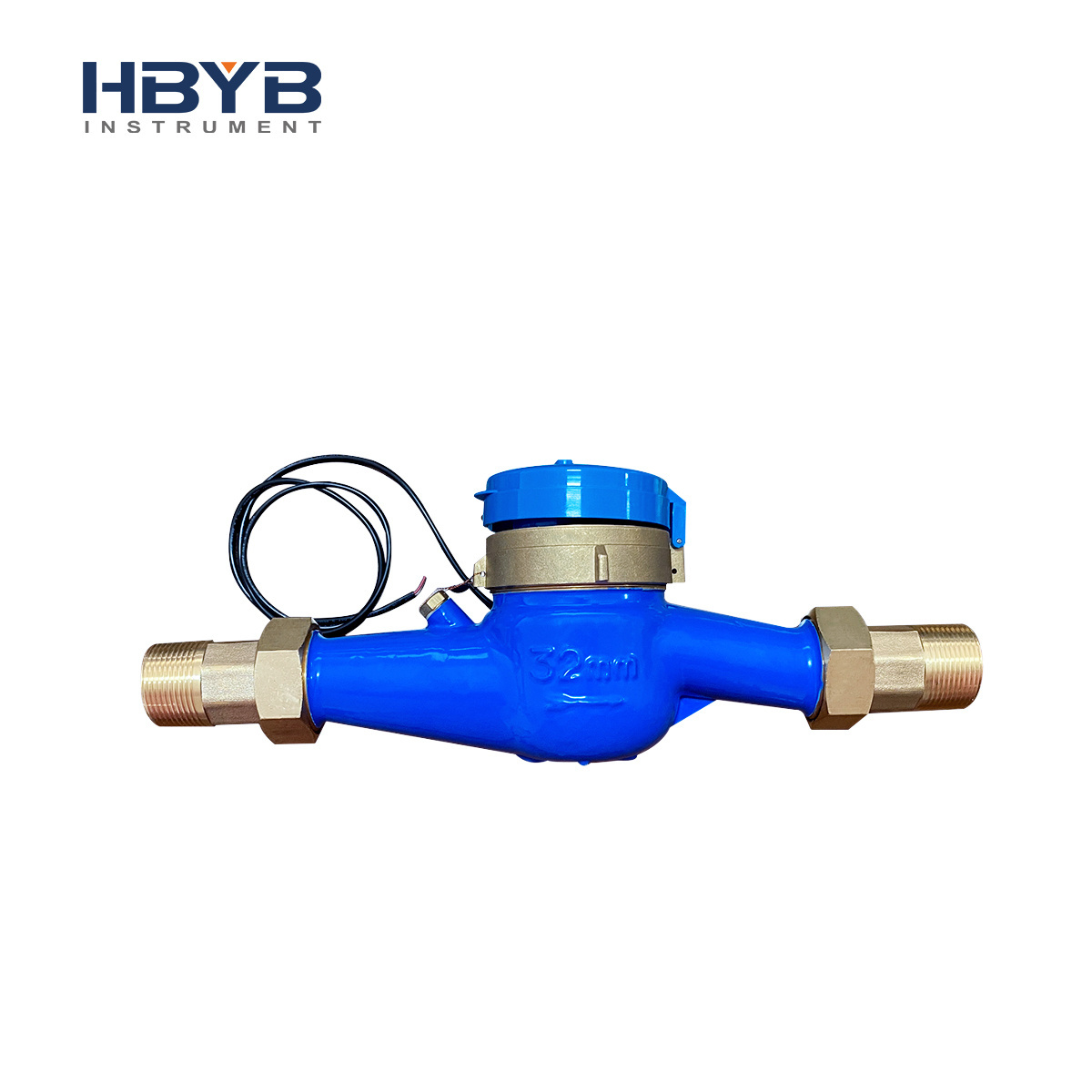

The externally adjustable multi-stream beam water meter is used to measure the cumulative amount of fluid in the pipeline, and the water meter is made of high-quality copper. It features high measurement accuracy and wide range ratio. The water meter is equipped with a pulse sensor to send signals, which can be adapted to remote transmission equipment such as MBUS, LORAWAN GPRS, NB-IOT, etc., to implement smart meter reading.
Product Parameter
|
Type
|
Size
|
Length
(mm)
|
Width
(mm)
|
Height
(mm)
|
Outer
diameter
of flange
(mm)
|
The center
diameter of connecting bolt D1(mm)
|
Connecting
bolt (Pcs)
|
|
LXLC(R)-50
|
50
|
200
|
165
|
215
|
165
|
125
|
4xM18
|
|
LXLC(R)-65
|
65
|
200
|
185
|
216
|
185
|
145
|
4xM18
|
|
LXLC(R)-80
|
80
|
225
|
200
|
279
|
200
|
160
|
8xM18
|
|
LXLC(R)-100
|
100
|
250
|
220
|
288
|
220
|
180
|
8xM18
|
|
LXLC(R)-125
|
125
|
250
|
250
|
308
|
250
|
210
|
8xM18
|
|
LXLC(R)-150
|
150
|
300
|
285
|
319
|
285
|
240
|
8xM22
|
|
LXLC(R)-200
|
200
|
350
|
340
|
348
|
340
|
295
|
8xM22
|
|
LXLC(R)-250
|
250
|
400
|
395
|
438
|
405
|
355
|
12xM24
|
|
LXLC(R)-300
|
300
|
450
|
445
|
465
|
460
|
460
|
12xM24
|
|
Flow technical parameters
|
|
|
|
|
|
|
||||||
|
Caliber (DN)
|
15MM
|
20MM
|
25MM
|
32MM
|
40MM
|
50MM
|
||||||
|
Measurement
gradeQ3/Q1
|
160
|
160
|
80
|
80
|
80
|
80
|
||||||
|
Unit of
measurement
|
m³
|
m³
|
m³
|
m³
|
m³
|
m³
|
||||||
|
Overload flow Q4
|
3.125
|
5
|
7.875
|
7.875
|
20
|
31.25
|
||||||
|
Comon flow Q3
|
2.5
|
4
|
6.3
|
6.3
|
16
|
25
|
||||||
|
Demarcation flow Q2
|
25
|
40
|
126
|
126
|
320
|
500
|
||||||
|
Minimum flow Q1
|
15.62
|
25
|
78.75
|
78.75
|
200
|
312.5
|
||||||
|
Minimum reading
|
0.00005
|
0.0001
|
0.0001
|
0.0001
|
0.0001
|
0.0001
|
||||||
|
Minimum reading
|
99999
|
99999
|
99999
|
99999
|
99999
|
99999
|
||||||
|
Operat ing
temperature
|
T30
|
T30
|
T30
|
T30
|
T30
|
T30
|
||||||
|
Working water pressure
|
MAP10
|
MAP10
|
MAP10
|
MAP10
|
MAP10
|
MAP10
|
||||||
Product Details
Central Gear
The center gear is equipped with four samarium cobalt magnets,which are not easy toweathering, degaussing and losing data. This ensures the life of the central transmissionpart of the water meter and the accuracy of measurement.
Dial Cover
The counter disc is made of POM, white porcelain, clear reading and durable service life.Fixed with screws, easy to replace.With double reed switch design, if one of them is damaged,it can still work normally.
Anti Magnetic Ring
When the reed switch is installed, the anti-magnetic ring is added, the pig iron material isrequired, and the signal strength of the magnet steel is required to be 3,000-4,000 gauss,which ensures the stable output of the pulse signal.
Turbine Component
The impeller shaft is made of stainless steel, agate, bushing and corundum. The service life andaccuracy are guaranteed.
Transmission Gear
High precision die, 1 million sets will be replaced to ensure small error, high throughput, andensure the accuracy of water meters and delivery time.
