Quick Details
-
Brand Name:
-
MINGXIN
-
Model Number:
-
S-400-24
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
17A
-
Application:
-
LED Lighting
-
Protections:
-
Short Circuit Overload Overvolt Overtemp
-
output power:
-
400w
-
Size:
-
215*115*50mm
-
Certificate:
-
CE , ROHS
-
Warranty:
-
2 years
-
Package:
-
1pc/white Box
-
MOQ:
-
1pcs
-
Efficiency:
-
90%
Quick Details
-
Input Voltage:
-
100-245vac, 100-265VAC
-
Output Voltage:
-
24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MINGXIN
-
Model Number:
-
S-400-24
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
17A
-
Application:
-
LED Lighting
-
Protections:
-
Short Circuit Overload Overvolt Overtemp
-
output power:
-
400w
-
Size:
-
215*115*50mm
-
Certificate:
-
CE , ROHS
-
Warranty:
-
2 years
-
Package:
-
1pc/white Box
-
MOQ:
-
1pcs
-
Efficiency:
-
90%

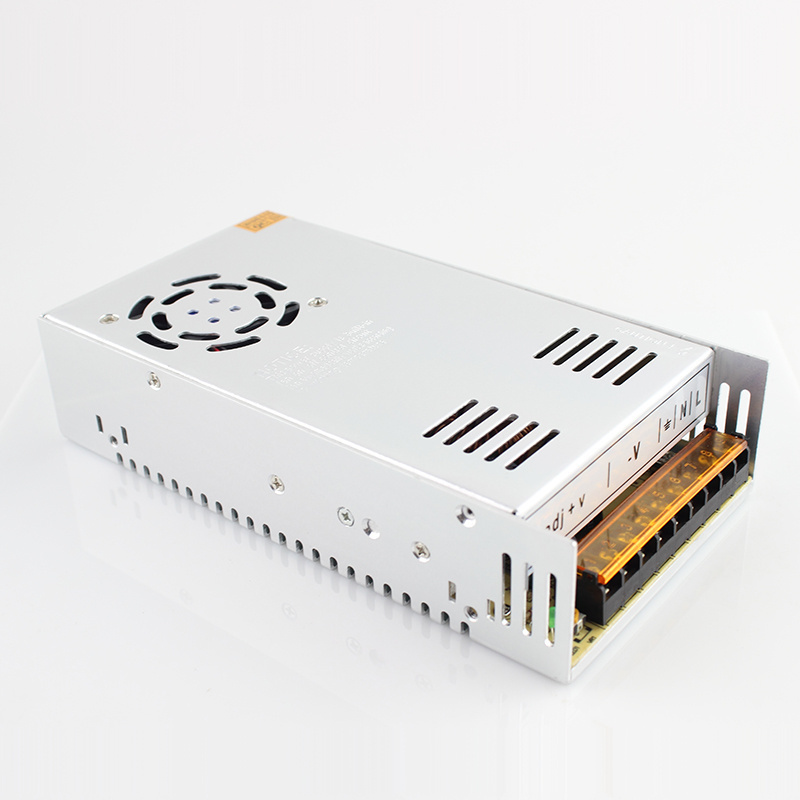

Aluminum Case 400W 24V 17a led switching Power Supply 24v 400w ac dc converter with CE ROHS
Features
1 . International AC input range
2. High efficiency,low working temperature
3. CE and Rohs approval,2 years warranty
4. OEM and ODM is welcome
Output Power: 400w
Output Voltage: 24v
Output Current: 17A
Input Voltage: 100-265V
Output Type: single
size: 215*115*50mm
More products more specification and pics as follows:
| Model | S-400-24 |
| AC input voltage range | 110-265V AC |
| Input current | 0.5A/115V 0.25A/230v |
| AC impulse current | Cold- start current 13A /115V 26A/230V |
| DC output voltage | 24V |
| DC output power | 400W |
| Rated output current | 17A |
| Output voltage error |
±1% |
| Efficiency | 90% |
| Wave and noise | 100mVp-p |
| Inlet stability | ±0.5% |
| Load satability | ±0.5% |
| Leakage current | <0.5mA/240VAC |
| Overload production | 105%-150% rated power,automatically recovery |
| Vibration | 10500HZ ,2G 10min/1 cycle,Period for 60min,EACH axes |
| Cooling method | Natural cooling air convection |
| Working temperature and humidity | -20°∼60°c /20%∼90%RH (no frost) |
| Store temperature and humidity | -40 ° ∼85 °c /10% ∼95%RH (no frost) |
| Safety standards | CE (EMC+LVD) ,ROHS |
| Product size | 215*115*50mm |
More models for your chosen as follows :
|
1pc/white box ,36pcs/ctn ,28KGS/CTN
Our Advantage
8 years focus on the LED Power Supply Research and development, Production
Competitive price and best service
Timely reply to your enquiry
All the sample fee will be returned once the order confirmed, and we always have stock samples
OEM&ODM is ok for us
All inspection of the product
