CloudEngine S5755-H48UTM4X4Y2C 48 port 10G Ethernet Multi-GE switch with 10GE 25GE 100GE uplink ports

FOB Reference Price: Get Latest Price

≥1 Pieces

US $500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: HW

Use:: large-scale campus networks

Forwarding Performance:: 450 Mpps

Switching Capacity:: 992 Gbps/2.32 Tbps

Power Supply Type:: 1+1 power backup

PoE Supported:: 90 W PoE++

Quick Details

Type:: Enterprise Switch

Model Number:: S5755-H48UTM4X4Y2C

Place of Origin:: Guangdong, China

Brand Name:: HW

Use:: large-scale campus networks

Forwarding Performance:: 450 Mpps

Switching Capacity:: 992 Gbps/2.32 Tbps

Power Supply Type:: 1+1 power backup

PoE Supported:: 90 W PoE++

Product Description

CloudEngine S5755-H Series High-Quality Multi-GE Switch
CloudEngine S5755-H series High-Quality Multi-GE switches are brand-new access switches that provide 12/36-port gigabit,12-port Multi-GE, and provide four 1/10/25GE and two 40/100GE uplink ports.

CloudEngine S5755-H series multi-GE switches are high-quality gigabit access switches with 24- or 48-port options, offering GE/Multi-GE electrical downlink ports, four 10GE, four 25GE plus two 100GE uplink ports. By leveraging unified software platform, CloudEngine S5755-H series multi-GE switches create a multi-purpose network through VXLAN-based network virtualization. The series also stands out for free mobility that delivers consistent user experience anywhere, anytime. A maximum of 48 downlink ports and MACsec support on all ports make CloudEngine S5755-H the best choice of access switches for the Wi-Fi 6 and Wi-Fi 7 era. With these merits, CloudEngine S5755-H series can be widely used in healthcare, retail, mining, Internet Service Provider (ISP), and other industries.

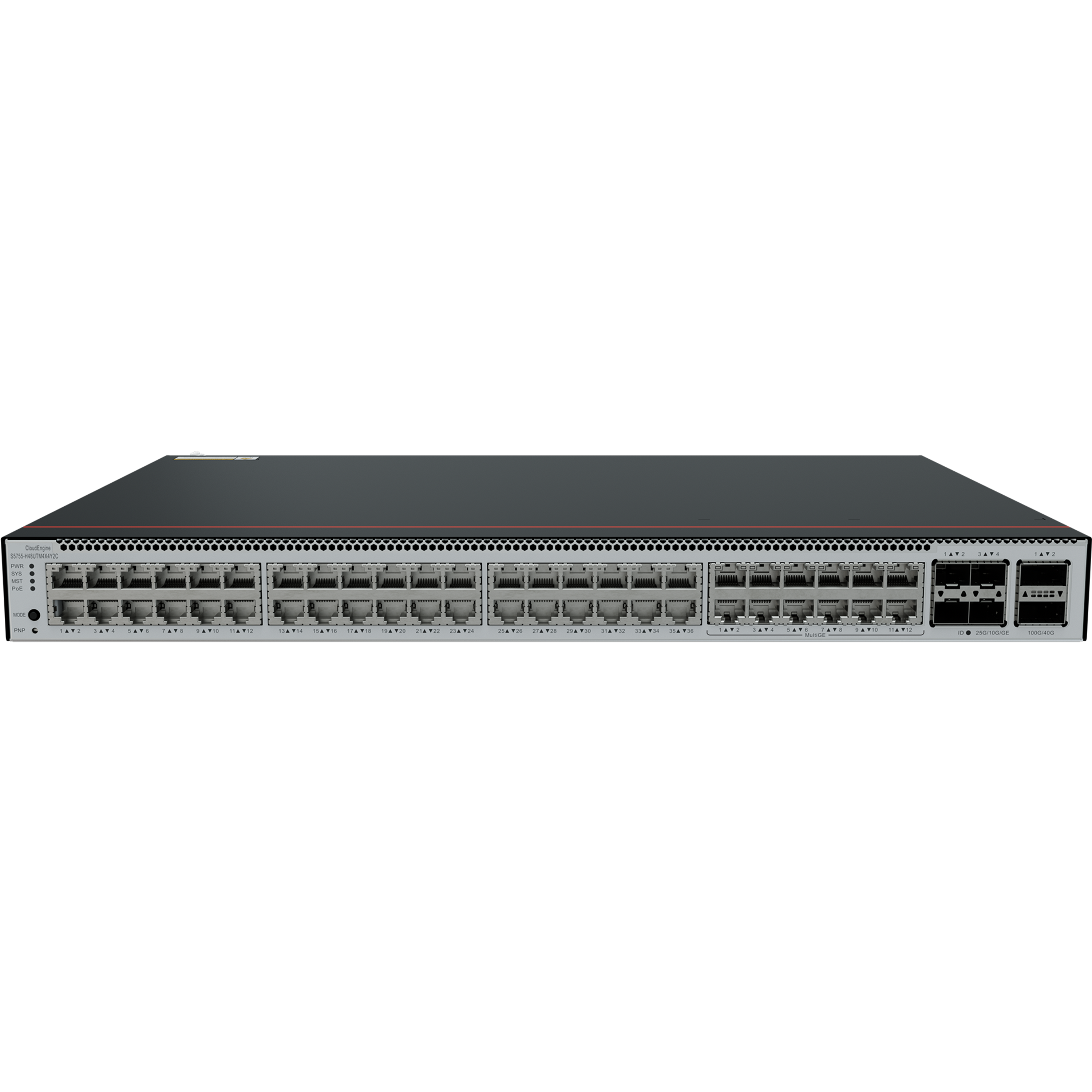

Details Images

Product Features

High reliability
2 power supplies, 1+1 power supply backup, allowing a mix of AC and DC power supplies

Network virtualization
VXLAN-based campus network virtualization: one physical network to carry multiple services, achieving one network for multiple purposes and saving network deployment and O&M costs

End-to-end security
MACsec support on all ports for E2E MACsec networking

Product Paramenters

CloudEngine S5755-H48UTM4X4Y2C

⚫ 36 × 10/100/1000M Base-T Ethernet ports, 12 × 100M/1/2.5/5/10G Base-T Ethernet ports, 4 x 1/10GE SFP+, 4 x 1/10/25GE SFP28, 2 x40/100GE QSFP28 ports**

⚫ 90W PoE++

⚫ 1+1 power backup

⚫ Forwarding performance: 450 Mpps

⚫ Switching capacity*: 992 Gbps/2.32
Tbps

roduct Model	CloudEngine S5755-H24UTM4X4Y2C	CloudEngine S5755-H24UTM4X4Y2C-T	CloudEngine S5755-H48UTM4X4Y2C	CloudEngine S5755-H48UTM4X4Y2C-T
Forwarding Performance	450 Mpps	450 Mpps	450 Mpps	450 Mpps
Switching Capacity2	864 Gbps/2.32 Tbps*	864 Gbps/2.32 Tbps*	912 Gbps/2.32 Tbps*	912 Gbps/2.32 Tbps*
Fixed Ports	12 × 10/100/1000M Base-T Ethernet ports, 12 × 100M/1/2.5/5/10G Base-T Ethernet ports, 4 x 1/10GE SFP+, 4 x 1/10/25GE SFP28, 2 x 40/100GE QSFP28 ports			36 × 10/100/1000M Base-T Ethernet ports, 12 × 100M/1/2.5/5/10G Base-T Ethernet ports, 4 x 1/10GE SFP+, 4 x 1/10/25GE SFP28, 2 x 40/100GE QSFP28 ports
PoE	Supported, 90 W PoE++
Power Supply Type	1+1 power supply backup
MAC Features	IEEE 802.1d compliance
		Automatic MAC address learning and aging
		Static, dynamic, and blackhole MAC address entries
		Packet filtering based on source MAC addresses
iPCA	Directly coloring service packets to collect real-time statistics on the number of lost packets and packet loss ratio
iPCA		Collecting real-time statistics on the number of lost packets and packet loss ratio at network and device levels
VXLAN	VXLAN Layer 2 and Layer 3 gateways
		Centralized and distributed gateways
		BGP-EVPN
		Configured through the NETCONF protocol
Interoperability	VBST (compatible with PVST/PVST+/RPVST)
		LNP (similar to DTP)
		VCMP (similar to VTP)
