Quick Details
-
Usage:
-
aquatic plants harvester
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KEDA
-
Dimension(L*W*H):
-
13.5*4.5*2.7m
-
Weight:
-
9000 KG
-
Marketing Type:
-
Hot Product
-
Work Effciency:
-
300-3000m³/h
-
Power:
-
52kw
-
mowing depth:
-
0.8-1m
Quick Details
-
Number of Rows:
-
1
-
Working Width(mm):
-
2000 mm
-
Tractor Power(HP):
-
62 - 110 HP
-
Usage:
-
aquatic plants harvester
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KEDA
-
Dimension(L*W*H):
-
13.5*4.5*2.7m
-
Weight:
-
9000 KG
-
Marketing Type:
-
Hot Product
-
Work Effciency:
-
300-3000m³/h
-
Power:
-
52kw
-
mowing depth:
-
0.8-1m
Product Description

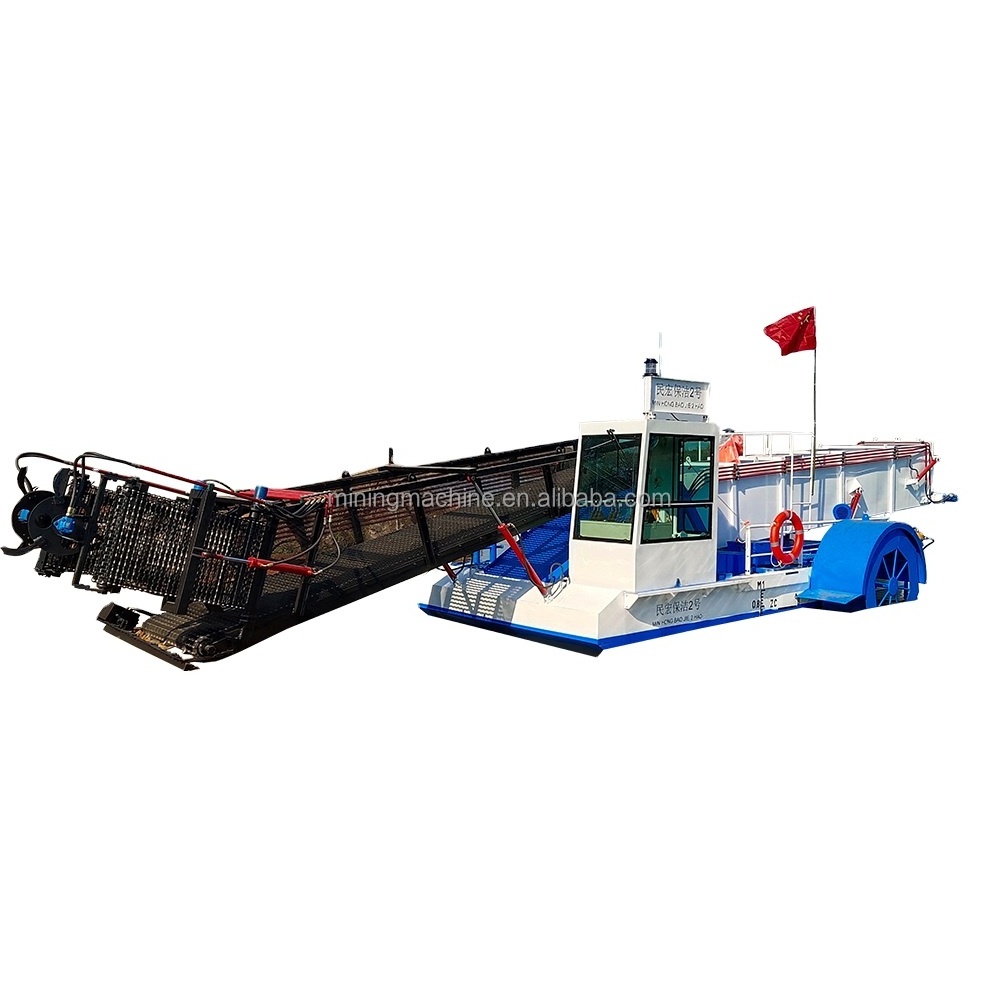

Keda Aquatic Weed Harvester
KEDA Aquatic Weed Harvester is a full-automatic harvester system used in river, reservoir, canal and coasts, which integrated with cutting, collecting, storing, transporting and discharging waterweeds and floating garbage, such as aquatic weed, water hyacinth, enteromorpha, alternanthra phoiloxeroides, duck weed, reed , all kinds of rubbish and so on. All the equipment of the ship can work automatically and can save much labor force for its high efficiency.
Its hull consists two side pontoons. All the other equipment, including operation room, conveyor belting cabin, engine, are fixed by bolts. It is easy to dismantle for transportation by road, rail or water, and easy to reassemble at project site.
The machine is driven by paddle wheel instead of the screw propeller, which can make sure the wheel is not entangled by the underwater weed. The system is perfectly optimized so that the machine can work efficiently.
Its hull consists two side pontoons. All the other equipment, including operation room, conveyor belting cabin, engine, are fixed by bolts. It is easy to dismantle for transportation by road, rail or water, and easy to reassemble at project site.
The machine is driven by paddle wheel instead of the screw propeller, which can make sure the wheel is not entangled by the underwater weed. The system is perfectly optimized so that the machine can work efficiently.
Specification
|
Aquatic Weed Harvester Parameter
|
|
|
|
|||
|
|
KDWH-100
|
KDWH-150
|
KDWH-200
|
|||
|
LOA(l*w*h)
|
10*4.5*2.7m
|
13.5*4.5*2.7m
|
16*4.9*4.2m
|
|||
|
Working Capacity
|
200-2000m³/h
|
300-3000m³/h
|
500-5000m³/h
|
|||
|
Design Draught
|
0.4-0.6m
|
0.4-0.6m
|
0.5-0.7m
|
|||
|
Mowing Depth
|
0.6-0.8m
|
0.8-1m
|
0.8-1m
|
|||
|
Unloading Height
|
0-2m
|
0-3m
|
0-3m
|
|||
|
Loading Capacity
|
4-6m³
|
8-10m³
|
13-26m³
|
|||
|
Engine Power
|
52kw
|
52kw
|
70kw
|
|||
|
Fuel Consumption
|
4-6L/H
|
4-6L/H
|
6-8L/H
|
|||
|
Speed
|
0-15km/h
|
0-15km/h
|
0-20km/h
|
|||
|
Propulsion
|
Paddle Wheel
|
Paddle Wheel
|
Paddle Wheel
|
|||
|
Hydraulic Tank
|
360L
|
360L
|
360L
|
|||
|
Crew
|
1 or 2
|
1 or 2
|
1 or 2
|
|||
|
Total Weight
|
6.5T
|
9T
|
14T
|
|||
