Portable Vehicle Exhasut Gas Purifier Welding Fume Extractor

Portable Vehicle Exhasut Gas Purifier Welding Fume Extractor

FOB Reference Price: Get Latest Price

≥1 Sets

US $700

≥10 Sets

US $680

≥20 Sets

US $640

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Motor Power:: 350W

Working Voltage:: 220V 50Hz

Air Volume:: 450 m3/h

Filter Accuracy:: 0.3um

Filter:: Five-layer filter plates

Suction Arm:: Dia.58mm*6m (2pcs)

Cleaning Mode:: Manual

Noise Level:: 68dBA

Size:: 520*580*720mm

Weight:: 35kg

Quick Details

Weight (KG):: 35

Place of Origin:: China

Brand Name:: Moland

Motor Power:: 350W

Working Voltage:: 220V 50Hz

Air Volume:: 450 m3/h

Filter Accuracy:: 0.3um

Filter:: Five-layer filter plates

Suction Arm:: Dia.58mm*6m (2pcs)

Cleaning Mode:: Manual

Noise Level:: 68dBA

Size:: 520*580*720mm

Weight:: 35kg

Product Overview

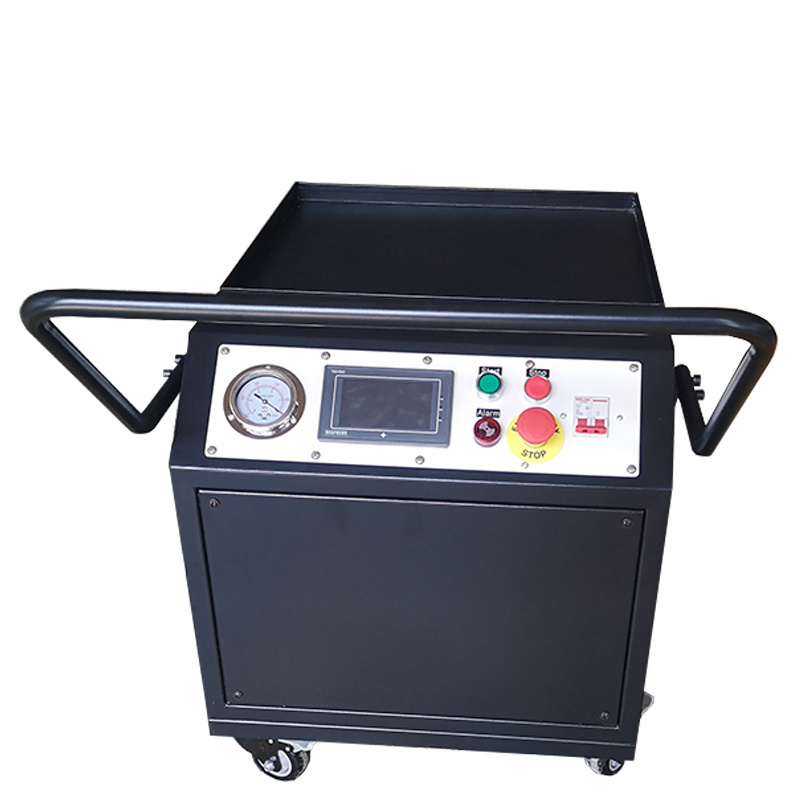

MLWF50P Vehicle Exhaust Gas Extractor

Extracting exhaust fumes of motor vehicles from the work area prevents them being released into the work environment and becoming a health hazard for the operator. A good exhaust extraction system has to collect the fumes at the production point (exhaust pipe of the vehicle) and has to convey them outside the building to be expelled into the atmosphere.
Where stationary vehicle exhaust systems are unavailable or inaccessible, the best solution may be a portable exhaust removal system from Moland.
Moland MLWF50P Vehicle Inspection Line Gas Purifier provides powerful 265CFM source collection, operating with 220V power to use wherever it is needed. Besides, we also supply customization supply for voltage, size, air flow, etc.

FEATURES AT A GLANCE

COMPACT DIMENSIONS

EXTENDING SUCTION ARMS

SAFETY FRAME

SIMPLE CONTROL

EASY MAINTENANCE

VERSATILITY

PORTABLE DESIGN

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power	350W
2	Working Voltage	220V 50Hz
3	Air Volume	450 m3/h
4	Filter Accuracy	0.3um
5	Filter	Five-layer filter plates
6	Suction Arm	Dia.58mm*6m (2pcs)
7	Cleaning Mode	Manual
8	Noise Level	68dBA
9	Size	520580720mm
10	Weight	35kg

PRODUCT CONFIGURATION

Intelligent Control System

1. The screen is touchable.

2. The air volume can be adjusted.

3. Set parameters as per your requirements.

4. Have Local and Online two mode. You can connect with other machines to realized linkage function

Easy to Operate

1. Green Start button

2. Red Stop button

3. Emergency Stop alarm

4. Emergency Stop button

5. Main power switch

Five Layer Filter Plates

1. Metal strainer filter 2. Active carbon cotton filter 3. Medium efficency filter 4. Active carbon filter 5. HEPA Filter

Differential Pressure Gauge

Real-time detect the differential pressure to let you know whether the filters are need to be replaced or not.

Suction Arm with Magnet Base

1. Two suction hoods for your to capture two working areas' fume at one time

2. Magnet base makes the suction hood can be fixed on iron object.

Universal Wheel

2 front universal wheels with self-lock.

2 back universal wheels

The four flexible wheels make the fume extractor portable and mobile.

Long Soft Suction Hose

Customized length of the suction hose, to meet different distance requriements.

Top H asp

With haspes on the top of machine, easy to open to change filters.

COMPANY PROFILE

Shandong Moland Environmental Tech Co.,Ltd

Shandong Moland Environmental Technology Co., Ltd. was established in 2016 and is located at No. 11889, Jingshi West Road, Economic Development Zone, Jinan City. It is an environmentally friendly high-tech enterprise specializing in R&D, manufacturing and sales of high-efficiency smoke purification systems.
In 2022, the company was rated as "Jinan Gazelle Enterprise" and "Shandong Province Specialized and Special New Enterprise". Moland is committed to reducing the impact of the production process on the environment, protecting workers from harmful gases and dust, and creating a cleaner working environment.
At present, the company's products have been successfully used in various industries such as automobile, railway, construction machinery, marine engineering, aviation and other mechanical processing industries, as well as new energy, new materials, grain, wood, and renewable energy processing.
The company’ products have passed the ISO9001 quality management system certification, environmental management system certification(ISO14001), occupational health and safety management system certification (ISO45001), obtained the China Environmental Protection Product Certification issued by the China Environmental Protection Industry Association, the EU CE certification, industrial explosion-proof certification, etc., and has a number of Invention patents, utility model patents and appearance patents. Through continuous R&D and innovation, many of the company's products have reached the international leading level.
Moland's services cover the entire process from project design, product manufacturing to installation, commissioning and
after-sales service. We will provide you with the most professional environment governance solutions and the best quality
services.

CERTIFICATIONS

Product: CE, ISO9001, ISO14001, ISO45001, Third-party Inspection Reports, etc.

R&D: Utility Model Patent Certificate，Appearance Patent Certificate
Employee: Ecological Environment Technician Certificate， Senior Environmental Engineer， Welder Certificate， High Altitude Work Certificate, etc.
Company: High-tech Enterprise Certificate， Member of Environmental Protection Association， Honest Supplier Enterprise Certificate, CCTV Brand China column recommended brand, etc.
