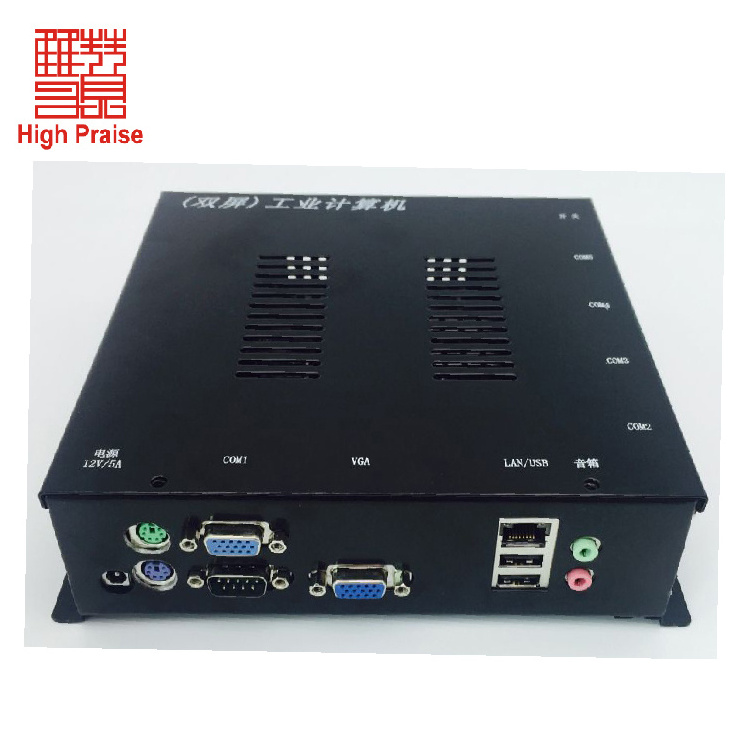

Intel Atom D525 Dual Core cpu embedded Industrial computer
Intel Atom D525 Dual Core cpu embedded Industrial computer
Intel Atom D525 Dual Core cpu embedded Industrial computer
Intel Atom D525 Dual Core cpu embedded Industrial computer
Intel Atom D525 Dual Core cpu embedded Industrial computer
Intel Atom D525 Dual Core cpu embedded Industrial computer
Intel Atom D525 Dual Core cpu embedded Industrial computer
Intel Atom D525 Dual Core cpu embedded Industrial computer

Intel Atom D525 Dual Core cpu embedded Industrial computer

FOB Reference Price: Get Latest Price
≥1 Pieces
US $99
≥100 Pieces
US $94
≥1000 Pieces
US $90
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Power supply:
DC 12V Power Jack
RAM:
1G or 2G
SSD:
4G 8G 16G optional
Case:
18.5*18.5*4.8CM

Quick Details

Type:
Embedded Computer
Place of Origin:
Guangdong, China
Display:
Two VGA
Power supply:
DC 12V Power Jack
RAM:
1G or 2G
SSD:
4G 8G 16G optional
Case:
18.5*18.5*4.8CM

1. Onboard Intel Atom D525 dual Core, Low-Power design 1.8Ghz Dual Core industrial computer.
2. DC 12V Power Supply, with 8 USB Optional

3. Support 20Pin or 30Pin LVDS, with Two VGA Port

4. Rj45 LAN for internet

5. Special mini Case

Model No.
OEM-525PC-1
CPU
Intel Atom D525 Dual Core 1.8GHz
Chipset
Intergrated Intel GM3150
System Memory
1 SO-DIMM , DDR3 1600/1333/1600MHz Memory Maximum Suppor 8G
Graphics
Intergrated Intel HD Graphics
Display Connector
VGA , Onboard VGA Pin , LVDS
On board LAN
1 Realtek RT8111E,1000M Ethernet controllers Support PXE Guidance,and Remote Wakening
On board Audio chip
Realtek ALC662 HD Audio Decode Controller
Storage
1*SATA II
Expand Socket
1*MINI-PCIE(forM-SATA/WIFI) 1*SIM
USB
2*USB2.0
COM
2*COM  4COM optional
Power Supply
DC-IN , Built-in 4pin DC power supply Interface



Front I/O Interface
1×PS/2
1×AUDIO
1×DC
1×LPT
1×RJ-45 LAN Port
1×COM Port
2×VGA Port
2×USB2.0 Ports







Rear I/O Interface
1×F-Panel Pin
2×SYS-FAN Pin
1×CPU-FAN Pin
1×AUTO-ON Jump Cap Of Automatically Turn On When coming Electricity
1×CLR_CMO clear CMOS jump cap
1×SATA-PWR Pin
1×AUDIO Pin
1×GPIO Pin
1×PANEL Pin
1×4Pin ATX
1×6PIN INVERT
1×COM Contact Pin
1×12pin VGA Pin(2 12pin VGA optional)
1×20Pin LVDS(30Pin LVDS optional)
BIOS
AMI 8M BIOS
Form Factor
MINI-ITX (6 layers PCB) , 170mm*170mm
System Monitoring
and Management
Wake on LAN System Power Management Temperature management, voltage management Fan speed monitoring
Working Humidity
0% ~ 95% (relative humidity, non-condensing)
Operating Temperature
-15°C ~ 60°C

pre-sales&after sales

Free Technical Support Reassuring Guarantee

3 Years Warranty.

ODM&OEM

Design and Product  base on customer request

20 People R&D Department

Latest Equipment Factory

Ultimate one-stop Service

Quality Control System

72 Hours Strict Burn-in Test

Running Board In Different Condition

Re-Testing Before Shipping Out

Firm Packing for Express

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Team

Packing Details  : 20pcs/carton

Carton Size: 50*49*20 CM

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample, but need to pay the cost.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
