Quick Details
-
Table Travel (Z) (mm):
-
400 mm
-
Travel (W-axis) (mm):
-
35 mm
-
Positioning Accuracy (X axis) mm:
-
0.001
-
Positioning Accuracy (Y axis) mm:
-
0.001
-
Positioning Accuracy (Z axis) mm:
-
0.001
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Spindle Motor Power(kW):
-
0.4
-
Place of Origin:
-
CHINA JIANGSU
-
Brand Name:
-
ALMACO
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1480X1050X2270mm
-
Weight (T):
-
1050 T
-
Boring diameter:
-
10-60mm
-
Max length for Cylinder head:
-
1200*300*400mm
-
Motor Power:
-
0.4kw
-
Spindle Speeds:
-
0-1000rpm
-
Spindle Travel:
-
200mm
-
Plate longitudinal travel:
-
35mm
-
Clamper swing angle:
-
-45°~+55°
-
Air supply press:
-
0.7mpa
-
Air supply flow:
-
300L/min
-
Overall dimensions (L*W*H):
-
1480*1050*2270mm
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Algeria
-
Certification:
-
CE ISO
Quick Details
-
Table Size (mm):
-
1200X300
-
Table Travel (X) (mm):
-
1200 mm
-
Table Travel (Y) (mm):
-
300 mm
-
Table Travel (Z) (mm):
-
400 mm
-
Travel (W-axis) (mm):
-
35 mm
-
Positioning Accuracy (X axis) mm:
-
0.001
-
Positioning Accuracy (Y axis) mm:
-
0.001
-
Positioning Accuracy (Z axis) mm:
-
0.001
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Spindle Motor Power(kW):
-
0.4
-
Place of Origin:
-
CHINA JIANGSU
-
Brand Name:
-
ALMACO
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1480X1050X2270mm
-
Weight (T):
-
1050 T
-
Boring diameter:
-
10-60mm
-
Max length for Cylinder head:
-
1200*300*400mm
-
Motor Power:
-
0.4kw
-
Spindle Speeds:
-
0-1000rpm
-
Spindle Travel:
-
200mm
-
Plate longitudinal travel:
-
35mm
-
Clamper swing angle:
-
-45°~+55°
-
Air supply press:
-
0.7mpa
-
Air supply flow:
-
300L/min
-
Overall dimensions (L*W*H):
-
1480*1050*2270mm
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Algeria
-
Certification:
-
CE ISO
Products Description

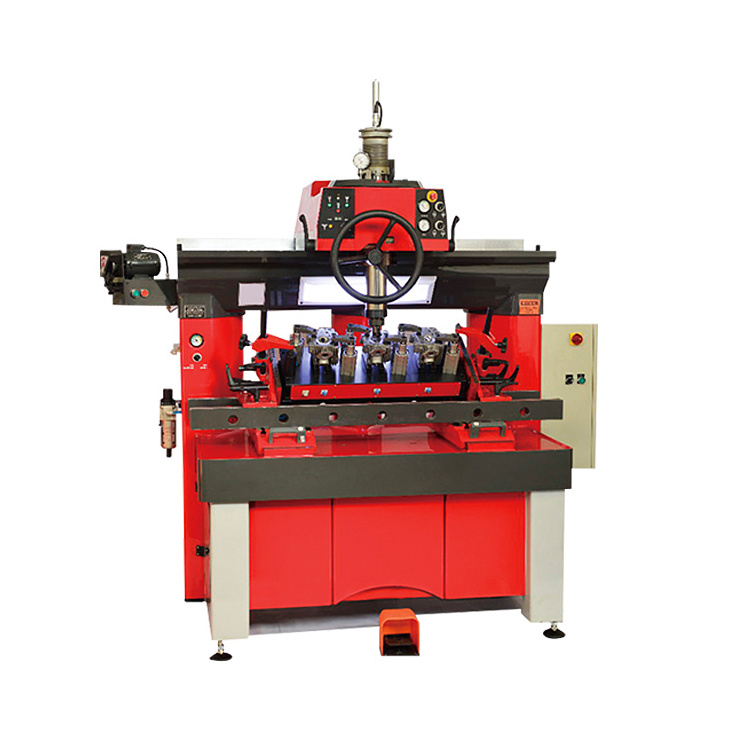

It is a machine tool mainly used for boring the existing preformed hole of workpiece. Generally, the rotation of boring cutter is the main motion, and the movement of boring cutter or workpiece is the feed motion. It is mainly used for machining high-precision holes or finishing multiple holes at one time. In addition, it can also be engaged in machining other machining surfaces related to hole finishing.
2. High performance vector control
3. Fast torque dynamic response, high speed stability precision
4. Fast deceleration and parking speed
5. Strong anti-interference ability
Specification
|
Boring diameter
|
φ14-φ60mm
|
|
Max length for Cylinder head (L*W*H)
|
1200*300*400mm
|
|
Motor Power
|
0.4KW
|
|
Spindle Speeds
|
0-1000rpm
|
|
Spindle Travel
|
200mm
|
|
Plate longitudinal travel
|
35mm
|
|
Clamper swing angle
|
-45°~+55°
|
|
Air supply press
|
0.7Mpa
|
|
Air supply flow
|
300L/min
|
|
Overall dimensions (L*W*H)
|
1480*1050*2270mm
|
|
Packing dimensions (L*W*H)
|
1900*1300*2200mm
|
|
N.W./G.W.
|
1050/1250kg
|
