Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Ground Mounting, Roof Mounting, Carport Mounting, BIPV Mounting
-
Certificate:
-
CE, CE,TUV,RoHS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Singfo
-
Model Number:
-
SFOF2000W
-
Load Power (W):
-
2KW, 2000W
-
Output Voltage (V):
-
36V, 12V,5V,220V
-
Output Frequency:
-
50/60HZ
-
Work Time (h):
-
20
-
Specification:
-
Normal
-
Item:
-
2000W Residential stand alone Solar Power System
-
Crystalline Type:
-
Monocrystalline
-
Solar Home System Output Wave:
-
pure sine wave
-
Solar Generator Battery:
-
Maintenance-free lead-acid battery
-
Solar Product Technology:
-
IPM or IGBT of Mitsubishi
Quick Details
-
Application:
-
Home, Commercial, Industrial
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
GEL
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Ground Mounting, Roof Mounting, Carport Mounting, BIPV Mounting
-
Certificate:
-
CE, CE,TUV,RoHS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Singfo
-
Model Number:
-
SFOF2000W
-
Load Power (W):
-
2KW, 2000W
-
Output Voltage (V):
-
36V, 12V,5V,220V
-
Output Frequency:
-
50/60HZ
-
Work Time (h):
-
20
-
Specification:
-
Normal
-
Item:
-
2000W Residential stand alone Solar Power System
-
Crystalline Type:
-
Monocrystalline
-
Solar Home System Output Wave:
-
pure sine wave
-
Solar Generator Battery:
-
Maintenance-free lead-acid battery
-
Solar Product Technology:
-
IPM or IGBT of Mitsubishi
3KW Residential Electric Stand Alone Solar Power System
Product Features:
- Over-charge & Over-discharge protection
-With 2 USB DC5V output and 3 DC12V output
- With 1 AC 110/ 220V Output,Also have UPS function
- Pure Sine Wave inverter, Can load Air condition and refrigerator -
- Easy mounting & installation .
- LCD digital display (can see the system working condition,
- Can be charged by normal AC230V electricity when cloudy or rainy
Applications:
• Houses ,Offices, Clinics, School .
• Factories , Mines
• Outdoor / recreational activities
• Emergency & medical work
• Site inspection
• Street Lights
• Use by security staff
| Technical Data: | ||||
| Solar Panels | Type | 10 X 300W SFM300-72 Panels | ||
| Rated Maximum Power (Pmax) | 300W | |||
| Cell Type | Polycrystalline | |||
| Tolerance | ± 3% | |||
| Voltage @ Pmax (Vmp) | 36V | |||
| Current @ Pmax (Imp) | 8.28A | |||
| Short Circuit Current (Isc) | 9.10A | |||
| Open Circuit Voltage (Voc) | 43.8V | |||
| Nominal Operating Cell Temperature | 47°C ± 2°C | |||
| Panel Dimensions | 1958*992*50mm | |||
| Standard Test Conditions | 25°C 1.5AM ,1000W/m2 | |||
| Inverter | SPEC | 48V 3000W | ||
| Wave Form | Pure sine wave | |||
| Output Voltage | AC110V/ 220V | |||
| Output Frequency | 50Hz/60Hz | |||
| Inverter Efficiency | 90% | |||
| Battery | Voltage | 12V | ||
| Capacity | 250AH | |||
| Battery Type | Deep Cycle, Sealed Gel, Lead acid | |||
| Host box | Construction | Steel, Outdoor Rated | ||
| Pedestal Dimensions | 1370*1300*1085mm | |||
| Charge Controller | battery status indicators, | |||
| Output Voltage | AC110V/ 220V | |||
| Working Temp., Humidity | -20 ~ +70° C, 20 ~ 90% RH | |||
| Storage Temp., Humidity | -20 ~ +85° C, 10 ~ 95% RH | |||
| Fitting List | ||||
| Item name | Description | QTY (pcs) | ||
| Solar Panels | 36V 300W | 10 | ||
| Battery | 12V 250AH | 8 | ||
| Inverter | 48V 3000W | 1 | ||
| Solar Panel Bracket | / | 1set | ||
| Host box | / | 1set | ||
| Cables | / | 1set | ||
| Max Power Supply Capacity Reference | ||||
| SF-3000W Solar Home System | ||||
| Loads Name | Load's Watt | QTY | Working Hours | Consumption (WH) |
| Energy Savign Lamp | 11 | 16 | 8 | 1408 |
| LCD TV 42" | 130 | 2 | 8 | 2080 |
| Washing Machine | 350 | 1 | 2 | 700 |
| Refrigerator 628L | 180 | 1 | 24 | 1000 |
| Air Conditioner 1P | 1500 | 2 | 4 | 12000 |
| Water Pump | 200 | 1 | 2 | 400 |
| Laptop | 80 | 1 | 8 | 640 |
| Printer | 40 | 2 | 2 | 160 |
| Total | 2491 | 18228 | ||
This system configuration is for reference, it can be adjusted based on actual condition and requirement.
Our Factory View
Our Certificates :

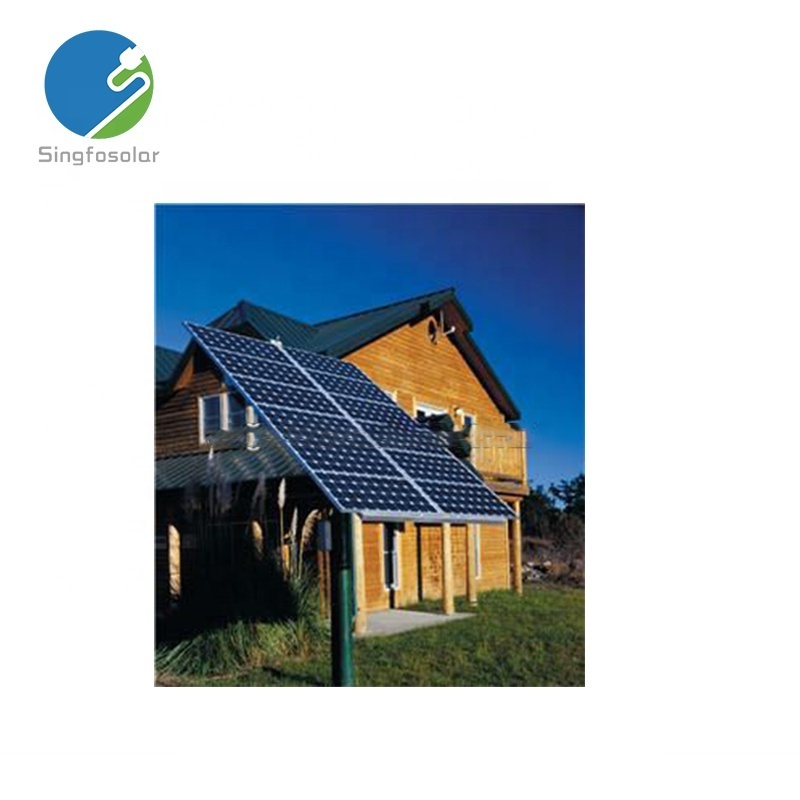

Products Application Scene
