- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
VES Multichannel Resistivity Meter
-
Model:
-
VES
-
Parameter:
-
Primary Potential VP
-
Data:
-
Natural Potential Vsp
-
Channels:
-
256
-
Function:
-
Electrical Profiling
-
Brand:
-
SAMYON
-
Waranty:
-
1 Year
-
MOQ:
-
1
-
Package:
-
Carton
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
SAMYON
-
Product name:
-
VES Multichannel Resistivity Meter
-
Model:
-
VES
-
Parameter:
-
Primary Potential VP
-
Data:
-
Natural Potential Vsp
-
Channels:
-
256
-
Function:
-
Electrical Profiling
-
Brand:
-
SAMYON
-
Waranty:
-
1 Year
-
MOQ:
-
1
-
Package:
-
Carton

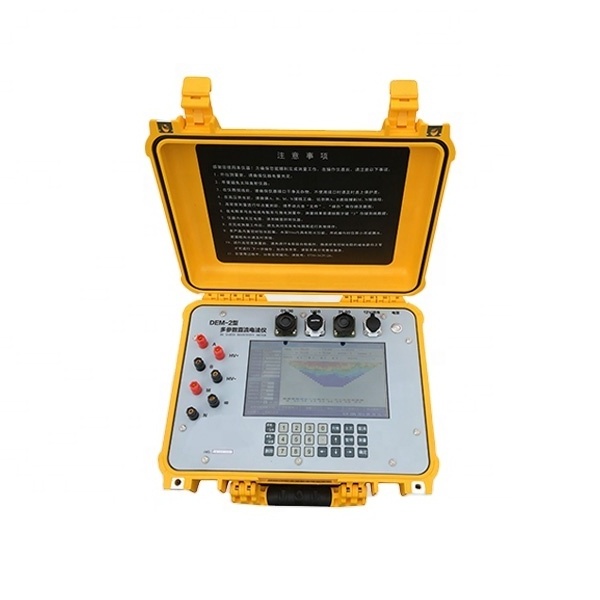

VES Multichannel Resistivity Meter
Product Description
Specifications
It is integrated electrical profiling and VES adopt high density distribute. It is widely used for Geophysical Engineer and hydrogeological investigation.
Main Feature
1. Water proof and stronge carry case to avoid destroy during transport and exploration hard state.
2. Can directly measure and show the following parameters: Primary Potential VP, Natural potential Vsp, Power current, Apparent resistivity, Apparent Polarization ns, the half-decay time S 0.5, attenuation degree Ds, and integrated excitation parameters ns.
3. With strong anti-common-mode interference and differential-mode interference to ensure the stable and reliable data in high interference areas.
4. Can automatically detect the pass-through of the AB loop and MN loop, and prevent the invalid measurement value due to the abnormal line, which can improve the efficiency of field measurement and facilitate the troubleshooting.
5. Real-time display of Vp lab and the curve in the Vsp measurement process, help the measurement personnel to analyze the validity of the original data.
6. 10.2 inch HD screen with a brightness of 900nit, suitable for field work and support for automatically screen down in the condition of long-term un-operated.
Parameters
|
Voltage Range
|
-10000mV-+10000mV
|
Input impedance
|
>= 50M
|
|
Voltage precision
|
0.001mV
|
Anti-Frequency 50Hz influence
|
Better than 120dB
|
|
Polarization
|
<=3% +/-0.2,
>=3% +/- 0.1
|
Data Storage
|
1GB
|
|
Polarization Voltage Compensation
|
+/- 1.25V
|
Power
|
Internal 12V/11000mAh
Lithium battery
Work 12 hours
|
|
Current Range
|
0-5000mA
|
Size
|
339*295*152mm
|
|
Current accuracy
|
0.01mA
|
Weight
|
5.25kg
|
