Quick Details
-

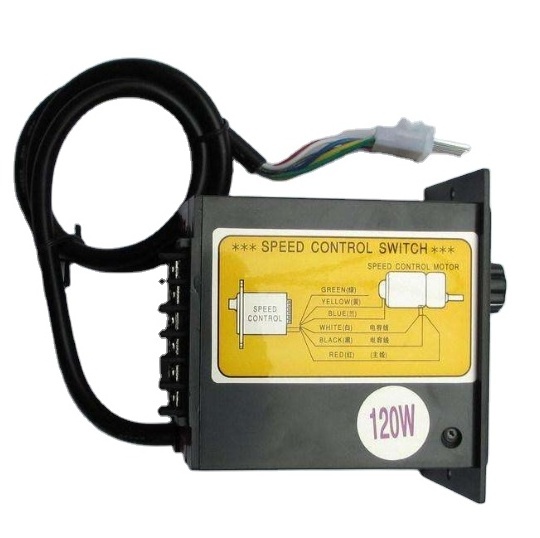

ac motor speed controller:
-
ac motor speed controller
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SEMC
-
Model Number:
-
available on demand
-
ac motor speed controller:
-
ac motor speed controller
YTSP ac motor speed controller Electrical machinery performance
The rated voltage is 380V and the frequency is 50Hz.In accordance with the requirement of different ranges of speed regulation and power source for application, the ratings of voltage and frequency(such as 400V,440V,460V and 60Hz and so on)can be also redetermined.The motors of 400V rated voltage and connection, after changed into Y-connection,can be suitable for application of 690V mains Voltage.
The insulation of motors is of Class F or H.The insulation structure has the adaptability to high carrier frequency voltage supplied by frequency converter.
Speed can be adjusted in a wide range. IC411 motors can achieve the speed regulation with constant torque at 10~50Hz and with constant output at 50~70Hz.IC416 motors can,under the condition of open-loop U/f control,maintain torque constant during 3~50Hz and output constant during 50~100Hz(50~70Hz for 4P motors of frame size 355 and motors of frame size 400).And under the condition of vector control, speed range can be even expanded.
|
Type |
Nominal Power |
Rated Current |
Rated Torque |
Break Torque Multiple |
Slip |
Weight(kg) |
|
|
(kW) |
(A) |
(N.m) |
(Times) |
(%) |
IC416 |
IC411 |
|
|
YTSP90S-4 |
1.1 |
3 |
7 |
2.5 |
5.5 |
17 |
15 |
|
YTSP90L-4 |
1.5 |
4 |
9.5 |
27 |
25 |
||
|
YTSP100L1-4 |
2.2 |
5.2 |
14 |
4.2 |
33 |
30 |
|
|
YTSP100L2-4 |
3 |
7 |
19 |
37 |
34 |
||
|
YTSP112M-4 |
4 |
9 |
25.4 |
44 |
40 |
||
|
YTSP132S-4 |
5.5 |
11.5 |
35 |
2.8 |
80 |
72 |
|
|
YTSP132M-4 |
7.5 |
15.5 |
47.7 |
97 |
89 |
||
|
YTSP160M-4 |
11 |
22 |
70 |
2.2 |
125 |
113 |
|
|
YTSP160L-4 |
15 |
29 |
95.5 |
140 |
128 |
||
|
YTSP180M-4 |
18.5 |
36.8 |
117.1 |
1.8 |
210 |
190 |
|
|
YTSP180L-4 |
22 |
42 |
140 |
250 |
230 |
||
|
YTSP200L-4 |
30 |
58 |
190.9 |
1.5 |
300 |
275 |
|
|
YTSP225S-4 |
37 |
70 |
235.5 |
1.4 |
360 |
330 |
|
|
YTSP225M-4 |
45 |
84 |
286.4 |
400 |
370 |
||
|
YTSP250M-4 |
55 |
105 |
350.1 |
480 |
450 |
||
|
YTSP280S-4 |
75 |
136 |
477.4 |
1.1 |
565 |
530 |
|
|
YTSP280M-4 |
90 |
162 |
572.9 |
680 |
645 |
||
|
YTSP315S-4 |
110 |
200 |
700.2 |
1.0 |
870 |
830 |
|
|
YTSP315M1-4 |
132 |
235 |
840.3 |
1025 |
985 |
||
|
YTSP315M2-4 |
160 |
280 |
1018.5 |
1095 |
1055 |
||
|
YTSP315L-4 |
200 |
360 |
1273.3 |
1160 |
1120 |
||
|
YTSP355M-4 |
250 |
440 |
1591.7 |
0.6 |
1600 |
1555 |
|
|
YTSP355L-4 |
315 |
545 |
2005.5 |
1800 |
1755 |
||
|
YTSP400L1-4 |
355 |
610 |
2260 |
0.8 |
2400 |
||
|
YTSP400L2-4 |
400 |
690 |
2547 |
2700 |
|||
