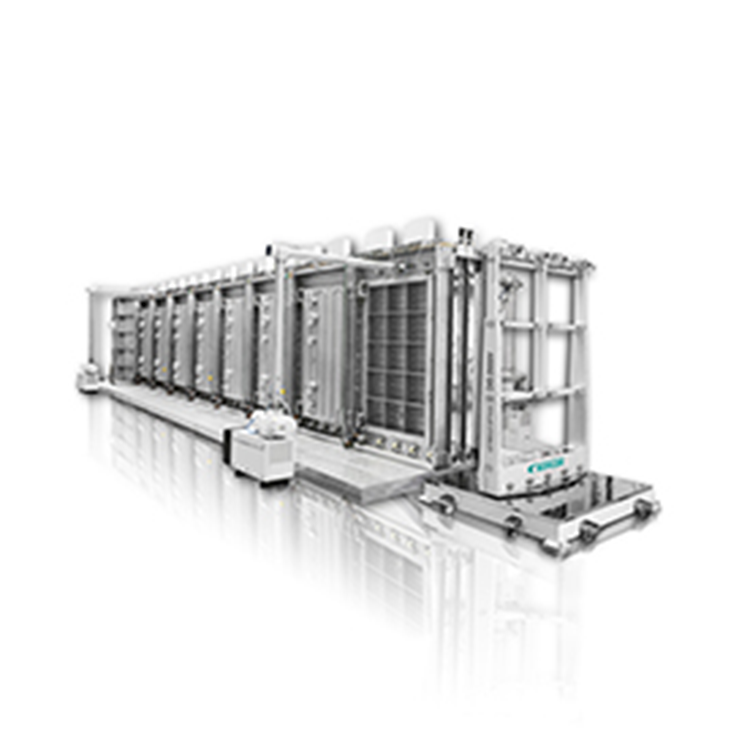

Chamber type
|
Vertical and horizontal method of multi-chamber
|
|
|
|
Applied material
|
Glass and other plastic, metal materials
|
|
|
|
Substrate size
|
Vertical type
|
2,200mm x 2,500mm
|
|
|
|
Horizontal type
|
1,500mm x 1,800mm
|
|
|
Tact time
|
60 sec or less (Static method) 35 sec or less (Dynamic method)
|
|
|
|
Coating source
|
Sputter source
|
Rotary cathode, Planar cathode
|
|
|
|
Thermal source
|
Crucible, E-beam
|
|
|
Coating material
|
Metal material
|
Al, Ti, Cr, Cu, NiCr, Ni, Ag, other metal material
|
|
|
|
Reactive material
|
TiO2, Nb2O5, SiO2, TIO, SiAlOx, MoOx, other nitride / oxide material
|
|
|
Power supply
|
DC, Pulse DC, MF
|
|
|
|
Thickness uniformity
|
±10% or less (Static film) ±5% or less (Moving film)
|
|
|
|
Measuring instrument
|
Sheet resistance, optic (Transmittance, reflectance, color-difference meter)
|
|
|
|
|
plasma emission monitor, RGA
|
|
|
|
Household appliances field
|
Decorative coating on household products and exterior of mobile devices
|
|
|
|
Energy field
|
Architectural window glass, solar cell
|
|
|
|
Other industrial field
|
Metal thin film and oxide thin film, multi-layered thin film coating based application field
|
|
|
