Packing meterial: one unit of satellite antenna mast(main pole and all accessories)to be wrapped with EPE and then to be packed into a plywood case.
Gross weight: 90kgs
Package meas: 255*30*27
- Product Details
- {{item.text}}
Quick Details
-
Name:
-
High Mast Lighting Tower And Telescopic Antenna Mast
-
Extended length:
-
2-45m Telescopic Crank Mast
-
Closed length:
-
1-4m (Bottom base included)
-
Application:
-
lightning, WiFi Antennas ,VHF / UHF Antennas,camera,
-
Material:
-
aluminum alloy, stainless steel, fiberglass
-
number of sections:
-
3-11 Telescopic Crank Mast
-
Wind load::
-
working rate:25m/s Max rate:35m/s
-
Temperature::
-
working temp:-40--+50C Storage Temp:-55--+70C
-
Bottom base::
-
Thickness: 10mm
-
Rotation platform:
-
Diameter:100-180mm
Quick Details
-
Brand Name:
-
talents
-
Model Number:
-
TAL-M15-2.45-10
-
Place of Origin:
-
Tianjin, China
-
Name:
-
High Mast Lighting Tower And Telescopic Antenna Mast
-
Extended length:
-
2-45m Telescopic Crank Mast
-
Closed length:
-
1-4m (Bottom base included)
-
Application:
-
lightning, WiFi Antennas ,VHF / UHF Antennas,camera,
-
Material:
-
aluminum alloy, stainless steel, fiberglass
-
number of sections:
-
3-11 Telescopic Crank Mast
-
Wind load::
-
working rate:25m/s Max rate:35m/s
-
Temperature::
-
working temp:-40--+50C Storage Temp:-55--+70C
-
Bottom base::
-
Thickness: 10mm
-
Rotation platform:
-
Diameter:100-180mm
Product Description

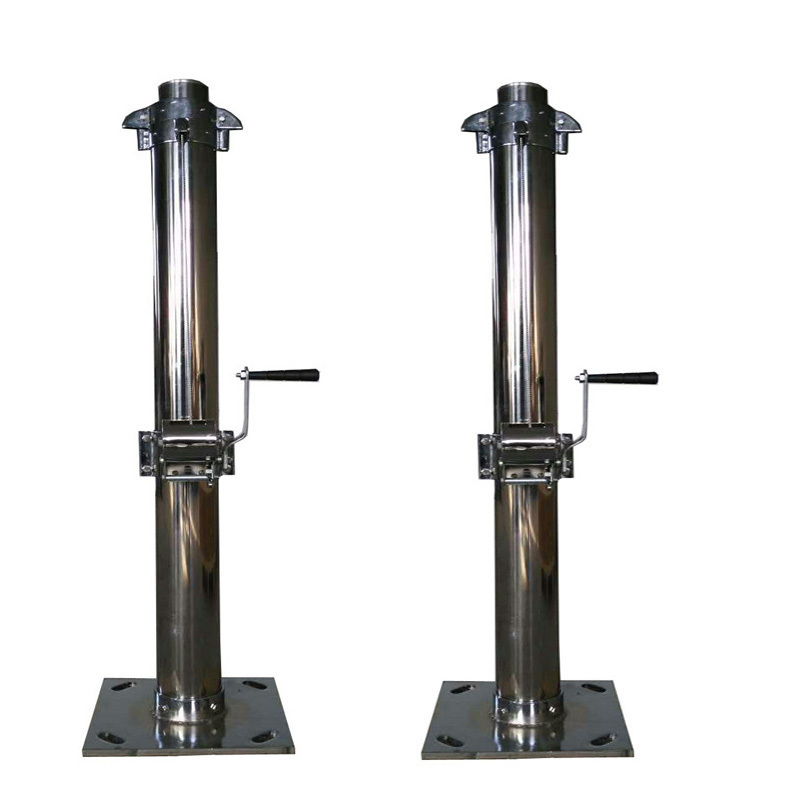

manual telescopic mast is composed of three sections,the main pole,manual lifting power,connection wire
rope.Hand lifting and screw nut power systerm generate upward momentume.The max payload mainlydepends on sections,height, diameter ,the bottom base,and the tripod,pulling cord ,as well the ground or vehicle
situation.
Screw nut transmission systerm utilizing transformation of force,make a small hand power produce great
upward momentum. Combination part tightness and aluminum alloy material of the mast let no water retention ,
no rain go in.
The mast available extended height is 2m to 45m.The payload up to 300kg from 5kg.
It can help lamplight,camera,ham radio,photography,antenna,yagi ,lightning rod,or else communication devices.......
It can be used on the ground, vehicle mounted ,trailer , the wall or the mine......
Screw nut transmission systerm utilizing transformation of force,make a small hand power produce great
upward momentum. Combination part tightness and aluminum alloy material of the mast let no water retention ,
no rain go in.
The mast available extended height is 2m to 45m.The payload up to 300kg from 5kg.
It can help lamplight,camera,ham radio,photography,antenna,yagi ,lightning rod,or else communication devices.......
It can be used on the ground, vehicle mounted ,trailer , the wall or the mine......
|
Main Specifications.
|
|
|
|
|||
|
Closed length
|
2.45(Bottom base included)
|
|
|
|||
|
extended lengh
|
15m(Bottom base included)
|
|
|
|||
|
net wieght
|
63kgs( include tripod and other accessories)
|
|
|
|||
|
Max payload
|
10kgs
|
|
|
|||
|
wind load
|
working rate:25m/s Max rate:35m/s
|
|
|
|||
|
temperature
|
working temp:-40--+50C Storage Temp:-55--+70C
|
|
|
|||
|
outer tube diameter
|
30-105mm
|
|
|
|||
|
bottom base
|
Diameter:190mm Thickness: 10mm
|
|
|
|||
|
material
|
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel Pulling cord: stainless steel wire(OD:2mm) |
|
|
|||
|
color
|
the whole unit will be in green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in green color.Technology: painting
|
|
|
|||
|
main pole in sections
|
Section No. OD Thickness
1# 42mm 3.0mm 2# 55mm 3.0mm 3# 69mm 3.0mm 4# 83mm 3.0mm 5# 98mm 3.0mm 6# 114mm 3.0mm 7# 132mm 3.0mm |
|
|
|||
Details
Accessories.
Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile.Rotary bearing for whirling.
If you have other
accessories requirement,
please
contact us separately
.
Surface treatment .
Painting or Anodizing
Color :
green, yellow, white, bronze... ...any color OEM is available.
Packing & Delivery
15m hand lifting telescopic mobile satellite antenna mast.
Our Service
OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option
One year free after-sale warranty after delivery
Catalog
we produce telescopic mast manual lifting from 2m to 45m,for payload lights,camear,ham radio,yagi ,lightning rod,or telecommunication devices.Bellow is our catalogue of usual models for your reference.
Besides,we can design different of models for ODM and OEM.
|
Extended height
(m)
|
No. Of section
|
Retracted height(m)
|
Outer tube range(mm)
|
Self weight
(kg) |
Max.payload
(kg) |
|
3
|
3
|
1.0
|
70-90
|
15
|
20
|
|
4
|
3
|
1.5
|
50-80
|
15
|
30
|
|
4
|
3
|
1.0
|
70-90
|
16
|
20
|
|
4
|
3
|
1.6
|
60-80
|
14
|
10
|
|
5
|
4
|
1.65
|
50-80
|
17
|
10
|
|
5
|
5
|
1.2
|
40-90
|
20
|
15
|
|
5
|
5
|
1.5
|
50-90
|
20
|
60
|
|
5
|
6
|
1.7
|
60-130
|
35
|
100
|
|
6
|
5
|
1.7
|
50-90
|
21
|
10
|
|
6
|
6
|
1.5
|
60-130
|
40
|
100
|
|
6
|
7
|
1.3
|
40-130
|
32
|
60
|
|
7
|
7
|
1.8
|
40-105
|
23
|
30
|
|
8
|
8
|
1.5
|
40-130
|
34
|
20
|
|
9
|
7
|
1.8
|
40-105
|
25
|
40
|
|
9
|
7
|
1.8
|
40-105
|
25
|
30
|
|
9
|
7
|
1.8
|
60-160
|
43
|
100
|
|
9
|
7
|
1.9
|
30-90
|
25
|
5
|
|
10
|
7
|
1.95
|
30-90
|
26
|
10
|
|
10
|
7
|
2
|
30-105
|
31
|
40
|
|
12
|
7
|
2.2
|
30-90
|
28
|
10
|
|
12
|
7
|
2.1
|
30-90
|
28
|
15
|
|
12
|
8
|
2.2
|
40-130
|
44
|
40
|
|
15
|
8
|
2.45
|
30-105
|
33
|
10
|
|
15
|
9
|
2.6
|
30-130
|
40
|
35
|
|
15
|
7
|
2.5
|
70-200
|
200
|
70
|
|
16
|
8
|
2.6
|
30-105
|
35
|
10
|
|
18
|
9
|
2.7
|
30-130
|
47
|
10
|
|
18
|
9
|
3.2
|
30-130
|
48
|
30
|
|
18
|
7
|
3.7
|
50-130
|
47
|
100
|
|
20
|
9
|
2.95
|
30-130
|
55
|
10
|
|
20
|
8
|
3.20
|
40-130
|
58
|
20
|
|
22
|
9
|
3.15
|
30-130
|
58
|
10
|
|
25
|
10
|
3.4
|
30-150
|
72
|
10
|
|
25
|
10
|
3.5
|
80-280
|
90
|
250
|
|
25
|
9
|
3.6
|
40-150
|
71
|
20
|
|
30
|
10
|
3.85
|
30-150
|
84
|
10
|
|
35
|
10
|
4.5
|
40-180
|
130
|
25
|
