Quick Details
-
Brand Name:
-
Hirschmann
-
Product name:
-
industrial ethernet Rail Switch
-
Model:
-
SPIDER II 8TX/2FX EEC
-
Brand:
-
Hirschmann
-
Warranty:
-
1 Year
-
Weight:
-
246g
-
Dimension:
-
25 mm x114 mm x79 mm
-
Ports:
-
8 x 10/100BASE-TX
-
Operating temperature:
-
-40-+70 °C
-
Keywords:
-
Hirschmann switch
Quick Details
-
Type:
-
Enterprise Switch
-
Model Number:
-
SPIDER II 8TX/2FX EEC
-
Place of Origin:
-
Germany
-
Brand Name:
-
Hirschmann
-
Product name:
-
industrial ethernet Rail Switch
-
Model:
-
SPIDER II 8TX/2FX EEC
-
Brand:
-
Hirschmann
-
Warranty:
-
1 Year
-
Weight:
-
246g
-
Dimension:
-
25 mm x114 mm x79 mm
-
Ports:
-
8 x 10/100BASE-TX
-
Operating temperature:
-
-40-+70 °C
-
Keywords:
-
Hirschmann switch

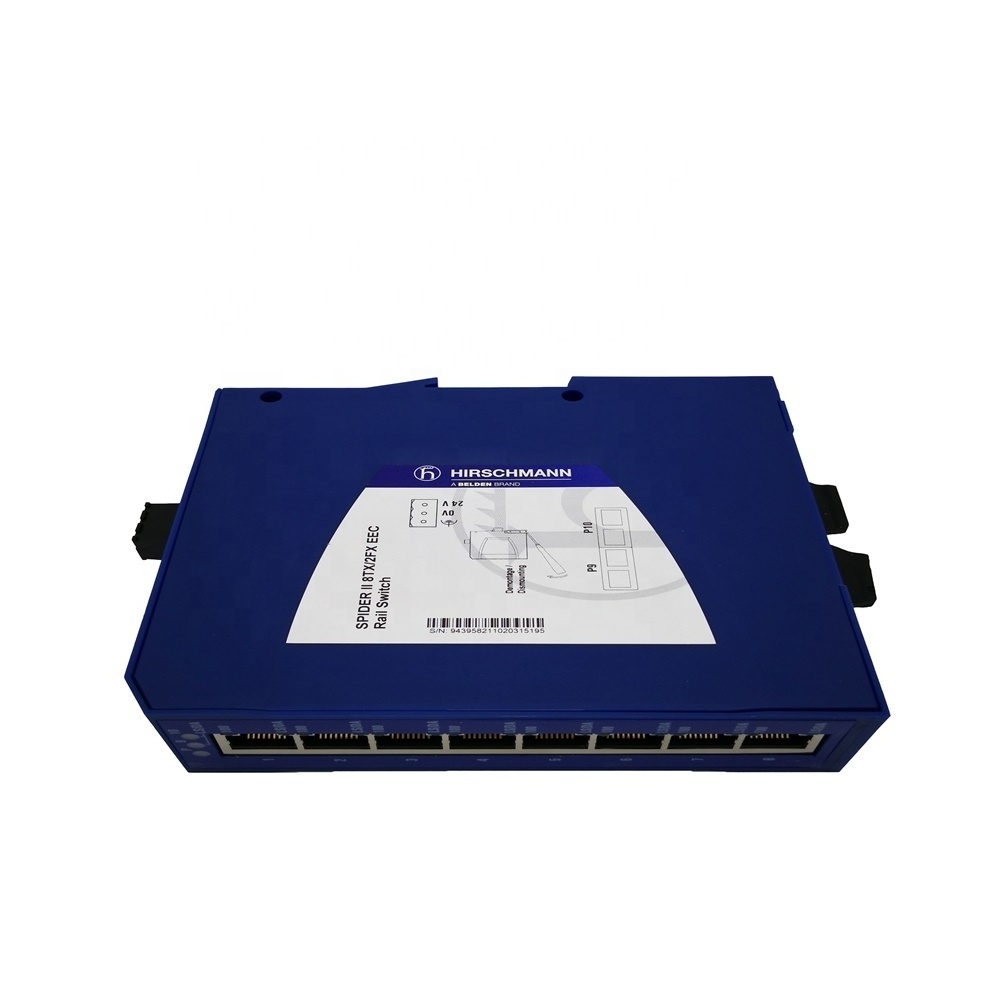

Hirschmann Switch// SPIDER II 8TX/2FX EEC // Unmanaged 10-port Switch
Unmanaged Industrial Ethernet DIN Rail Mount Switch with extended temperature range, store and forward switching mode, 8 x 10/100 Mbit/s RJ45 2 x 100 Mbit/s MM SC
Technical Specifications
|
Description |
Entry Level Industrial ETHERNET Rail-Switch, store and forward switching mode, Ethernet (10 Mbit/s) and Fast-Ethernet (100 Mbit/s) |
|
Part Number |
943 958-211 |
|
Port type and quantity |
8 x 10/100BASE-TX, TP-cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity, 2 x 100BASE-FX, MM-cable, SC sockets |
More Interfaces
|
Power supply /signaling contact |
1 x plug-in terminal block, 3-pin, no signaling contact |
Network size
|
Twisted pair (TP) length of cable |
0-100 m |
|
Single mode fiber (SM) 9/125 µm: |
n/a |
|
Multimode fiber (MM) 50/125 µm |
0 - 5000 m (Link Budget at 1310 nm = 0 - 8 dB; A=1 dB/km; BLP = 800 MHz*km) |
|
Multimode fiber (MM) 62.5/125 µm: |
0 - 4000 m (Link Budget at 1310 nm = 0 - 11 dB; A = 1 dB/km; BLP = 500 MHz*km) |
|
Line / star topology cascadibility |
any |
Power requirements
|
Current consumption at 24 V DC: |
max. 330 mA |
|
Operating voltage |
9,6 V DC - 32 V DC |
|
Power consumption |
max. 8.4 W 28.7 Btu(IT)/h |
Diagnostics features
|
Diagnostic functions: |
LEDs (power, link status, data, data rate) |
Ambient conditions
|
MTBF (MIL-HDBK 217F: Gb 25 ºC) |
55.2 Years |
|
Operating temperature: |
-40-+70 °C |
|
Storage/transport temperature: |
- 40-+85 °C |
|
Relative humidity (non-condensing): |
10-95 % |
Mechanical construction
|
Dimensions (WxHxD): |
25 mm x114 mm x79 mm |
|
Weight: |
260 g |
|
Mounting: |
DIN Rail, |
|
Protection class: |
IP30 |
