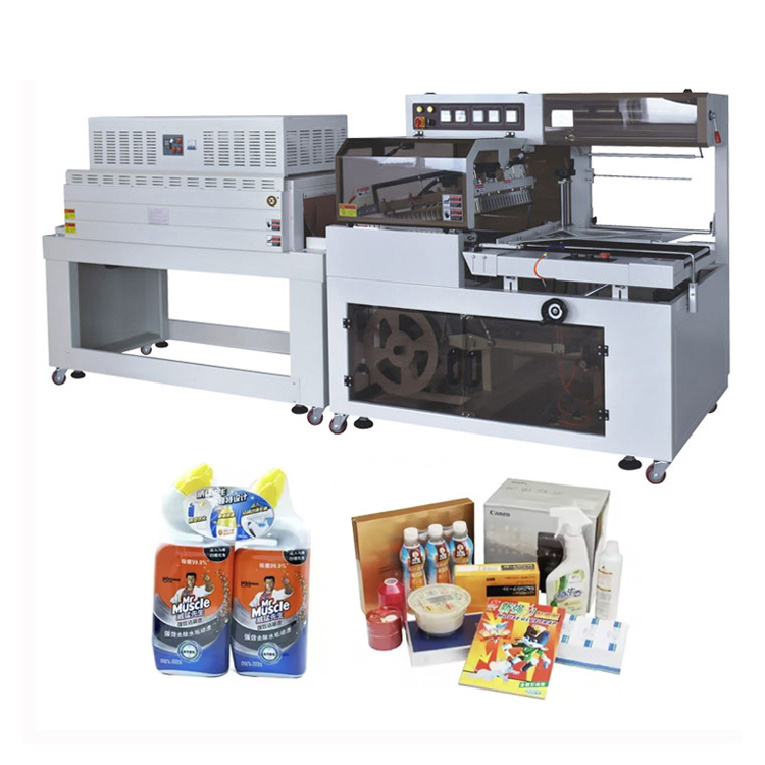

Automatic L Bar Sealer L Bar Sealing Machine Soap Small Heat Tunnel Shrink Wrap Machine With Heat Gun
Automatic L Bar Sealer L Bar Sealing Machine Soap Small Heat Tunnel Shrink Wrap Machine With Heat Gun
Automatic L Bar Sealer L Bar Sealing Machine Soap Small Heat Tunnel Shrink Wrap Machine With Heat Gun
Automatic L Bar Sealer L Bar Sealing Machine Soap Small Heat Tunnel Shrink Wrap Machine With Heat Gun
Automatic L Bar Sealer L Bar Sealing Machine Soap Small Heat Tunnel Shrink Wrap Machine With Heat Gun
Automatic L Bar Sealer L Bar Sealing Machine Soap Small Heat Tunnel Shrink Wrap Machine With Heat Gun
Automatic L Bar Sealer L Bar Sealing Machine Soap Small Heat Tunnel Shrink Wrap Machine With Heat Gun
Automatic L Bar Sealer L Bar Sealing Machine Soap Small Heat Tunnel Shrink Wrap Machine With Heat Gun

Automatic L Bar Sealer L Bar Sealing Machine Soap Small Heat Tunnel Shrink Wrap Machine With Heat Gun

FOB Reference Price: Get Latest Price
≥1 Pieces
US $2900
≥100 Pieces
US $2700
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
220V/380V
Place of Origin:
Guangdong, China
Brand Name:
Custom
Dimension(L*W*H):
1510 * 880 * 1420MM
Weight:
300 KG
Marketing Type:
New Product 2024
Film material:
Hot Seal Film
Function:
Film Packaging Machine
Packing speed:
15~30pcs/min sealing and cutting machine
MOQ:
1 SET sealing and cutting machine
Packing type:
Sleeve Sealing Shrink
Usage:
Wrapping Products
Advantage:
Easy Operation
Certification:
ISO 9001,CE

Quick Details

Packaging Type:
Bottles, Bags, Film
Packaging Material:
Plastic
Driven Type:
Electric
Voltage:
220V/380V
Place of Origin:
Guangdong, China
Brand Name:
Custom
Dimension(L*W*H):
1510 * 880 * 1420MM
Weight:
300 KG
Marketing Type:
New Product 2024
Film material:
Hot Seal Film
Function:
Film Packaging Machine
Packing speed:
15~30pcs/min sealing and cutting machine
MOQ:
1 SET sealing and cutting machine
Packing type:
Sleeve Sealing Shrink
Usage:
Wrapping Products
Advantage:
Easy Operation
Certification:
ISO 9001,CE
Automatic L Bar Sealer L Bar Sealing Machine Soap Small Heat Tunnel Shrink Wrap Machine With Heat Gun
Product Name
LY-450 sealing and cutting machine
LY-550 sealing and cutting machine
HY-650 sealing and cutting machine
Production Speed
0-15 meters/minute
Bag Packaging Type
Thermal shrinkage
Packaging Size
Width ≤ 330MM(Width plus height+120 ≤ 520MM)
Width ≤ 430MM (width plus height ≤ 500MM)
Width ≤ 530MM (width plus height 600MM)
Length ≤ 500MM Height ≤ 150MM
Length ≤ 600mm, Height ≤ 150mm
Length ≤ 700MM, Height ≤ 150
Formula For Calculating Film Width
(Actual product width+height)+120mm is equal to the film width
Packaging Film Width
≤ 520mm
≤ 620mm
≤ 720mm
Outer Diameter of Packaging Film
≤ 290mm
Packaging Film Material
POF folding film
Machine Operation Height
750-850mm
Total Power
1.5KW
Power Supply Type
220kw 50/60HZ
Machine Weight
300kgs
Machine Dimensions
1510 * 880 * 1420 (length x width x height)
1710 * 980 * 1420 (length x width x height)
1910 * 1080 * 1480 (length x width x height)
Products Description
Introduction to Packaging Machine Types The packaging machine is a kind of machine that packs the products so as to protect the goods. It has many kinds of packing machine, such as the shrink packing machine, film wrapper machine, vacuum packing machine, carton sealers and so on. All that we mentioned can be offered to you. Shrink Packaging Machine The shrink packaging is the process of shrinking, does not affect the quality of the package, it can shrink quickly and perfectly. The packaged product can be sealed, moisture-proof, impact-proof, suitable for tight packaging of multiple articles and tray packaging. Film Wrapper Machine This type of packaging machine has the functions of forming, filling and sealing. The types of molding include bag molding, bottle molding, box molding, blister molding, and melt molding. Vacuum Packing Machine The vacuum packaging machine is placed in the package of the packaged object through the suction nozzle, evacuates the air, exits the suction nozzle, and then completes the sealing. Carton Sealers A sealing machine is a machine for sealing a container filled with a package. The SenPengKang packaging machine is the best choice for you to choose from, we had more than 10 years in manufacturing different kind of kitchen machine, one of is the packaging machine. All kind of packaging machine has a year warranty and has a high quality with reasonable price. If you have any questions about how to use it, we will offer professional guidance. Additional, we will ship the accessories for free for you if there is not the man-made damage.
Product introduction: 450A series "L" type automatic sealing and cutting machine is an "L" type sealing and cutting machine with automatic unmanned operation. It is widely used in the flow production of mass production packaging, high working efficiency, automatic film feeding and punching device and manual adjustment guide. Membrane system and manually adjusted feed conveyor platform for products of different widths and heights. Technical characteristics 1. The sealing knife adopts Teflon coating anti-stick high temperature resistant aluminum alloy knife, the sealing will not crack,it will not be coking, no smoke and zero pollution. 2, automatic feeding, the length can also be automatically adjusted through the combination of electric eye and timer. Equipped with an induction motor to automatically take up scrap. 3, equipped with imported detection photoelectric, horizontal and vertical detection of a group, easy to switch selection, for thin and small packaging, can easily complete the sealing and packaging operations. 4. The temperature controller adopts digital display temperature controller and built-in PID function. The sealing knife temperature is accurate and can be set freely. The sealing knife itself also has an automatic protection function to prevent miscuting of the package. 5. When the size of the package is changed, the adjustment is very simple, and there is no need to change the mold and the bag maker. 6, different sizes of products can also be combined with packaging to achieve packaging results. 7. The sealing and cutting part of the machine is equipped with a plexiglass protective cover and an automatic alarm function,which greatly improves the operator's safety. 8. The whole set of machines truly realizes the unmanned operation connection with the production line.
1. Emergency Stop Switch
In Any Emergency, The Emergency Stop Switch Must Be Pressed Immediately. Hold The Red Cover And Turn It Clockwise
2. Film Handle
Send the film handle, when the film isworn,the handle is topped up. After the film is finished, immediately pull the handle to the position shown in the figure.
3. Blowing Mouth
The Thin Product Is Properly Blown Into The Air To Make The Shrinking Effect More Beautiful, And The Corners Are Not Easily Shrunk.
4. Working Desk
Put The Product Separately, Do Not Squat Or Stick It In, Avoid Cutting The Product.
5. Waste Film Recycling Wheel
It Is Used To Recover The Waste Side After Cutting The Film. After The Waste Wheel Is Full, Unscrew The Handle And Take Out The Waste Film, Which Is Convenient And Simple.
6. Height Adjustment Handle
According To The Actual Height Of The Product, Shake The Triangle To A Height Of about 10 Mm Above The Product.
7. Red Silicone Tube+Ptfe Tube
Fast Heating Up Upon Startup, Uniform Heating, And Stable Operation When The Temperature Reaches The Set Temperature, The Machine Stops Heating
8. Safety Cover
The Working Part Of The Cutter Of The Sealing And Cutting Machine Is Protected By A Safety Shield To Ensure The Safety Of The User.
9.Japanese Imported Blades
Good Material Selection, Durable, And The Sealing And Cutting Blade Is Coated With Teflon,Anti Adhesive And High Temperature Resistant, Sealing Is Not Easy To Crack,The Sealing Frame Is Made Of High-Quality Alloy Steel That Is Not Easily Deformed.
