Quick Details
-
Type:
-
Wired and Wireless
-
Brand Name:
-
ZBT
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
wifi6 5G wireless router
-
SIM card slot:
-
2 SIM Card Slots
-
Chipset:
-
MT7981B
-
Power interface:
-
DC5.5*2.1MM
-
Botton:
-
1 reset button, 1 MESH button
-
4G/5G interface:
-
2 *M.2 ports
-
RAM:
-
DDR4 1GB
-
Flash:
-
Nor Flash 16MB(Choosable) SPI NAND Flash 128MB EMMC 8GB (Choosable)
-
Routing system exception:
-
Module dialing exception
-
restart the whole system:
-
Only restart the module
Quick Details
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G & 5G
-
2.4G Wi-Fi Transmission Rate:
-
1200 Mbps
-
Type:
-
Wired and Wireless
-
Brand Name:
-
ZBT
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
wifi6 5G wireless router
-
SIM card slot:
-
2 SIM Card Slots
-
Chipset:
-
MT7981B
-
Power interface:
-
DC5.5*2.1MM
-
Botton:
-
1 reset button, 1 MESH button
-
4G/5G interface:
-
2 *M.2 ports
-
RAM:
-
DDR4 1GB
-
Flash:
-
Nor Flash 16MB(Choosable) SPI NAND Flash 128MB EMMC 8GB (Choosable)
-
Routing system exception:
-
Module dialing exception
-
restart the whole system:
-
Only restart the module
Product Description

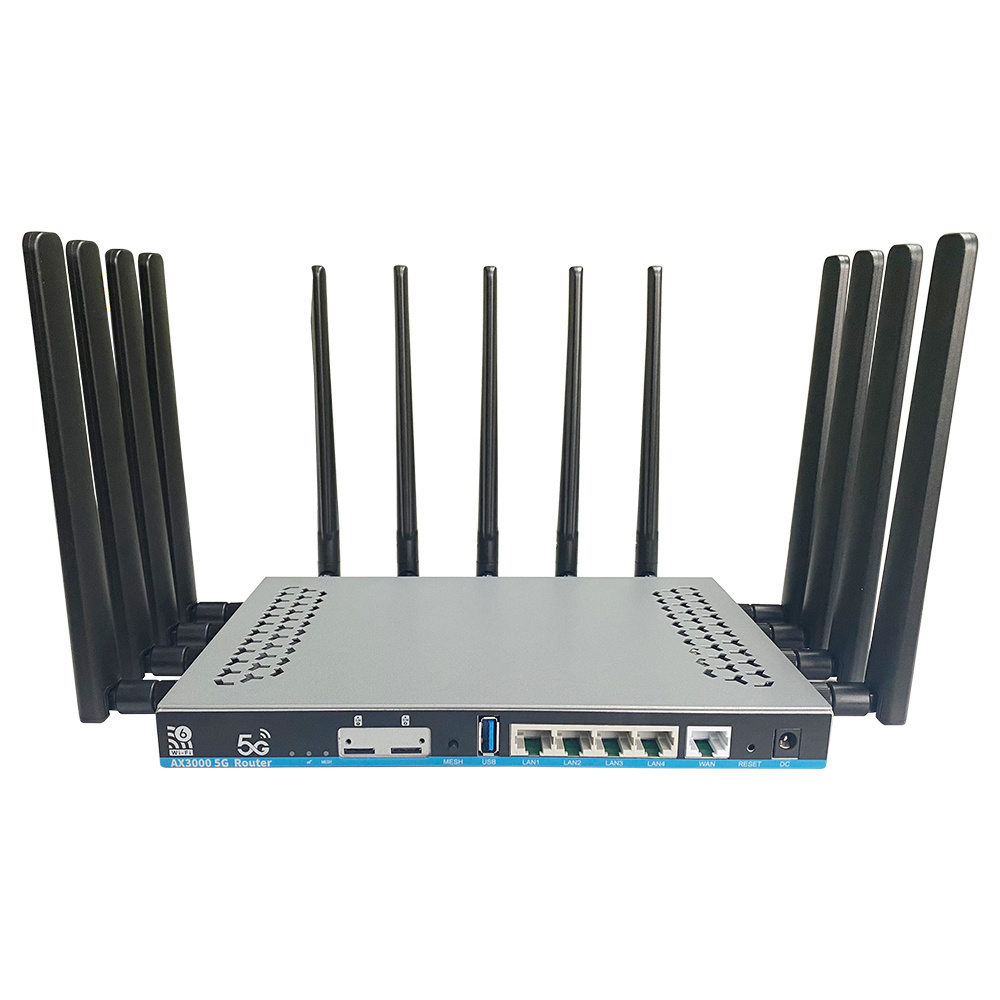

Using MT7981B solution gigabit port wifi6 5G 3000Mbps with two SIM card slots wireless router
Reminder: The price on the Alibaba platform does not include the 4G/5G module, if you want to install the module, please contact me.
1 review
1.1 Brief overview
This document describes the electrical characteristics, RF performance, dimensions and application environment of the Z8102AX-M2. With the introduction
of this document, end users or developers can quickly understand the hardware
functions of Z8102AX-M2. Z8102AX-M2 is a 5G/4G+WIFI6 home CPE router, which can access the
Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, and then share the Internet network through wireless WiFi 6 and 1000Mbps wired LAN.
1.2 Reference standards
Related standard specifications:
1)USB3.0/USB2.0 bus standard
2)PCI- Express bus standard
3)SIM/USIM interface standard
4)IEEE802.11n/g/b/a/ac/ax
5)IEEE802.3/802.3u/802.ab
6)PCI Express M.2 Specification Rev1.1
7)5G/4G mobile communication standard, specifically determined by the
selected 5G/4G mobile communication module
8）5G dual sim router with both work same time Active-Active
3 Product main features
1) Using MT7981B solution, ARM Cortext-A53 dual-core CPU, main frequency up
to 1.3GHZ
2)Adopt independent WIFI6 chip, MT7976CN, the speed is up to 3000Mbps
3)High-speed 1GB DDR4, with 128MB SPI NAND Flash
4)1WAN+4LAN 1000M adaptive network port, support automatic flip (Auto
MDI/MDIX).. 5)Support "one-key flashing mode", that is, long press the reset button to enter the
rescue flashing mode... 6)Support "one-key" MESH networking... 7)Built-in 2 M.2/Mini-PCIE standard interfaces (choose one of the two), which can
be used to connect to 5G/4G mobile communication modules
8)External standard Nano SIM card (small card) interface and built-in eSIM (QFN-8
6mmx5mm) card interface, support SIM/USIM card
9)External high-gain WIFI antenna, 360-degree wireless signal without dead angle
10） 5G dual sim router with both work same time Active-Active
Specification
|
item
|
value
|
|
With Modem Function
|
NO
|
|
Standards And Protocols
|
Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac, Wi-Fi 802.11a, Wi-Fi 802.11ax
|
|
Wi-Fi Supported Frequency
|
2.4G & 5G
|
|
Supports WDS
|
Yes
|
|
Supports WPS
|
Yes
|
|
Wi-Fi Transmission Standard
|
802.11b
|
|
Wired Transfer Rate
|
10/100/1000Mbps
|
|
2.4G Wi-Fi Transmission Rate
|
1200 Mbps
|
|
Encryption Type
|
WPA2, WPA, WEP
|
|
Type
|
Wired and Wireless
|
|
Application
|
Network Security
|
|
Function
|
Voip, FireWall, QoS, VPN, SDK available
|
|
LAN Ports
|
4
|
|
WAN Ports
|
1 x10/100/1000Mbps
|
|
5G Wi-Fi Transmission Rate
|
None
|
|
Product name
|
wifi6 5G wireless router
|
|
SIM card slot
|
2 SIM Card Slots
|
|
Chipset
|
MT7981B
|
|
Power interface
|
DC5.5*2.1MM
|
|
Botton
|
1 reset button, 1 MESH button
|
|
4G/5G interface
|
2 *M.2 ports
|
|
RAM
|
DDR4 1GB
|
|
Flash
|
Nor Flash 16MB(Choosable) SPI NAND Flash 128MB EMMC 8GB (Choosable)
|
|
Routing system exception
|
Module dialing exception
|
|
restart the whole system
|
Only restart the module
|
Packing & Delivery
1.Neutral packing :1pcs/ box,20pcs /carton.
2.OEM packing can be accepted.
