There are 6 welding modes and multiple welding nozzles to meet different welding needs; it has a safety sensor function, which
emits a laser after touching the metal and automatically locks the light when it is removed; the spiral jittery function, the
width of the weld can be adjusted, and the welding ability is significantly improved.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
APEX
-
Single Pulse Energy:
-
120J
-
Pulse Width:
-
<0.6nm
-
Wavelength:
-
1064nm
-
Focal Spot Diameter:
-
0.2-2mm
-
Weight (KG):
-
250 KG
-
Marketing Type:
-
New Product 2023
-
Warranty of core components:
-
2 Year
-
Core Components:
-
Laser source, Water chiller, Laser welding head, Wire feeder
-
Product name:
-
Handheld Laser Welding Machine
-
Control System:
-
SUP Weiye Brand
-
Welding head:
-
SUP Weiye Welding Head
-
Welding mode:
-
Continuous/Modulation
-
Laser wavelength:
-
1064nm
-
Laser power:
-
1000W 2000W 1500W 3000W (optional)
-
Cooling System:
-
Water Cooled
-
Laser source:
-
Raycus IPG JPT Max Optional
-
Keywords:
-
High-quality Laser Welding Machine
-
After-sales Service Provided:
-
Online Support
Quick Details
-
Max. Output Power:
-
2000W
-
Use:
-
Metal Welding
-
Laser Source Brand:
-
RAYCUS
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
APEX
-
Single Pulse Energy:
-
120J
-
Pulse Width:
-
<0.6nm
-
Wavelength:
-
1064nm
-
Focal Spot Diameter:
-
0.2-2mm
-
Weight (KG):
-
250 KG
-
Marketing Type:
-
New Product 2023
-
Warranty of core components:
-
2 Year
-
Core Components:
-
Laser source, Water chiller, Laser welding head, Wire feeder
-
Product name:
-
Handheld Laser Welding Machine
-
Control System:
-
SUP Weiye Brand
-
Welding head:
-
SUP Weiye Welding Head
-
Welding mode:
-
Continuous/Modulation
-
Laser wavelength:
-
1064nm
-
Laser power:
-
1000W 2000W 1500W 3000W (optional)
-
Cooling System:
-
Water Cooled
-
Laser source:
-
Raycus IPG JPT Max Optional
-
Keywords:
-
High-quality Laser Welding Machine
-
After-sales Service Provided:
-
Online Support

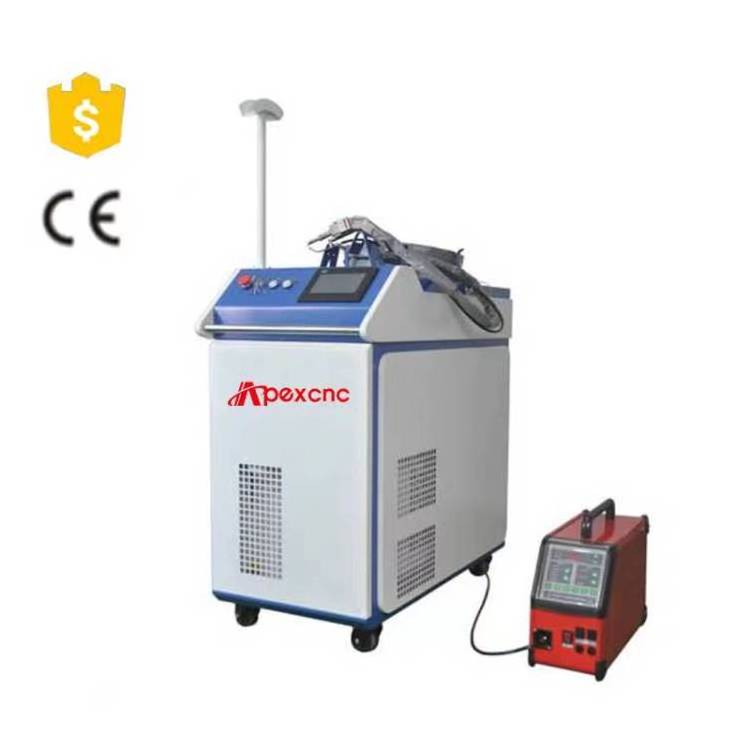

Easy to Operate handheld laser welder Steel Handheld Fiber Lazer Welding Machine with Auto Wire Feeder for Sale
Product Description
Features of fiber laser welding machine:
APEX laser hand-held fiber laser welding machine adopts the latest generation of fiber laser and is equipped with intelligent laser welding head.It has many advantages such as simple operation, beautiful welding line, fast welding speed and no consumables. Welding applications in metal materials such as thin stainless steel plates, carbon steel plates, and galvanized sheets can perfectly replace traditional argon arc welding and electric welding. Hand-held laser welding machine can be widely used in kitchen cabinets, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home and other industries.
Specifications
|
Model.No
|
1000W
|
1500W
|
2000W
|
3000W
|
|||
|
Operating Mode
|
Continuous/Modulation
|
|
|
|
|||
|
Laser head
|
Super 20S
|
|
|
|
|||
|
Laser Wavelength
|
1064-1080nm
|
|
|
|
|||
|
Laser source
|
Raycus/MAX
|
|
|
|
|||
|
Cooling mode
|
Water cooling
|
|
|
|
|||
|
Spot adjustment
|
0.2-5mm
|
|
|
|
|||
|
Power Requirements
|
220V
|
220V
|
220V
|
380V
|
|||
|
Machine Power
|
≤7KW
|
≤9KW
|
≤11KW
|
≤13KW
|
|||
|
Operating Environment Temperature Range
|
15-35ºC
|
|
|
|
|||
|
Working Environment Humidity Range
|
<70% No Condensation
|
|
|
|
|||
|
Welding Thickness Range
|
0.5-0.8MM
|
|
|
|
|||
|
Welding Line Requirements
|
≤0.5mm
|
|
|
|
|||
|
Welding Speed
|
0-120mm/s
|
|
|
|
|||
|
Machine Size
|
1190×1100×650mm
|
|
|
|
|||
Machine details
Dual-drive Handheld Swing Laser Head
Control Panel
The operation is simple and clear,and the system supports multiple languages.
Laser Source
Compared with similar products,the light laser has a higher photoelectric performance conversion ability ,a more stable beam,and a
stronger anti-reflection ability.
stronger anti-reflection ability.
Standard 15 Meters Optical Fiber
It is conventionally equipped with 15-meter optical fiber, which can realize long-distance, flexible welding in large areas and
reduce operating limitations.
reduce operating limitations.
Samples and Application
Application:
The laser welding machine is used to weld all kinds of metal materials. t can realize stainless steel mirror characters, stainless steel electroplating characters, stainless steel gold foil characters, precision stainless steel characters, precision aluminum characters, iron paint characters, etc. n addition, laser welding machines can also be used in lighting and mold industries, communication devices, medical, electronics, copper parts, aluminum part sand small welding processing industries.
