Quick Details
-
Model Number:
-
LHW-30 vehicle
-
Weight:
-
350kg
-
pump pressure:
-
2.0~3.0Mpa
-
total power:
-
4.8kw
-
spray range:
-
30m
-
spray flow:
-
1m3/h
-
air volume:
-
400 m3/min
-
air pressure:
-
650Pa
-
nozzle number:
-
24
-
protection level:
-
IP55
Quick Details
-
Sprayer Type:
-
fog cannon
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Blue Ocean
-
Model Number:
-
LHW-30 vehicle
-
Weight:
-
350kg
-
pump pressure:
-
2.0~3.0Mpa
-
total power:
-
4.8kw
-
spray range:
-
30m
-
spray flow:
-
1m3/h
-
air volume:
-
400 m3/min
-
air pressure:
-
650Pa
-
nozzle number:
-
24
-
protection level:
-
IP55
| Technical perameters | mist cannon LHW-30 Vehicle mounted automatic sprayer |
| Total Power(kw) | 4.8 |
| Fan type and power(kw) | jet fan 2.2 |
| Liquid pump type and power(kw) | plunger pump 2.2 |
| Hydraulic pump pressure(MPa) | 2.0~3.0 |
| Maximum spray range(m) | 30 |
| Horizontal rotation angle | ±160° |
| Pitch angle | -15~85° |
| Maximum coverage area(m3) | 2500 |
| Mist particle size(μm) | ≥20 |
| Spray flow(m3/h) | 1 |
| Nozzle Material | stainless steel |
| Air volume(m3/min) | 400 |
| Air pressure(Pa) | 650 |
| Protection level | IP55 |
| Using ambient temperature | -30~+50 |
| Control mode | manual/remote control |
| control distance(m) | ≤100 |
| Nozzle number | 24 |
| Machine weight(kg) | 350 |
| Power allocation(kw) | 8kw diesel generator/gasoline generator |
| Start mode | power startup |
| Type | vehicle mounted type |
With the rapid development of construction, coal, mine, steel plants, raw material yards, port terminals and other industries, a large amount of pollutive dust will be produced in the construction, mining, transportation, storage and other operational process, and dust pollution is one of the important sources of haze. Therefore, our company has independently developed LHW series environmental protection dust suppression cannon , the fog cannon sprayer can effectively control dust pollution, improve working environment, prevent accidents in coal mines , and play an important role in promoting safe production, safeguarding workers' health , maintaining environmental hygiene and sanitation.

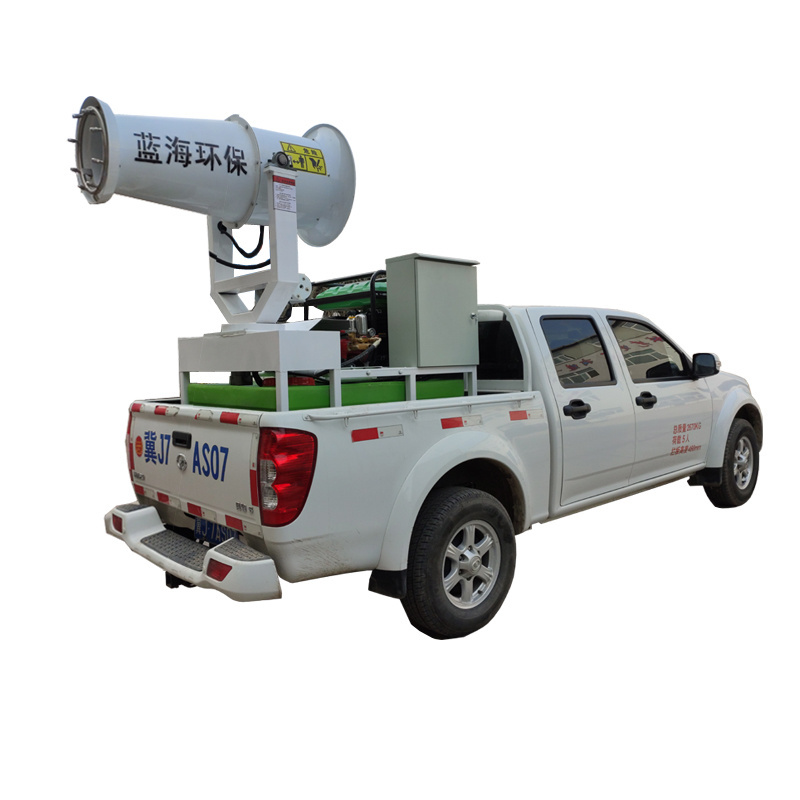

The vehicle mounted fully automatic spray er is equipped with an 8KW diesel generator, use diesel oil as fuel can improve the fuel economy , and can achieve stronger and more stable power output . The 8KW single-cylinder diesel generator has become the highlight part of this equipment.
The red appearance of the equipment is also the new color scheme of our company. Compared with previous equipment, the equipment's exterior spraying adopts a Matte non-bright surface spraying scheme. This spraying scheme can ensure that the spraying surface of the equipment will not crack when exposed to the sun for a long time.
The spray system also uses a 2.2KW jet fan, and the pitch / rotation is completely automatic and remotely controll ed. Compared with the previous equipment, the spray gun system is added in this equipment, which is equipped with 25 m spraying pipeline to facilitate the drug spraying operation.
Product Advantages
1. The jet fan is designed with double blades, not only reduce the power of motor, but also ensure the spray effect.
2. Equipped with environmental protection motor,pollution-free with low energy consumption.
|
Brief introduction of product - the mist humidifier equipment The high pressure mist humidifier equipment and mist cannon developed by Blue Ocaen are the ultimate tool for large scale humidification and dust suppression.By means of a powerful jet-fan, the cannon project a plume of finely-atomised water droplets (diameter ≥20μ m)into the air to suppress dust effectively over wide areas,it can propel mist up to 30~100 linear meters and can swivel with large horizontal rotation angle, allowing maximum ground coverage. |
|
Features of the product-the mist humidifier High efficiency and speedy spray ejection, strong penetration capability for dusty environment and greater adhension with mist beads. It can also save water effectively and reduce environmental pollution. The mist cannons require 3-phase, 380V power supply, can also be equipped with electric/diesel generator,allowing mobile operation. Upgraded for fully automatic operation and remote control: the whole oper ation process c an be controlled in the driver's cab. |
|
Standard packing packed in wooden cases
|
Complete after-sales service 1. Free technical support and free accessories supply. 2. Engineer available to service machinery overseas.
3. One year warranty is provided.
4. Long life technical guidance for free.
5. We always offer technical support, quick response, all your inquire will be replied in 24 hours. |
The company's products cover environmental protection long-range spray machine, dust suppressant spraying equipment, agricultural and forestry spraying equipment, sewage filter, industrial dust removal and other products.Since its establishment, the company has been committed to the research and development, design, production and sales of environmental protection dust removal equipment, with more than 300 sets of annual production equipment capacity, product targeted, dust removal efficiency is higher.At present, the long-range spray products designed by our company range from 30 meters to 200 meters, which can meet the needs of customers in various working conditions.Our continuous innovation in technology, steady improvement of product quality and perfect service system help customers save costs, improve efficiency and create value for customers in the long run.The products of the company are now serving the fields of coal, thermal power generation, metallurgy, coal chemical industry and petrochemical industry, port and dock storage and transportation, shipbuilding, agriculture, forestry, animal husbandry and fishery.The products are also widely used in landfills, public health places and other large areas of sterilization and epidemic prevention.Its dust cannons can also be used to reduce urban PM10 and PM2.5 haze, dust, sulfur dioxide, particulate suspended matter, effectively improve air quality.
Our Services & Strength
The products of the company passed the ISO9001:2008 quality management system certification JSO14001:2004 environmental management system certification and won several national utility model patents, has 20 years of experience in research and development,design,production, its product is easy to operate, stable performance, the advantages of low cost and long working life, we put forward "of yi science and technology as the foundation, in order to control air pollution" for the idea, the latest scientific research achievements into products to the world, with science and technology creating the future.
1. Q: How to visit our company? A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station (1hour), then we can pick up you to factory(40min). Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station(4.5 hours), then we can pick up you to factory(40min).
