- Product Details
- {{item.text}}
Quick Details
-
Bending Precision (Deg):
-
0.01
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HARSLE
-
Year:
-
2023
-
Power (kW):
-
3
-
Weight (KG):
-
500
-
Type:
-
bending Machines
-
Rated Power:
-
220V/380V
-
Weight:
-
230
-
Certification:
-
CE ISO
Quick Details
-
Machine Type:
-
Tube Bending Machine
-
Bending Radius (mm):
-
11 - 80
-
Max. Bending Angle (Deg):
-
30
-
Bending Precision (Deg):
-
0.01
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HARSLE
-
Year:
-
2023
-
Power (kW):
-
3
-
Weight (KG):
-
500
-
Type:
-
bending Machines
-
Rated Power:
-
220V/380V
-
Weight:
-
230
-
Certification:
-
CE ISO
Products Description

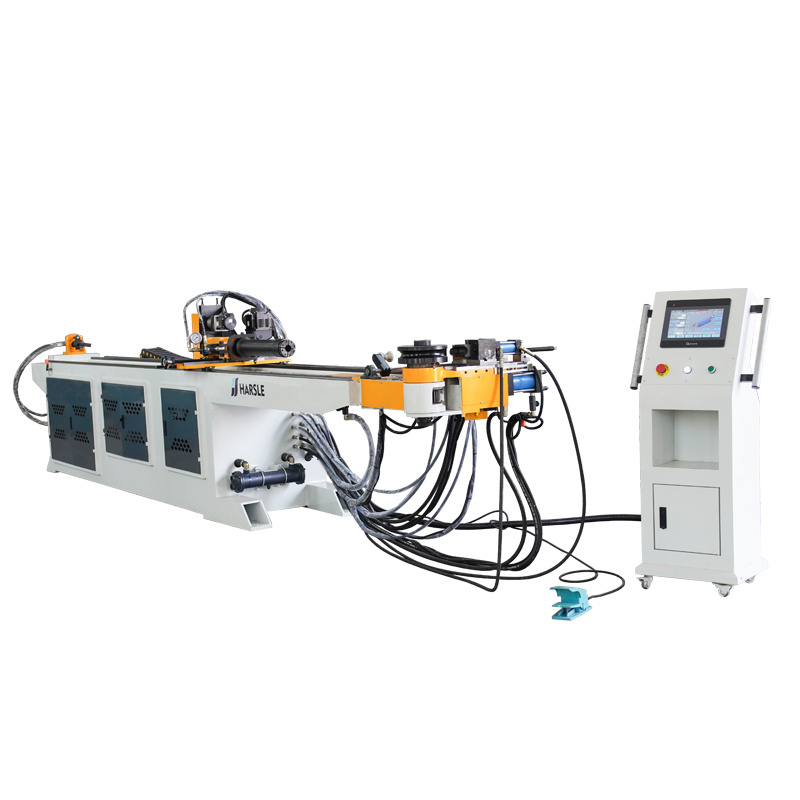

38CNC-2A-1S Pipe Bending Machine
The HARSLE 38CNC-2A-1S pipe bending machine has automatic error detection and the fault will be timely displayed on the screen so that the operator can discharge obstacles easily; all processing materials can be input by the touch screen; Each step of the bending can reset the compensation data, speed, release gap because of different material changes; Each bend of the same pipe can be programmed separately into 5 kinds of the action sequence, 10 sets of running speed so that the operator can use efficiently and reduce the pipe interference; The bending control and the corner feeding use servo motor to drive, with high bending angle precision and high efficiency; The equipment is particularly suitable for processing pipe fittings with many space angles and high precision requirements.
Product Details
Schneider Electrics
PLC
Servo Motor
Servo Driver
Main Motor
Hydraulic Valves
Bening Sample
Specifications
|
Axes
|
X1(X)
|
X2
|
R1(R)
|
R2
|
Z1
|
Z2
|
|
Stroke(mm)
|
750
|
750
|
150
|
150
|
/
|
/
|
|
Speed(mm/s)
|
500
|
500
|
180
|
180
|
2000
|
2000
|
|
Accuracy(mm)
|
0.02
|
0.02
|
0.05
|
0.05
|
0.05
|
0.05
|
|
Motor
|
servo motor
|
servo motor
|
servo motor
|
servo motor
|
servo motor
|
servo motor
|
|
Mechanical System
|
ball screw
|
ball screw
|
rack
|
rack
|
rack
|
rack
|
Certifications
Manufacturing Technique
Cutting
Lathe
Milling
Drilling
Welding
Boring
Package & Shipping
FAQ
What will be the payment method for the transaction?
We can accept T/T, Irrevocable Letter of credit(LC), Cash, Bank guarantee, Western Union and etc.
How is about the quality of HARSLE machines
We hare world-class R&D team to support the quality of our machines, our products have got CE, ISO and SGS certification to prove the advantages of HARSLE machines.
How can I visit HARSLE factory in China?
-Take high speed train from other city to Nanjing south railway station, HARSLE factory is around 40KM far from this station.
-Take plane to Nanjing Lukou international airport, HARSLE factory is around 20KM far from this airport.
-Take plane to Nanjing Lukou international airport, HARSLE factory is around 20KM far from this airport.
How can I get after-sales service from HARSLE?
You can contact HARSLE via phone or Email, HARSLE will certainly give you reply in 24 hours. You can show your questions or problems in the form of video or picture that would be better for both of us to solve your problems promptly. Customers can also contact our local agent directly, they will give you reply ASAP.
What is the warranty about HARSLE machine?
We will provide 3 years warranty for HARSLE machines, during the warranty period, customers can get thorough and timely service and HARSLE will send the spare parts for replacement of any broken parts on the machine for free.
