Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kingyear
-
Model Number:
-
Solar Cable
-
Product name:
-
TUV ROSH PV cable 2.5/4/6mm2 low smoke halogen free XLPE XLPO
-
Color:
-
Customized Color
-
Certification:
-
ISO9001, ISO14001
-
Rated Voltage:
-
Low Voltage
-
Core:
-
1~5 Core
-
Service:
-
OEM & ODM Are Available
-
Standard:
-
IEC
-
Size:
-
Customers' Requirement
-
Package:
-
Wooden steel drum
-
Warranty:
-
100% Quanlified
Quick Details
-
Insulation Material:
-
XLPE XLPO
-
Application:
-
solar energy system, solar energy system
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kingyear
-
Model Number:
-
Solar Cable
-
Product name:
-
TUV ROSH PV cable 2.5/4/6mm2 low smoke halogen free XLPE XLPO
-
Color:
-
Customized Color
-
Certification:
-
ISO9001, ISO14001
-
Rated Voltage:
-
Low Voltage
-
Core:
-
1~5 Core
-
Service:
-
OEM & ODM Are Available
-
Standard:
-
IEC
-
Size:
-
Customers' Requirement
-
Package:
-
Wooden steel drum
-
Warranty:
-
100% Quanlified

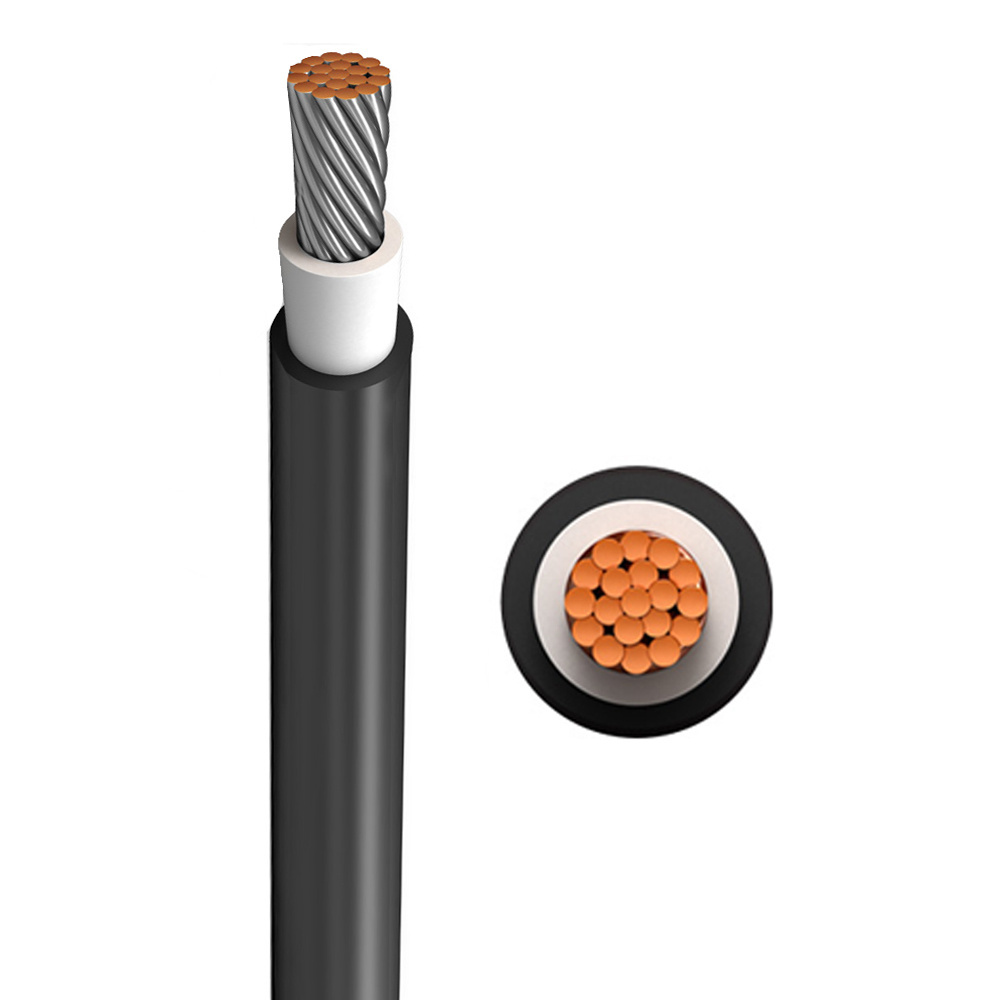

TUV ROSH PV cable 2.5/4/6mm2 low smoke halogen free XLPE XLPO insulated tin plated pv solar cable
WHY CHOOSE US
PRODUCT DESCRIPTION
KINGYEAR Cable is one of the leading cable products production enterprise in China,our mainly products are electrical wire,power cable, control cable,bare conductor (AAC/AAAC/ACSR),
ABC Aerial Bundled Cable
Regards the
TUV ROSH PV cable 2.5/4/6mm2 low smoke halogen free XLPE XLPO insulated tin plated pv solar cable
Applications:
PV Solar cable are s uitable for the interconnection of the components of PV systems,It also can be used indoor, outdoor, in hazard explosion areas, in industry agriculture applications in equipment with protective insulation.
Features of TUV ROSH PV cable 2.5/4/6mm2 low smoke halogen free XLPE XLPO insulated tin plated pv solar cable :
PV Solar cable are s uitable for the interconnection of the components of PV systems,It also can be used indoor, outdoor, in hazard explosion areas, in industry agriculture applications in equipment with protective insulation.
Features of TUV ROSH PV cable 2.5/4/6mm2 low smoke halogen free XLPE XLPO insulated tin plated pv solar cable :
Conductor : Fine Wire Tinned Copper Conductor class 5.
Insulation/Sheath : UV resistant, cross linkable, halogen free, flame retardant compound XLPE
Insulation/Sheath : UV resistant, cross linkable, halogen free, flame retardant compound XLPE
|
SOLAR ALUMINUM
|
|
|
SOLAR CABLE CU
|
|
|
Corresponding DC resistance
|
||||
|
TYPE
|
MEDIUM Ø OUTER
|
MEDIUM WEIGHT
|
TYPE
|
MEDIUM Ø OUTER
|
MEDIUM WEIGHT
|
Ω/km
|
||||
|
N° x mm2
|
mm
|
kg/km
|
N° x mm2
|
mm
|
kg/km
|
|
||||
|
1x4
|
5,6
|
35
|
1x2,5
|
5,1
|
47
|
8,21
|
||||
|
1x6
|
6,4
|
45
|
1x4
|
5,6
|
63
|
5,09
|
||||
|
1x10
|
7,4
|
62
|
1x6
|
6,2
|
86
|
3,39
|
||||
|
1x16
|
9
|
92
|
1x10
|
7,2
|
125
|
1,95
|
||||
|
1x25
|
10,9
|
135
|
1x16
|
8.7
|
188
|
1,24
|
||||
|
1x40
|
12,8
|
189
|
1x25
|
11
|
291
|
0,795
|
||||
|
1x55
|
14,6
|
245
|
1x35
|
12
|
383
|
0,565
|
||||
|
1x80
|
16,9
|
335
|
1x50
|
14,3
|
552
|
0,393
|
||||
|
1x110
|
19,1
|
435
|
1x70
|
16
|
712
|
0,277
|
||||
|
1x145
|
22,4
|
600
|
1x95
|
18,1
|
925
|
0,210
|
||||
|
1x190
|
25,4
|
765
|
1x120
|
20,7
|
1187
|
0,164
|
||||
|
1x230
|
28,1
|
940
|
1x150
|
22,8
|
1476
|
0,132
|
||||
|
1x270
|
30,4
|
1100
|
1x185
|
26
|
1785
|
0,108
|
||||
|
1x375
|
34,8
|
1450
|
1x240
|
27
|
2390
|
0,0817
|
||||
|
1x425
|
37,1
|
1650
|
1x300
|
29,8
|
2440
|
0,0654
|
||||
RELATED PRODUCT
Similar Products（Different structure; Different size）
Standard:
ANSI/ICEA S-76-474, NF C 33-209, AS3560-1-2000, IEC 60228, and ect.
Any customized standard are all can be designed by our R&D team.
COMPANY STRENGTH
COMPANY PROFILE
HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc...
CLICK MORE
PLANT AND OFFICE SHOWN:
3 workshops of
TUV ROSH PV cable 2.5/4/6mm2 low smoke halogen free XLPE XLPO insulated tin plated pv solar cable
. 1 office building of international trade.
TESTING MACHINE SHOWN:
TUV ROSH PV cable 2.5/4/6mm2 low smoke halogen free XLPE XLPO insulated tin plated pv solar cable
testing :
CERTIFICATE SHOWN:
ISO,CE,CCC,
ROHS,UL,VDE of
TUV ROSH PV cable 2.5/4/6mm2 low smoke halogen free XLPE XLPO insulated tin plated pv solar cable
.
CUSTOMER
After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality---KINGYEAR CABLE.
PACKAGE
PACKAGING FLOW
of
TUV ROSH PV cable 2.5/4/6mm2 low smoke halogen free XLPE XLPO insulated tin plated pv solar cable
as below,customized is accepted.
FAQ
Q:I didn't find the solar cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.
Q:How to ensure quality ?
A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
