Quick Details
-
Brand Name:
-
KEDO
-
Model Number:
-
QKD-901
-
current:
-
150~3000A
-
Max. Voltage:
-
660V
-
Standard Length:
-
4m or 6m
-
Conductor material:
-
Aluminum
-
Poles:
-
4ploes
-
Certificate:
-
CCCISOCE
-
Color:
-
Orange, red, orange
-
Product Name:
-
insulated copper conductor bar current collector
-
brandname:
-
KEDO
Quick Details
-
Voltage:
-
Max. Voltage:660V
-
Current:
-
150~3000A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KEDO
-
Model Number:
-
QKD-901
-
current:
-
150~3000A
-
Max. Voltage:
-
660V
-
Standard Length:
-
4m or 6m
-
Conductor material:
-
Aluminum
-
Poles:
-
4ploes
-
Certificate:
-
CCCISOCE
-
Color:
-
Orange, red, orange
-
Product Name:
-
insulated copper conductor bar current collector
-
brandname:
-
KEDO

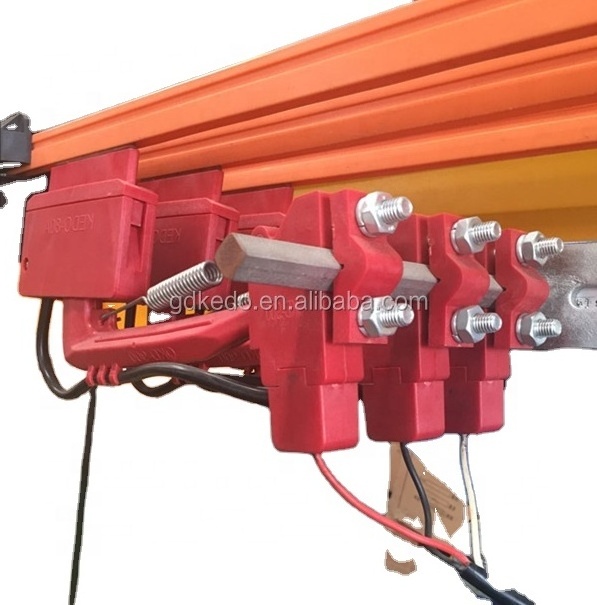

Current collector is the main sliding device collecting side pickup electricity contact line system, it is through the sliding contact with the guide rail in the brush, the electric energy can be directly conducted to the use of electrical appliances, so as to realize the mobile power supply system.
Current collector consists of two part set tension brush device of mechanical structure and direct and guide rail sliding contact component.
QKD type monopole safe slide wire is a new type of power supply to system of mobile machinery equipment feed, conductor is a special formula of high quality aluminum alloy profile, an outer jacketed with special PVC material, play a security role rain, snow, dust prevention, anti electric shock. The advantages of simple structure, convenient installation and maintenance, is widely used in the power supply line, metallurgy, chemical, mining machinery, dock, goods yard and other mobile devices.
1. Conductor: Aluminum material, with vertical and horizontal rigidity, but also has large surface area, can
fully guarantee the heat dissipation, conductor pressing stainless steel strip
2. Jacket: Provide safety standards for the degree of protection IP23, the sheath shape can be waterproof
and dustproof.
3. As a very durable contact surface
Features of the products:
1. Safe and reliable, no risk of electric shock even touch with fingers, in line with the IP23 standard.
2. Saving energy and reducing consumption, using a special formula of aluminum alloy profile as a
conductor; resistance is small, can minimize the loss of electric energy.
3. The service life is long, the conductor jacket also uses the unique formula, greatly prolongs the
service life of the slide wire system.
4. The collector can be three-dimensional movement, can satisfy the uninterruptible power supply
equipment; adopting double insulation design, work more safe and reliable.
5. New materials, new technology, new process to ensure the product has a higher corrosion
resistance, weather resistance and operating temperature range of use, more safe and reliable
working performance.
6. Adopts composite design, easy installation and maintenance, especially suitable for high altitude
operation
