The transmission mesh belt is made of 304 stainless steel spring wire, with a smooth
surface and long service life. The imported frequency converter is used to realize stepless speed regulation.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CBFI
-
Dimension(L*W*H):
-
16300*6300*3800mm
-
Weight:
-
20000 KG
-
Structure:
-
Double Spiral
-
Storage temperature:
-
-35℃
-
Defrost method:
-
water defrost
-
In and out time:
-
20~100min
-
Cooling condition:
-
-42℃/+35℃
-
Effective web width:
-
840mm
-
Total length of the mesh belt:
-
498m
-
Currency height:
-
100m
-
Installed capacity:
-
72kW
-
Cooling capacity:
-
370kW
Quick Details
-
Voltage:
-
380v,3ph, 50hz
-
Power:
-
72kW
-
Cooling Capacity:
-
370kW
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CBFI
-
Dimension(L*W*H):
-
16300*6300*3800mm
-
Weight:
-
20000 KG
-
Structure:
-
Double Spiral
-
Storage temperature:
-
-35℃
-
Defrost method:
-
water defrost
-
In and out time:
-
20~100min
-
Cooling condition:
-
-42℃/+35℃
-
Effective web width:
-
840mm
-
Total length of the mesh belt:
-
498m
-
Currency height:
-
100m
-
Installed capacity:
-
72kW
-
Cooling capacity:
-
370kW
Equipment Advantages
Insul Ation System
The hea-insulating slorage booty is made olstairless stool polyurthane sandwich pani,and The intemal polyurethane的fled and toamedby morted hgnpesor toaringmachine under high pressure.
Main Components & Parameters
Thermal insulation system
A low-temperature space enclosed by polyurethane thermal insulation panels
Transmission system
A conveyor system composed of conveyor mesh belts, reducers
Heat Exchange System
Evaporator, fan, air duct system
|
Technical Parameters
|
|
|
|
|
||||
|
Structure
|

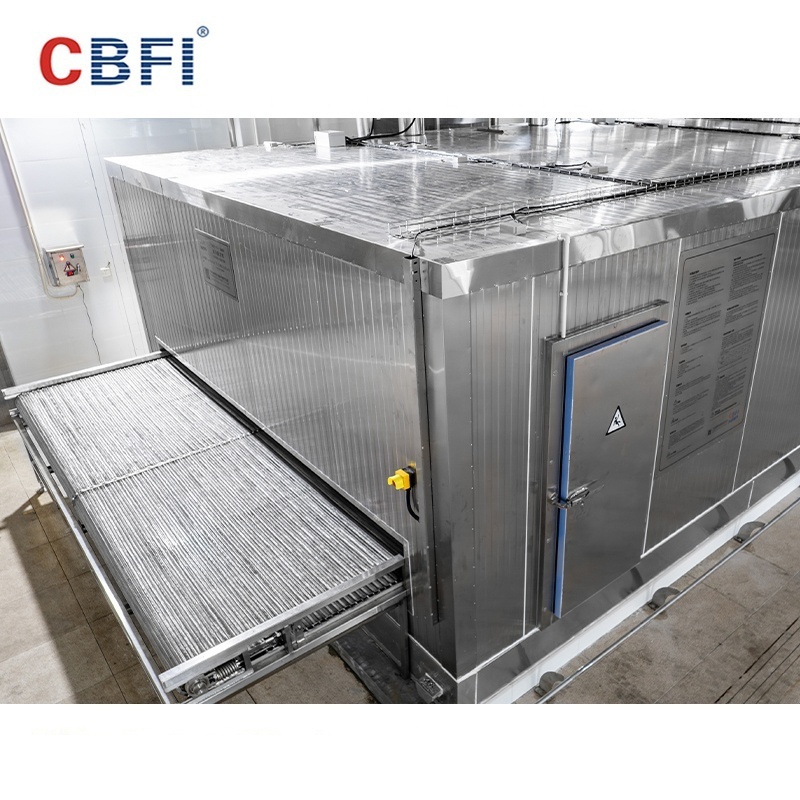

Tunnel quick freezer
|
Control panel
|
PLC touch screen control,304 stainless steel
|
|
||||
|
Mesh belt width
|
1500-4000mm
|
Refrigerant
|
Freon,ammonia,carbon,dioxide
|
|
||||
|
Mesh belt material
|
304/POM
|
Evaporator
|
Aluminum/stainless steel tubes,aluminum/aluminum-manesium alloy fins
|
|
||||
|
Feed end length
|
150mm
|
Defrost method
|
Water flushing/hot air defrosting
|
|
||||
|
Discharge end length
|
1000mm
|
Freezer/Cooldown time
|
Adjustable frequency
|
|
||||
|
Cleaning method
|
Mesh belt cleaning/CIP
|
|
|
|
||||
Application
CBFI® Fluidized Quick Freezer is the best choice for freezing granulars, flakes, blocks, small pieces, and other foods. It can be used in the quick-frozen processing of fruits, vegetables, rice, and noodles .
Packaging Delivery
1. Standard wooden case.
2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, customer only need prepare power for the machine.
4. All required components for install the machine will be provided.
