- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
86*37*47cm
-
Application:
-
Woodworking
-
Weight (KG):
-
36 KG
-
Power (kW):
-
370W
-
Max.Working Width(mm):
-
240mm
-
Band Saw Type:
-
Woodwork Band Saw
-
Marketing Type:
-
New Product 2021
-
Name:
-

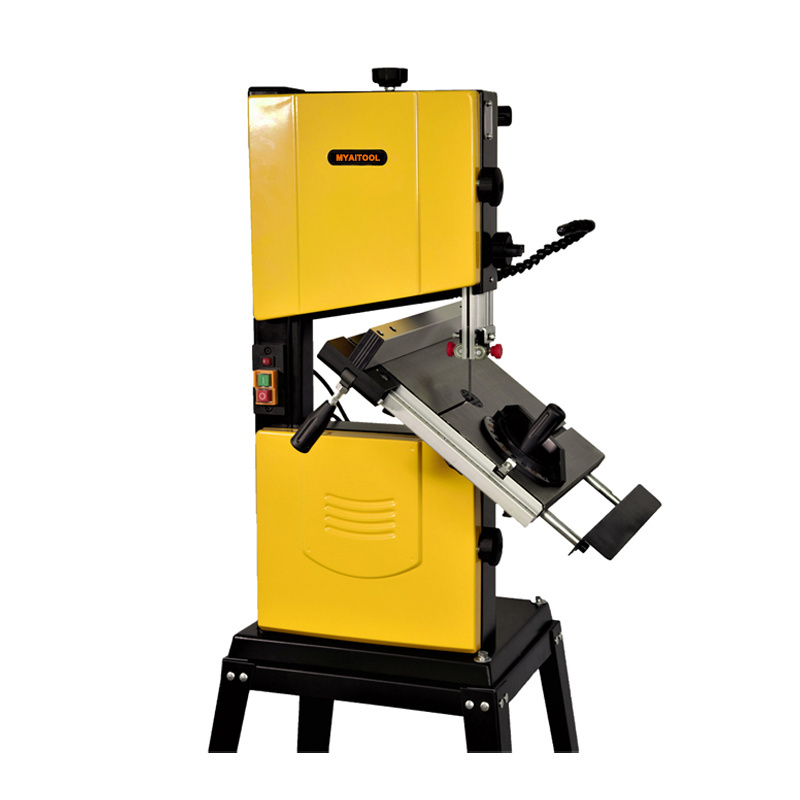

10'' Woodworking Band Saw
-
Motor Speed:
-
1400/min
-
Table size(mm):
-
313x302mm
-
Table Tile:
-
0~45°
-
Table Material:
-
Cast iron or AL
-
Cutting Capacity(Throat):
-
240mm
-
Max. Cutting Height:
-
100mm
-
Blade:
-
1712x9.5x0.35mm 6TPI
-
Cutting material:
-
Wood
-
Blade Guides:
-
Three bearings
-
Certification:
-
CE;
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MYAITOOL
-
Voltage:
-
120V /230V
-
Dimension(L*W*H):
-
86*37*47cm
-
Application:
-
Woodworking
-
Weight (KG):
-
36 KG
-
Power (kW):
-
370W
-
Max.Working Width(mm):
-
240mm
-
Band Saw Type:
-
Woodwork Band Saw
-
Marketing Type:
-
New Product 2021
-
Name:
-
10'' Woodworking Band Saw
-
Motor Speed:
-
1400/min
-
Table size(mm):
-
313x302mm
-
Table Tile:
-
0~45°
-
Table Material:
-
Cast iron or AL
-
Cutting Capacity(Throat):
-
240mm
-
Max. Cutting Height:
-
100mm
-
Blade:
-
1712x9.5x0.35mm 6TPI
-
Cutting material:
-
Wood
-
Blade Guides:
-
Three bearings
-
Certification:
-
CE;
Features
★
Working table extansion.
★
Sturdy cast-iron table tiltable from 0°to +45°.
★ 3-roller precision guiding above and below the table.
★ Balanced and grinded band wheels with rubber facing.
★ Quick-clamping lever for saw blade.
★ LED work ligh (optional).
★ Quick door open system(no CE).
★ 3-roller precision guiding above and below the table.
★ Balanced and grinded band wheels with rubber facing.
★ Quick-clamping lever for saw blade.
★ LED work ligh (optional).
★ Quick door open system(no CE).
Specification
|
Model
|
BS1001 single speed
|
BS1003 double speed
|
|
|
|
Motor S1
|
370W
|
370W
|
|
|
|
Motor Speed
|
1400/min
|
1400/min
|
|
|
|
Table Size
|
313X302mm
|
313X302mm
|
|
|
|
Table Tile
|
0~45°
|
0~45°
|
|
|
|
Table Extension
|
No
|
No
|
|
|
|
Table Material
|
Aluminum
|
Aluminum
|
|
|
|
Cutting Capacity(Throat)
|
240mm
|
240mm
|
|
|
|
Max. Cutting Height
|
100mm
|
100mm
|
|
|
|
Blade
|
1712X9.5X0.35mm 6TPI
|
1712X9.5X0.35mm 6TPI
|
|
|
|
Optional Blade Width
|
3.5~12mm
|
3.5~12mm
|
|
|
|
Cutting Speed 50Hz
|
730m/min
|
730, 950m/min
|
|
|
|
Cutting Speed 60Hz
|
870m/min
|
870, 1140m/min
|
|
|
|
Dust Port
|
99mm, 62mm, 47mm
|
99mm, 62mm, 47mm
|
|
|
|
Work Light
|
Optional
|
Optional
|
|
|
|
Rip Fence
|
Yes
|
Yes
|
|
|
|
Blade Guides
|
Three Bearings
|
Three Bearings
|
|
|
|
Quick-Release Blade Tension
|
Yes
|
Yes
|
|
|
|
Miter Gauge Included
|
Yes
|
Yes
|
|
|
|
Band Saw Stand
|
Yes
|
Yes
|
|
|
