Quick Details
-
Brand Name:
-
ZISA
-
Use:
-
FTTX
-
Warranty Time:
-
1 YEAR
-
Product name:
-
Ftth Onu
-
Color:
-
White
-
Application:
-
FTTH FTTB FTTX Network
-
Model:
-
OP151
-
Power supply::
-
12V/1A
-
Chipset:
-
Realtek
-
Wavelength:
-
1310/1490nm
-
Material:
-
Plastic
-
Fiber Type:
-
Single Fiber Single Mode
Quick Details
-
Type:
-
onu, ONU
-
Model Number:
-
OP151
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZISA
-
Use:
-
FTTX
-
Warranty Time:
-
1 YEAR
-
Product name:
-
Ftth Onu
-
Color:
-
White
-
Application:
-
FTTH FTTB FTTX Network
-
Model:
-
OP151
-
Power supply::
-
12V/1A
-
Chipset:
-
Realtek
-
Wavelength:
-
1310/1490nm
-
Material:
-
Plastic
-
Fiber Type:
-
Single Fiber Single Mode

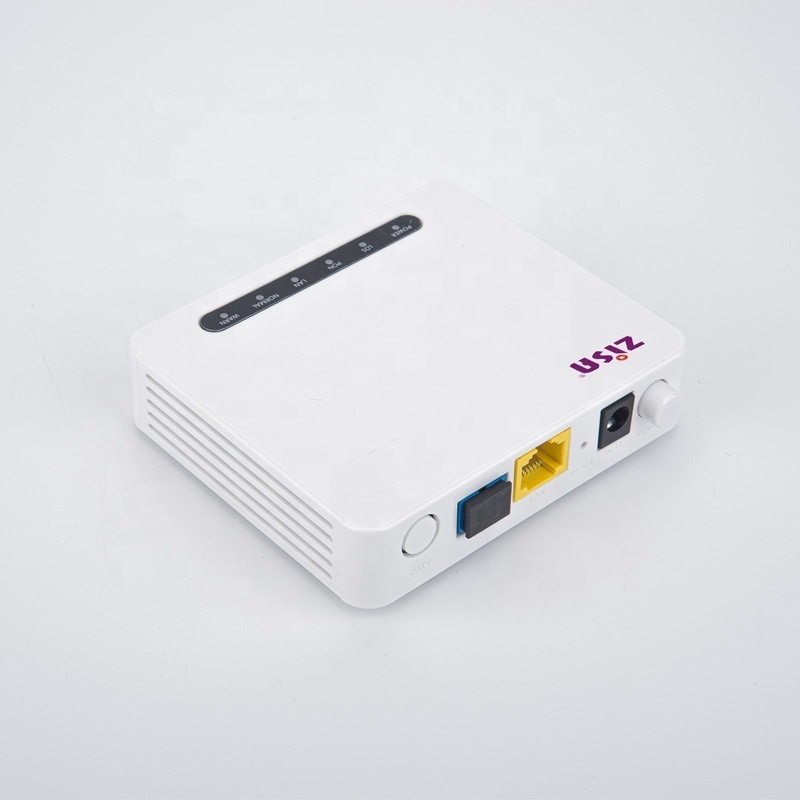

Z I SA O P 151
1GE XPON ONU
Product Overview
l 1GE ONU is designed as HGU (Home Gateway Unit) in different FTTH solutions; the carrier-class FTTH application provides data service access.
l 1GE ONU is based on mature and stable, cost-effective XPON technology. It can switch auto matic all with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
l 1GE adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
l 1GE is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
l 1GE is designed by Realtek chipset 9601D
Feature
l Supports Dual Mode (can access GPON/EPONOLT).
l Supports SFU and HGU of EPON CTC 3.0 standard.
l Support NAT, Firewall function.
l Support Flow & Storm Control , Loop Detection and Port Forwarding.
l Support port mode of VLAN configuration
l Support LAN IP and DHCP Server configuration
l Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
l Support IPv4/IPv6dual stack
l Support IGMP transparent/snooping/proxy
l In compliant with ITU-T G.984.x and IEEE802.3ah standard
l Compatible with popular OLT (HW, ZTE, FiberHome,Vsol...)
Product Specifications
|
Technical Item |
Details |
|
PON interface |
1 GPON/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm, Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
|
LAN interface |
10/100/1000Mbps auto adaptive Ethernet interfaces. 10/100/1000M Full/Half, RJ45 connector |
|
LED |
4 LED, For Status of POWER, LOS, PON, LAN |
|
Push-Button |
2, for Function of Power on/off, Reset |
|
Operating condition |
Temperature : 0 ℃ ~ 50 ℃ Humidity :10% ~ 90% ( non-condensing ) |
|
Storing Condition |
Temperature : -40 ℃ ~ +60 ℃ Humidity :10% ~ 90% ( non-condensing ) |
|
Power supply |
DC 12V/1A |
|
Power Consumption |
<3W |
|
Net Weight |
<0.2kg |
Panel lights and Introduction
|
Pilot |
Status |
Description |
|
POWER |
On |
The device is powered up. |
|
Off |
The device is powered down. |
|
|
LOS |
Blink |
The device doses not receive optical signals. |
|
Off |
The device has received optical signal. |
|
|
PON |
On |
The device has registered to the PON system. |
|
Blink |
The device is registering the PON system. |
|
|
Off |
The device registration is incorrect. |
|
|
LAN |
On |
Port is connected properly (LINK). |
|
Blink |
Port is sending or/and receiving data (ACT). |
|
|
Off |
Port connection exception or not connected. |
Application
l Typical Solution : FTTO(Office) , FTTB(Building) , FTTH(Home)
l Typical Service : Broadband Internet access, IPTV, VOD.
Ordering information
|
Product Name |
Product Model |
Descriptions |
|
1GE XPON |
OP151 |
1*10/100/1000Mbps auto adaptive Ethernet ( RJ45 ) ,GPON interface, Plastic Casing, External power supply adapter |
Contact us
ZISA Corporation Limited
Mail to :sales (at) zisacom.com.cn
URL: http://www.zisacom.com
Specifications are subject to change without notice.
