Manufacturing green environmental protective product is the society responsibility of every enterprise . ① Our new technology
“Target beam scavenging combustion “ which means precise orienting high speed combustion scavenging ” which has the independent patent intellectual property makes our products pass the strictly emission regulations such as Ⅲ,EURO V ,EPA
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OEM
-
Model Number:
-
BC52
-
Cutting Width:
-
430mm
-
Power Source:
-
Gasoline
-
Displacement:
-
51.8cc, 51.8cc
-
Product name:
-

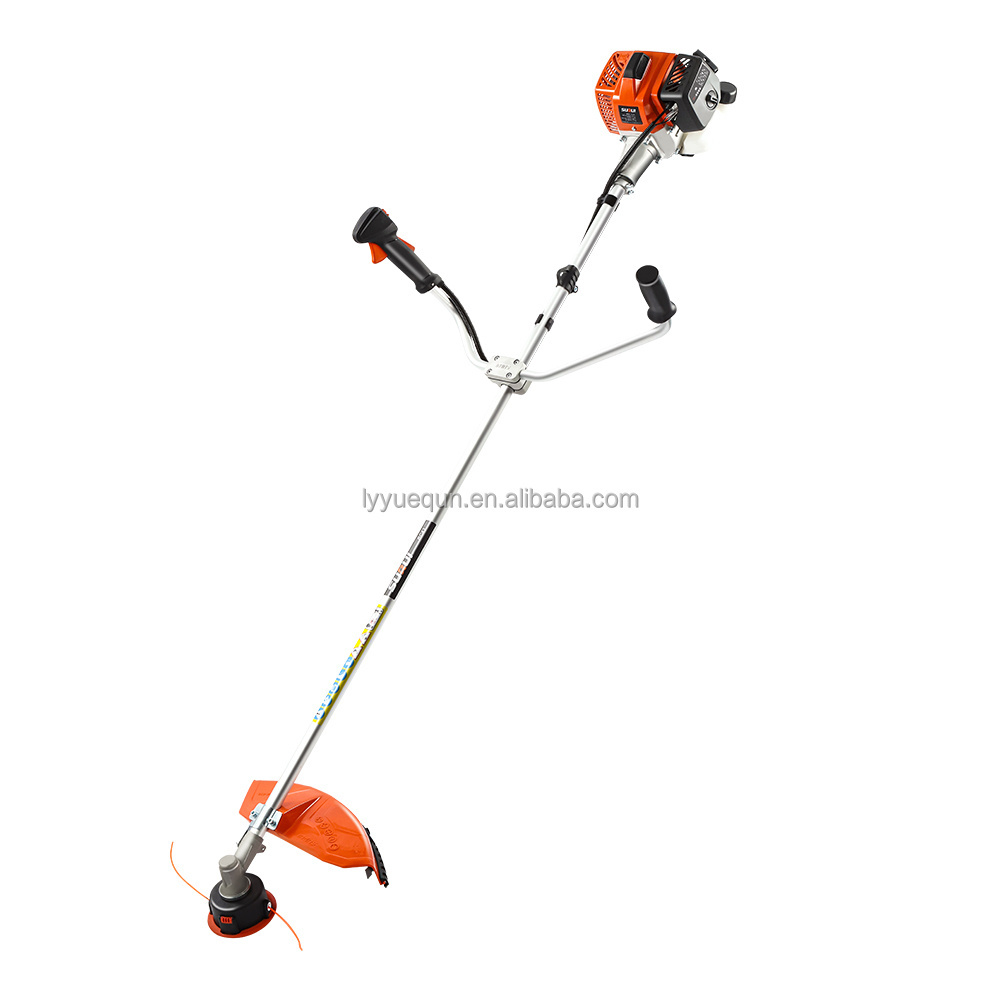

Gasoline Brush Cutter 52cc Grass Cutting Machine cg520 grass trimmer
-
Model:
-
BC52
-
Mating Power:
-
1E44F-2
-
Power Output:
-
1.5kw/2.1hp
-
Fuel tank:
-
0.95L
-
Shaft diameter:
-
24/26/28mm
-
Cutting width:
-
430mm
-
Blade cutting range:
-
255mm
-
N.W:
-
8.1kg
Quick Details
-
Feature:
-
2-Stroke, Anti-slip, Forced Air Cooling, Single Cylinder
-
Voltage:
-
None
-
Power:
-
1.5/2.1(kw/hp)
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OEM
-
Model Number:
-
BC52
-
Cutting Width:
-
430mm
-
Power Source:
-
Gasoline
-
Displacement:
-
51.8cc, 51.8cc
-
Product name:
-
Gasoline Brush Cutter 52cc Grass Cutting Machine cg520 grass trimmer
-
Model:
-
BC52
-
Mating Power:
-
1E44F-2
-
Power Output:
-
1.5kw/2.1hp
-
Fuel tank:
-
0.95L
-
Shaft diameter:
-
24/26/28mm
-
Cutting width:
-
430mm
-
Blade cutting range:
-
255mm
-
N.W:
-
8.1kg
All of our products have been subjected to
over 200 hours
of operational and static endurance testing !
Side pack Brush Cutter
BC Series
BCR Series
|
Model
|
BC26
|
BC33
|
BC43
|
BC52
|
BC26R
|
BC33R
|
BC43R
|
BC52R
|
|
Displacement(cc)
|
25.6
|
32.8
|
42.8
|
51.8
|
25.6
|
32.8
|
42.8
|
51.8
|
|
Standards power(kw/hp)
|
0.8/1.1
|
1.0/1.4
|
1.3/1.8
|
1.5/2.1
|
0.8/1.1
|
1.0/1.4
|
1.3/1.8
|
1.5/2.1
|
|
Fuel consumption(g/kw.h)
|
492
|
485
|
476
|
489
|
492
|
485
|
476
|
489
|
|
N.W.(kg)
|
6.5
|
7.3
|
7.9
|
8.1
|
6.2
|
7.1
|
7.4
|
7.6
|
|
Fuel tank capacity(L)
|
0.6
|
0.65
|
0.95
|
0.95
|
0.6
|
0.65
|
0.95
|
0.95
|
|
Gear case speed reduction ratio
|
15:19
|
15:19
|
15:19
|
15:19
|
15:19
|
15:19
|
15:19
|
15:19
|
|
Aluminum pipe diameter(mm)
|
24/26/28
|
24/26/28
|
24/26/28
|
24/26/28
|
24/26/28
|
24/26
|
24/26
|
24/26
|
|
Nylon cutter head cutting range(mm)
|
430
|
430
|
430
|
430
|
430
|
430
|
430
|
430
|
|
Blade cutting range(mm)
|
255
|
255
|
255
|
255
|
255
|
255
|
255
|
255
|
Our Advantages
More Environment friendly
With the help of the technology “combustion thermal imaging analysis” , we analyzed and compared the technical index of the current products through the measured data of the dynamometer and the emission equipment ,finally we got the exclusive technology “Target beam scavenging combustion ”and applied the patent for it , the patent number is ZL 2022 2 2720266.6
More powerful
Taking the new technology “Target beam scavenging combustion ”as the core , using perfect scientific control method and rich production experience , we made a collective innovative improvement for the engine technical specifications and the outlook.
① All products use the overhead spark plug: The cooling area of the cylinder increases by about 30% and the cooling evenness becomes better. Therefore the engine can be always at a suitable temperature when running , Thus the power and the durability increases
① All products use the overhead spark plug: The cooling area of the cylinder increases by about 30% and the cooling evenness becomes better. Therefore the engine can be always at a suitable temperature when running , Thus the power and the durability increases
②We improve the heat dissipation channel which makes the cooling performance better .
③Benchmarking the leading companies , through countless tests ,we improved the displacement ,compression ratio ,exhaust phase , air inlet port and exhaust port sectional area , shape of the combustor etc. Thus our engines is approaching more perfect quality.
③Benchmarking the leading companies , through countless tests ,we improved the displacement ,compression ratio ,exhaust phase , air inlet port and exhaust port sectional area , shape of the combustor etc. Thus our engines is approaching more perfect quality.
Our patent technology “Target beam scavenging combustion” can reduce the HC+NO in the emission by 75% ,meanwhile , the power increases 7%-16% and the fuel consumption decreases by 15% to 20%
Patent No.：ZL 2022 2 2720266.6
The latest designed starter can reduce the starting resistance by 40%. ，thus the operators can start the engines rapidly and easily ,the newly designed starter handle is more comfortable to operate
The inside structure of the clutch is rubber suspended ,which can reduce the vibration efficiently and make the operation more comfortable
.
Patent No.：ZL 2022 3 0193427.3
New throttle handle
Completely new designed bicycle handle ,fully considering the operators’ actual use request , right and left hand operate the machines more comfortably and reduce tiredness.
patent number：ZL 2022 3 0191961.0
Completely new designed rubber covered throttle handle is more ergonomics , more comfortable holding feeling ,more rounded R angle trigger and the one-button normally opening switch , which make the operators not tired even after long time work
Completely new designed oblique rubber covered loop handle which is more suitable to the operators’ practical use situation .The holding feeling is more comfortable and the operation is more easier
Patent No.：ZL 2022 3 0191880.0
Full series brushcutter can be supplied in split type to save the shipping space ，new designed connector can assemble and disassemble the machine rapidly .
patent number：ZL 2022 2 2573781.6
Latest designed gear case can prevent winding grass . The inner gear case adds lubricated impeller, which prolong the gear case life and no need to maintain it in 300 hours
By assembling or disassembling the blade protective cover edge ,the operators can use both the blades and nylon cutter head
