Quick Details
-
CaO Content (%):
-
0.34%
-
CrO Content (%):
-
0.002%
-
SiC Content (%):
-
75-90
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
Customer's Requirement
-
Brand Name:
-
DKJL
-
Product name:
-
Silicon carbide plates
-
SIC:
-
> 90%
-
SiO2:
-
> 8%
-
Bulk Density:
-
2.6 - 2.66g/cm3
-
Cold Crushing strength:
-
>120Mpa
-
Apparent Porosity:
-
<15%
-
Rupture strength(1200°C):
-
>30-45Mpa
-
Refractoriness:
-
1790
-
Thermal Conductivity:
-
15.3 w/m.k
-
Termal expansion coefficient:
-
< 4.8x10-6/°C
Quick Details
-
SiO2 Content (%):
-
90%
-
Al2O3 Content (%):
-
<1.5%
-
MgO Content (%):
-
0.8-1.2
-
CaO Content (%):
-
0.34%
-
CrO Content (%):
-
0.002%
-
SiC Content (%):
-
75-90
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
Customer's Requirement
-
Brand Name:
-
DKJL
-
Product name:
-
Silicon carbide plates
-
SIC:
-
> 90%
-
SiO2:
-
> 8%
-
Bulk Density:
-
2.6 - 2.66g/cm3
-
Cold Crushing strength:
-
>120Mpa
-
Apparent Porosity:
-
<15%
-
Rupture strength(1200°C):
-
>30-45Mpa
-
Refractoriness:
-
1790
-
Thermal Conductivity:
-
15.3 w/m.k
-
Termal expansion coefficient:
-
< 4.8x10-6/°C
Silicon Carbide SIC Plate with Good Price
Silicon carbide plate is made of high quality synthetically made silicon carbide grains (SIC) andselected bonding components, including nitride, Si3N4 as material,After drying, sintering in high temperature furnace to form. It’s Maximum service temperature is 1,550°C, and especially suitable at the long time firing between 1,200~1,550°C range.
sic plate with good price application:
It mainly find its applications in blast furnace lining, the lining of alumina electrolytic bath and various nonferrous metal smelting, glass tank and ceramic in dustires, etc.
sic plate with good price features
1. Extremely high cold crushing strength.
2. Superior corrosion resistance
3. Low apparent porosity and thermal expansion.
4. Outstanding thermal shock resistanc
5. Excellent thermal conductivity
Physical properties and chemical composition
|
Item
|
Index
|
|
SiC , % min
|
90
|
|
SiO2 , % min
|
8
|
|
Bulk Density , g/cm3
|
2.55-2.7
|
|
Apparent Porosity , % max
|
<15
|
|
Cold Crushing strength, MPa min
|
>120
|
|
rupture strength , MPa min
|
>30
|
|
Refractoriness ( SK )
|
1790
|
|
Initial soften point under load (°C)
|
1650
|
|
Thermal Conductivity, w/m.k min
|
15.3
|
|
thermal expansion coefficient, max
|
<5.2x10
-6
/°C
|

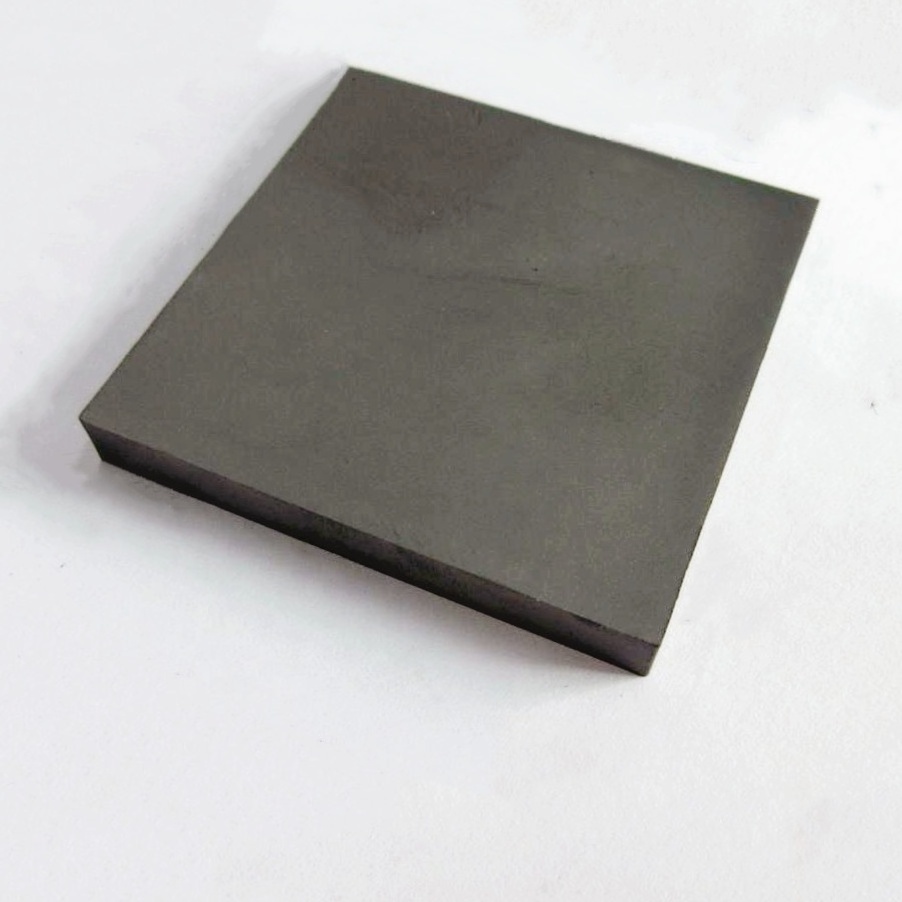

pictures of SIC plate with good price
Package of silicon plate with good price : By cartons or wooden boxes or according to customer's requirement. We also received OEM service; the package can be designed according to your requirements.
Shipping of silicon plate with good price : By vessel or by train from any Chinese port.
Samples can be delivered by International express.
1. Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2. Free sample
sic plate Sample and trial order is accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Shorter delivery time.
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
