Quick Details
-
Color:
-
SMD 3-in-1 RGB Full Color
-
Panel Size:
-
400*300mm, 400*300mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P1.56/P1.66/P1.8/P1.9/P2/P2.5
-
HS Code:
-
8528591090
-
Resolution:
-
according to screen model and screen size
-
Pixel Configuration:
-
SMD 3-in-1(SMD1010 LEDs)
-
LED Chip:
-
Nation Star/Kinglight
-
Brightness:
-
500~1500cd(adjustable)
-
Refresh rate:
-
3840Hz
-
LED Panel/Cabinet Material:
-
Die-casting Aluminum
-
Screen Dimension:
-
Customized Dimension
-
Suitable for:
-
exhibition,event show,car show,luxury event show
-
Life-span:
-
100,000Hours
-
Certification:
-
CE,FCC,RoHs
-
Warranty:
-
2~3 years
Quick Details
-
Application:
-
Indoor TV Studio Show Room
-
Type:
-
LED
-
Brand Name:
-
QNICE LED
-
Color:
-
SMD 3-in-1 RGB Full Color
-
Panel Size:
-
400*300mm, 400*300mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P1.56/P1.66/P1.8/P1.9/P2/P2.5
-
HS Code:
-
8528591090
-
Resolution:
-
according to screen model and screen size
-
Pixel Configuration:
-
SMD 3-in-1(SMD1010 LEDs)
-
LED Chip:
-
Nation Star/Kinglight
-
Brightness:
-
500~1500cd(adjustable)
-
Refresh rate:
-
3840Hz
-
LED Panel/Cabinet Material:
-
Die-casting Aluminum
-
Screen Dimension:
-
Customized Dimension
-
Suitable for:
-
exhibition,event show,car show,luxury event show
-
Life-span:
-
100,000Hours
-
Certification:
-
CE,FCC,RoHs
-
Warranty:
-
2~3 years

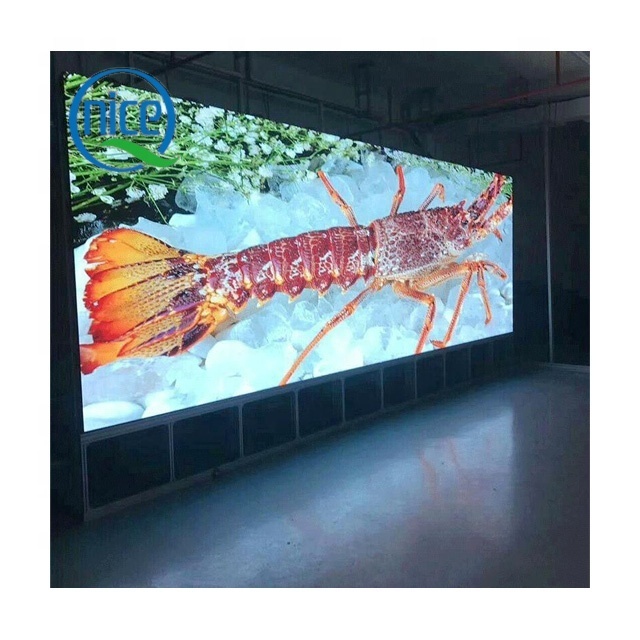

400x300mm Die-casting aluminum LED Panel Small Pixel pitch P1.56 P1.66 P1.92 P2 P2.5 Indoor LED Video Wall Screen HD Full Color LED Screen
1. High quality SMD 3-in-1(SMD1010 LEDs), wide viewing angle.
2. 400x300mm Die-casting aluminum LED panel, nice appearance and good quality .
3. S uper thin, light weight,only 6Kg per LED panel, with handles and fast locks, easy to install
4. seamless and flatness to ensure high quality video effect.
5. support VGA,DVI,HDMI,TV programs,VCD,DVD,live show,etc.
7. flightcase package, easy to take the LED screen to different places according to your need.
8. suitable for stage rental, event show, concert, TV show, exhibition trade show, high-end conference, etc
Techinical Specification:
| Item | Techinical Specifications | |||||||||||||||||||
| Pixel Pitch | 1.6mm | 1.9mm | 2mm | 2.5mm | ||||||||||||||||
| LED Configuration | SMD 3-in-1(SMD1010) | SMD 3-in-1(SMD1010) | SMD 3-in-1(SMD1010) | SMD 3-in-1(SMD1010) | ||||||||||||||||
| Pixel Density | 360000pixels/sq.m | 270400 pixels/sq.m | 250000 pixels/sq.m | 160000 pixels/sq.m | ||||||||||||||||
| Module Size | 200mm*300mm | 200mm*300mm | 200mm*300mm | 200mm*300mm | ||||||||||||||||
| Module Resilution | 120pixel*180pixel | 104pixel*156pixel | 100pixel*150pixel | 80pixel*120pixel | ||||||||||||||||
| Cabinet Size | 400mm*300mm | |||||||||||||||||||
| Cabinet Resolution | 240pixels*180pixels | 208pixels*156pixels | 200pixels*150pixels | 160pixels*240pixels | ||||||||||||||||
| Cabinet Material | Die-casting Aluminum | |||||||||||||||||||
| Cabinet weight | 6kg | |||||||||||||||||||
| Brightness | 2000cd/sqm | 2000cd/sqm | 2000cd/sqm | 2000cd/sqm | ||||||||||||||||
| Colour temperature | 3500K-9500K | 3500K-9500K | 3500K-9500K | 3500K-9500K | ||||||||||||||||
| Viewing Angle | H:140°/V:140° | |||||||||||||||||||
| Ave. Power consumption | 270 W/sqm | 270 W/sqm | 270 W/sqm | 270 W/sqm | ||||||||||||||||
| Max. Power consumption | 900W/sqm | 900W/sqm | 900W/sqm | 900W/sqm | ||||||||||||||||
| Drive Mode | 1/30 scan | 1/26 scan | 1/30 scan | 1/30 scan | ||||||||||||||||
| Best Viewing Distance | ≥1.6m | ≥1.9m | ≥2m | ≥2.5m | ||||||||||||||||
| Input Voltage | AC220V/50HZ or AC110V/60HZ (±10%) | |||||||||||||||||||
| Output Voltage | 5V,40A | |||||||||||||||||||
| Refresh rate | ≥2800Hz | |||||||||||||||||||
| Frame rate | 50/60 Hz/sec | |||||||||||||||||||
| Protection Level | IP43 | |||||||||||||||||||
| Life-span | 100,000 hours | |||||||||||||||||||
| Malfunction dot rate | < 0.0001 | |||||||||||||||||||
| Storage Temp/Humidity | -40~+60℃/10~80%RH | |||||||||||||||||||
| Operating Temp/Humidity | -25~+50℃/10~90%RH | |||||||||||||||||||
| Input Signal | RF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc | |||||||||||||||||||
| PC Operating System | Microsoft Windows 7, 8, 98, 2000, XP and Vista | |||||||||||||||||||
400x300mm Die-casting Aluminum LED Panels, LED Screen:
Packages:
Factory Show:
