Quick Details
-
Model Number:
-
T73
-
Product name:
-
2 amps power relays
-
Contact Ratings:
-
2Z,2H,2D/3Z,3H,3D
-
Contact Resistance:
-
100m(1A 6VDC)
-
Contact Capacity:
-
30A/40A 250VAC/30VDC
-
Insulation Resistance:
-
1000M,500VDC
-
Operate Time:
-
25ms/15ms
-
Terminal Type:
-
Power
-
Nominal Coil Power:
-
DC2W~2.5W AC4.5VA
-
Product Certifications:
-
CE
-
Product Keywords:
-

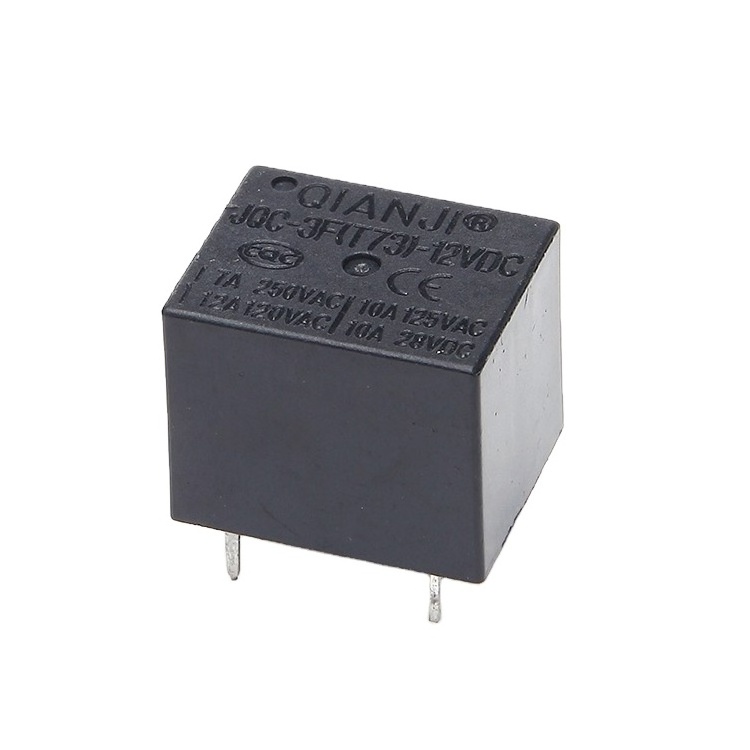

hongfa for jqc-3f t73 12a 12vdc 5 pin pcb relay
Quick Details
-
Contact Load:
-
High Power
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
QIANJI
-
Model Number:
-
T73
-
Product name:
-
2 amps power relays
-
Contact Ratings:
-
2Z,2H,2D/3Z,3H,3D
-
Contact Resistance:
-
100m(1A 6VDC)
-
Contact Capacity:
-
30A/40A 250VAC/30VDC
-
Insulation Resistance:
-
1000M,500VDC
-
Operate Time:
-
25ms/15ms
-
Terminal Type:
-
Power
-
Nominal Coil Power:
-
DC2W~2.5W AC4.5VA
-
Product Certifications:
-
CE
-
Product Keywords:
-
hongfa for jqc-3f t73 12a 12vdc 5 pin pcb relay
You are here: Home >> Relay >> PCB Relay
| Contact Ratings | |
| Contact Ratings | 1H,1Z |
| Contact Resistance | 100MΩ(at 1A 6VDC) |
| Contact Material | Silver Alloy |
| Contact Capacity | 10A 250VAC/7A 250VDC |
| Specification | |
| Insulation Resistance | 100MΩ.500VDC |
| Dieletric Strength | BCC 1500V 1 min |
| BOC 750V 1 min | |
| Operate Time | 10ms/5ms |
| Terminal Type | PCB |
| Coil Ratings | |
| Norminal Coil Power | 0.36W,0.45W |
| Coil Versions | |||||
|
Nominal Voltage VDC |
Coil Resistance at 20℃ ±10%( Ω) |
Max Operate Voltage (VDC) |
Min Release Voltage (VDC) |
Max Applicable Voltage (VDC) |
|
| 0.36W | 0.45W | ||||
| 3 | 25 | 20 | 2.25 | 0.3 | 3.9 |
| 5 | 70 | 55 | 3.75 | 0.5 | 6.5 |
| 6 | 100 | 80 | 4.50 | 0.6 | 7.8 |
| 9 | 220 | 180 | 6.75 | 0.9 | 11.7 |
| 12 | 400 | 320 | 9.00 | 1.2 | 15.6 |
| 24 | 1600 | 1280 | 18.00 | 2.4 | 31.2 |
| 48 | 6400 | 5100 | 36.00 | 4.8 | 62.4 |
♦ We have 20 years of production experience, the best quality and the price can be assured, pls contact us freely,we will reply to you immediately
Packaging Details:Standard export packing
Delivery Detail:15-25 days
