Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Razortek
-
Single Pulse Energy:
-
120J
-
Pulse Width:
-
0.5ms-20ms
-
Wavelength:
-
1080
-
Focal Spot Diameter:
-
1.8mm
-
Dimensions:
-
1170*600*1150mm
-
Weight (KG):
-
290 KG
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
laser generator
-
Origin:
-
China
-
Laser source:
-
Raycus Brand
-
Power:
-
1000w-3000w
-
Control System:
-
HANWEI System
-
Welding gun:
-
Hanwei Welding Gun
-
Water chiller:
-
S&A
-
Cooling System:
-
Water
-
Function:
-
Weld Cut Clean
-
Welding Width:
-
0-5mm
Quick Details
-
Max. Output Power:
-
2000w
-
Usage:
-
metal weldng, fiber laser welding machine
-
Laser Source Brand:
-
RAYCUS
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Razortek
-
Single Pulse Energy:
-
120J
-
Pulse Width:
-
0.5ms-20ms
-
Wavelength:
-
1080
-
Focal Spot Diameter:
-
1.8mm
-
Dimensions:
-
1170*600*1150mm
-
Weight (KG):
-
290 KG
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
laser generator
-
Origin:
-
China
-
Laser source:
-
Raycus Brand
-
Power:
-
1000w-3000w
-
Control System:
-
HANWEI System
-
Welding gun:
-
Hanwei Welding Gun
-
Water chiller:
-
S&A
-
Cooling System:
-
Water
-
Function:
-
Weld Cut Clean
-
Welding Width:
-
0-5mm

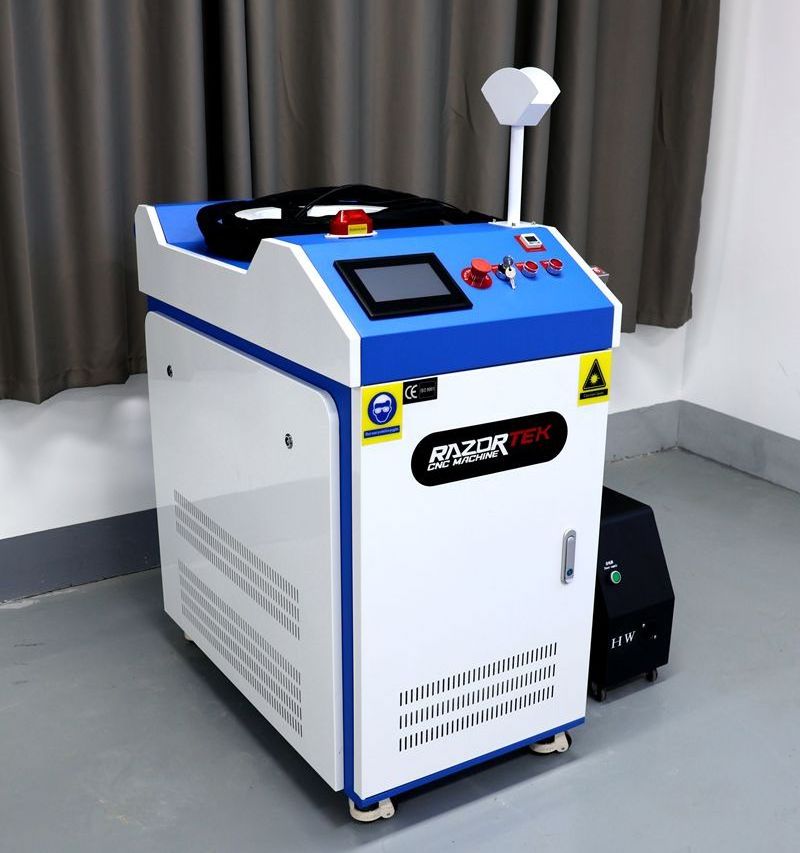

Handheld fiber laser 3 in 1 welding machine
1.Using a hand-held laser welding head, it can be easily used without professional welding technology, and it is suitable for small batches and multi-batch welding work.
2. The handheld fiber laser 3 in 1 welding machine has three functions: laser welding, laser cleaning, and laser cutting, which are more cost-effective Handheld fiber laser 3 in 1 welding machine has faster welding speed, stronger welding strength, no need for polishing, smooth and beautiful appearance, and no deformation
3. Handheld fiber laser 3 in 1 welding machine, fully automatic wire feeding, can achieve welding of any complex shape and angle, higher automation level, higher production efficiency, stable and reliable processing quality
5. The handheld fiber laser 3 in 1 welding machine control system with touch screen is easy to operate, and new workers can also operate it freely
6. Razortek handheld 3-in-1 fiber laser welding machine with high-quality laser machine, 2-year warranty, more reliable quality
Products Description
Laser welding Laser cleaning Laser cutting
|
laser power
|
1000W、1500W、 2000W、3000W
|
|
Fiber length
|
standard 10M / Maximum 15M
|
|
operate mode
|
continuation/ modulate
|
|
Welding speed range
|
0~100 mm/s
|
|
Working Mode
|
Handheld laser Welding, Cutting and Cleaning
|
|
Welding gap requirements
|
≤0.5mm
|
|
Welding thickness
|
0.5-8mm
|
|
Welding materials
|
Various metal alloy materials
|
|
Welding method
|
Fiber Laser
|
|
Voltage
|
220V 1Ph 50Hz/60Hz
|
Detail photos
Laser gun head
HW 3 in 1 version, support welding cleaning and cutting. It is ranked top in Chinese welding gun with high quality.
Switching functions can be achieved by replacing the nozzle
Laser Source
We use the world-renowned MAX/Raycus and high-quality laser sources for excellent beam quality. CE Raycus version provides special after-sales service with a 2-year global warranty
Control System with Touch Screen
HW newest version, easy to operate, we will set parameters well and you only need to modify few parameters, supports process storage and supports 19 languages. We can set your language for you
Automatic wire feeder
lt is used for replenishing welding wire automatically, Automatic Wire Feeding Stronger Welding Handy and flexible.Adapted to weldmetal ofvarious angles and shapes.
Sample and applications industry
Handheld fiber laser 3 in 1 welding machine Suitable for welding stainless steel/carbon steel/copper/aluminum/gold/ silver/chrome/nickel/etc. various metals and alloys in many materials.
The welding methods of laser welding machines include butt welding, T-welding, lap welding, edge welding, scar free welding, and beauty welding seam
Feature and advantage of fiber laser welding machine 3 in 1:
1.Swing welding head can be used for welding at any angle or shape. It can be used for 1000W/1500W/2000W power
2.Adjustable weld width (range 0-6mm)
3.Not request mature operate, fresh worker can also do
4.Smooth and beautiful, not deformation, not blackening, strong welding, no grinding required
5.Welding material: stainless steel, carbon steel and other metals
2.Adjustable weld width (range 0-6mm)
3.Not request mature operate, fresh worker can also do
4.Smooth and beautiful, not deformation, not blackening, strong welding, no grinding required
5.Welding material: stainless steel, carbon steel and other metals
Packaging&Shipping
According to different products and size, we use different packaging materials, our packaging staff are very experienced, and we absolutely guarantee the safety of the products during transportation.
About Us
RAZORTEK Started laser welding machine business Since 2014 July, located in Jinan city, Shandong Province. Mainly engaged in fiber laser welding, cleaning, and cutting machines. All machines passed the European Union CE authentication, American FDA certificate. CNC equipment exported to most countries in the world, including Europe, America, Asia, Oceania, more than 70 countries and areas, and supply OEM service for our cooperator agents.
Our advantage
1. We are professional manufacturer, 9000 square meters factory, product capacity 150sets/month. We focus on laser
welding&cleaning, fiber cutting machine produce.
2. Our products mainly sell to Europe and America, CE and FDA certificate, quality is stable and we are looking for long-term business with all buyer.
3. Independent design, we accept OEM, looking for sales agent from all over the world.
4. Each of our machines can help you input the local language system and come with user manuals and instructional videos before leaving the factory, ensuring that every customer can quickly master the use of the machine.
5. A professional after-sales team is available 24 hours a day to solve various problems for you at any time
6. By using the CE version Raycus laser source, the machine not only works more energy-efficient, efficient, and precise, but also supports free global warranty.
7. The RAZORTEK machine supports a 2-year free warranty, making your purchase more reassuring
8.Every machine undergoes regular inspections and strict quality monitoring during the production process. Before leaving the factory, specialized personnel conduct functional tests to ensure that each machine meets factory standards and can efficiently serve you
welding&cleaning, fiber cutting machine produce.
2. Our products mainly sell to Europe and America, CE and FDA certificate, quality is stable and we are looking for long-term business with all buyer.
3. Independent design, we accept OEM, looking for sales agent from all over the world.
4. Each of our machines can help you input the local language system and come with user manuals and instructional videos before leaving the factory, ensuring that every customer can quickly master the use of the machine.
5. A professional after-sales team is available 24 hours a day to solve various problems for you at any time
6. By using the CE version Raycus laser source, the machine not only works more energy-efficient, efficient, and precise, but also supports free global warranty.
7. The RAZORTEK machine supports a 2-year free warranty, making your purchase more reassuring
8.Every machine undergoes regular inspections and strict quality monitoring during the production process. Before leaving the factory, specialized personnel conduct functional tests to ensure that each machine meets factory standards and can efficiently serve you
Global Customer
FAQ
Q1.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q2. If we don't know how to use the machine, can you teach us?
Yes. We will send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone, email or skype.
Q3. How long is the delivery time?
For standard machines, it would be 3-5 days; For non-standard machines and customized machines according to client's specific requirements, it would be prolong.
Q4. why should you buy from us not from other suppliers?
Our company focus on produce make laser welding machine,laser cutting & laser cleaning machine.Our key engineers working in laser10 years, have enough laser experience, can make high quality machine and provide best after sales service to our customers.
Q5. Do you arrange shipment for the machines?
Yes. we can do FOB or CIF or DAP price, we will arrange shipment for you. For EXW price, buyer need to arrange shipment by yourselves.
Q6.how to use cleaning and cutting function?
Cutting and welding use same focus lens, just need change the nozzle, it need to change the focus lens when do cleaning job, more questions, we can show you user video.
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q2. If we don't know how to use the machine, can you teach us?
Yes. We will send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone, email or skype.
Q3. How long is the delivery time?
For standard machines, it would be 3-5 days; For non-standard machines and customized machines according to client's specific requirements, it would be prolong.
Q4. why should you buy from us not from other suppliers?
Our company focus on produce make laser welding machine,laser cutting & laser cleaning machine.Our key engineers working in laser10 years, have enough laser experience, can make high quality machine and provide best after sales service to our customers.
Q5. Do you arrange shipment for the machines?
Yes. we can do FOB or CIF or DAP price, we will arrange shipment for you. For EXW price, buyer need to arrange shipment by yourselves.
Q6.how to use cleaning and cutting function?
Cutting and welding use same focus lens, just need change the nozzle, it need to change the focus lens when do cleaning job, more questions, we can show you user video.
