CCTV 96W 100Mpbs Fiber optic 4 Port PoE fiber Switch for CCTV Camera
CCTV 96W 100Mpbs Fiber optic 4 Port PoE fiber Switch for CCTV Camera
CCTV 96W 100Mpbs Fiber optic 4 Port PoE fiber Switch for CCTV Camera
CCTV 96W 100Mpbs Fiber optic 4 Port PoE fiber Switch for CCTV Camera
CCTV 96W 100Mpbs Fiber optic 4 Port PoE fiber Switch for CCTV Camera
CCTV 96W 100Mpbs Fiber optic 4 Port PoE fiber Switch for CCTV Camera
CCTV 96W 100Mpbs Fiber optic 4 Port PoE fiber Switch for CCTV Camera
CCTV 96W 100Mpbs Fiber optic 4 Port PoE fiber Switch for CCTV Camera

CCTV 96W 100Mpbs Fiber optic 4 Port PoE fiber Switch for CCTV Camera

FOB Reference Price: Get Latest Price
≥10 Pieces
US $17
≥100 Pieces
US $16
≥1000 Pieces
US $15
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Atongda
No. of Fiber:
1.
Use:
FTTH
Products Status:
Stock
Ports:
4
Transmission Rate:
10/100Mbps
Function:
LACP, POE, QoS, SNMP, VLAN Support
Communication Mode:
Full-Duplex & Half-Duplex
Name:
Fiber PoE switch
Color:
Black
Warranty:
3 years
Standard:
IEEE802.3AF/AT

Quick Details

Type:
CCTV
Model Number:
ATD-POE401FE
Place of Origin:
Guangdong, China
Brand Name:
Atongda
No. of Fiber:
1.
Use:
FTTH
Products Status:
Stock
Ports:
4
Transmission Rate:
10/100Mbps
Function:
LACP, POE, QoS, SNMP, VLAN Support
Communication Mode:
Full-Duplex & Half-Duplex
Name:
Fiber PoE switch
Color:
Black
Warranty:
3 years
Standard:
IEEE802.3AF/AT

65W 100Mpbs Fiber optic 4 Port PoE Switch for CCTV Camera

Overview:

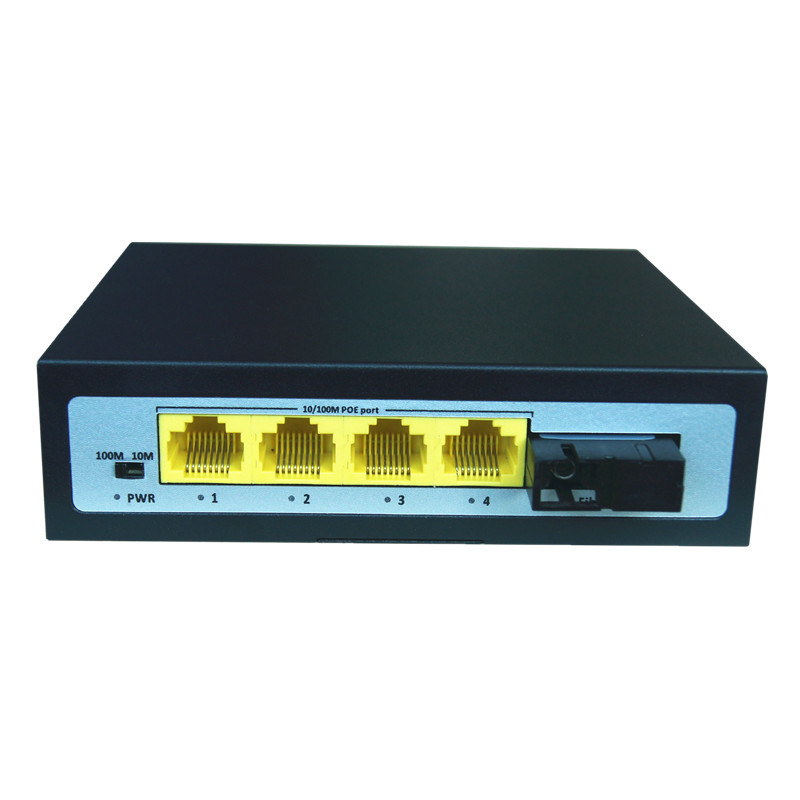

ATD-POE401FE 4+1 Port 100Mbps PoE Switch, reduces equipment and installation costs by delivering data and

power over existing Ethernet cables. This unmanaged switch offers four 100M PoE ports which supply 15.4 watts of power per port for devices such as high power wireless access points, and VoIP telephony systems.

This rack mountable switch features an internal power supply. Auto sensing technology delivers 15.4 watts to 802.3af PoE devices. It reduces energy consumption by up to 75% when the switch is not in use. Boost office efficiency and reduce network congestion with a total switching capacity of 1 Gbps. LED indicators display device status for efficient troubleshooting. This switch comes in a sturdy metal case.

Features:

1,IEEE 802.3af Power over Ethernet  PoE compliant

2,Supports 10/100Mbps fast Ethernet

3,4 x 100M bit Auto-MDIX  PoE ports

4,Support SC fiber uplink (TX,RX)

5,Provides up to 15.4 watts for PoE

6,Automatically detects the PoE class level of a Powered Device

7,1Gbps  bandwidth

8,Forwarding rate: 100 Mbps / 148,800 pps; 10 Mbps / 14,880 pps

9,Status LEDs: System Power, PoE, 100 Mbps, and Link / Activity

10,Full wire-speed non-blocking reception and transmission

11,Store-and-forward switching method

12,Back pressure Flow Control for Half-Duplex mode

13,IEEE 802.3x Flow Control for Full-Duplex mode

14,Power saving technology powers down unused ports and when a connected   device is in standby mode

15,Plug and Play

16,Sturdy rack mountable metal case

17,Easy installation and use , no need to convert by software and network         protocol

18,1-year limited warranty

Technical Specification:

Hardware

Standard

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3x Flow Control

Ports

4x 100M bit Auto-MDIX PoE / PoE+ RJ-45 ports

Data Transfer Rate

Ethernet: 10/100 Mbps (Half / Full Duplex)

Forwarding Rate

100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps

Data RAM Buffer

96 K bytes

Address Table

2 K MAC entries

Switch Fabric

1Gbps

Power

100-240 V, 50/60 Hz, 1.5A

Diagnostic LEDs

Power, PoE, Link / Activity

Power Consumption

Min: 8Watts (standby)

Max: 96Watts

PoE Max: 120Watts (4 x 30 watts PoE devices connected

Temperature

Operating: -20° ~ 70°C

Storage: -20° ~ 90°C

Humidity

Max 90% (non-condensing)

Dimensions

132x 83 x 35mm

Weight

0. 8 5 kg

Certifications

CE, FCC ROHS

PoE

Power over Ethernet

Up to 15.4 watts for PoE
PoE: pin 3,6 for power - and pin 1,2 for power +
