- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sea King
-
Length:
-
8.8m
-
Material:
-
5083 Aluminum
-
Engine:
-
Outboards
-
Usage:
-
Fishing/Working/Passenger carry/ Pilot Patrol Ambulance Boat
-
Length of the Hull(m):
-
8m
-
Beam (m):
-
2.55m
-
Depth(m):
-
1.4m
-
Bottom(mm):
-
5mm
-
Transom(mm):
-
5mm
-
Person Capacity(Max):
-
6
-
Power:
-
175HP-350HP
Quick Details
-
Hull Material:
-
Aluminum
-
Type:
-
Crusing Yacht
-
Engine Type:
-
OUTBOARD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sea King
-
Length:
-
8.8m
-
Material:
-
5083 Aluminum
-
Engine:
-
Outboards
-
Usage:
-
Fishing/Working/Passenger carry/ Pilot Patrol Ambulance Boat
-
Length of the Hull(m):
-
8m
-
Beam (m):
-
2.55m
-
Depth(m):
-
1.4m
-
Bottom(mm):
-
5mm
-
Transom(mm):
-
5mm
-
Person Capacity(Max):
-
6
-
Power:
-
175HP-350HP

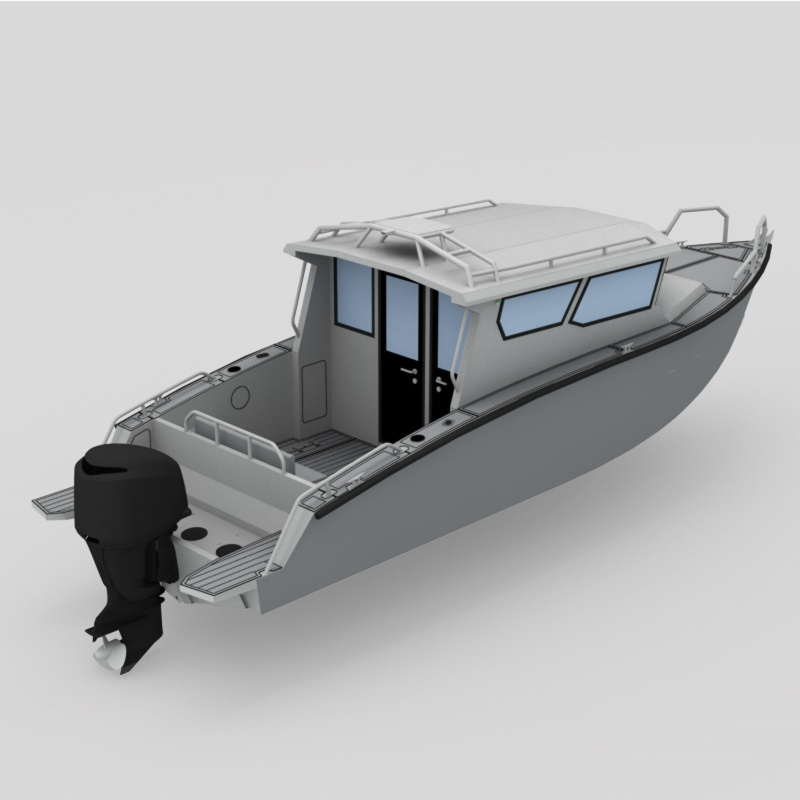

Product Description
|
SPECIFICATIONS
|
B840
|
|
Length Maximum(m)
|
8.4m
|
|
Length of the Hull(m)
|
8m
|
|
Beam (m)
|
2.55m
|
|
Depth(m)
|
1.4m
|
|
Draught(m)
|
0.35m
|
|
Overall Height(m)
|
2.63m
|
|
Transom Shaft（Single Engine）
|
635
|
|
Bottom(mm)
|
5mm
|
1) Swedish classic axe head design, smooth appearance, good wave-breaking, superior navigation performance;
2) The cabin space is large, with independent toilet, leisure area, rest cabin, independent toilet can be removed;
3) Box-type seats are set on both sides of the rear deck, and folding chairs are set in the middle, which can be removed;
4) Tail diving platform design;
5) Built-in radar base;
6) The style can be extended to 6 meters.
Packing & Delivery
Manufacturing Technique
1.All of our fishing & working boat are made of Marine-grade aluminum 5083-h116 with China Ship Classification society ( CCS )
2.Welding Specification :
2.Welding Specification :
1) TIG and MIG are to be adopted for this ship .
2) The ultrasonic inspection to be carried out for the cross joint of seam and other important place.
3) From 5083-H116 material to welding wires to welding use gas & experienced qualified welders.
4) The bottom is double bottom system and constructed on the longitudinal system of framing.
5) Solid floors will be provided at every frame station , the side transverse frames will be fitted at a space of 500mm ."
3. The Core Features Of Our safe Design
3. The Core Features Of Our safe Design
1) The Whole hull structure Manual bilge pump system
2) The underfloor fuel tank with cutoff valves and fuel inspection hose with
heavy duty fuel hoses
heavy duty fuel hoses
3) Balance testing , Flotation and deck water-Tight and flotation testing make sure 100% safe "
