Quick Details
-
Internal Dimensions(l x W x H)(mm):
-
26000L
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
ACE
-
Vessel Material:
-
304 Stainless Steel
-
Design Code:
-
T4
-
Max Working Pressure:
-
1.76 Bar
-
Payload:
-
32300 Kgs
-
Approval:
-
LR CCS
Quick Details
-
Type:
-
Tank Container
-
Capacity:
-
26 CBM
-
External Dimensions(l x W x H)(mm):
-
6058 x 2438 x 2591 mm
-
Internal Dimensions(l x W x H)(mm):
-
26000L
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
ACE
-
Vessel Material:
-
304 Stainless Steel
-
Design Code:
-
T4
-
Max Working Pressure:
-
1.76 Bar
-
Payload:
-
32300 Kgs
-
Approval:
-
LR CCS
Hot Sale Products
Product Description

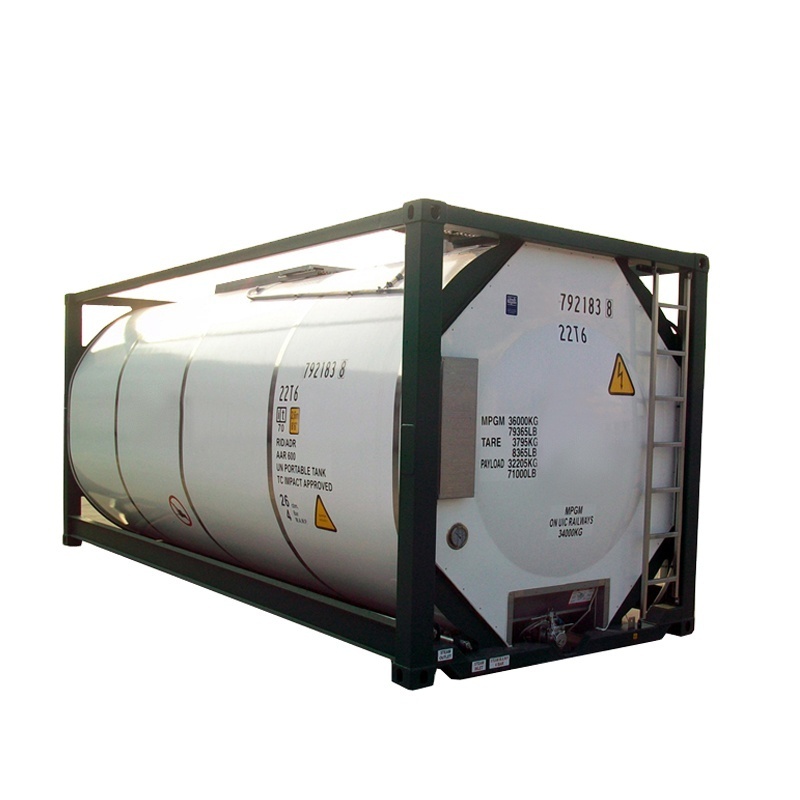

304 Stainless Steel UN T4 Portable Fuel Tank Container
Vessel Material
Stainless Steel 304
T4 Grade
ASME Standard
UN Portable T4 Grade
Specification
|
Specifications_20ft ISOTank Container
|
|
|
||
|
Tank Type
|
|
UN T4 Liquid Tank
|
||
|
|
|
Full Frame
|
||
|
Aplicable Medium
|
|
General Liquid Chemicals
|
||
|
Vessel Design Code
|
|
ASME VIII DIV.1
|
||
|
Approval Standard
|
|
IMDG, US DOT CFR 49, RID/ADR, CSC, TC, TIR, UIC, ISO
|
||
|
Main Date
|
Frame Dimensions
|
6058 x 2438 x 2591 mm
|
||
|
|
Capacity
|
26000 L
|
||
|
|
Payload
|
32300 Kgs
|
||
|
Working
|
Pressure
|
1.76 Bar (MAX)
|
||
|
|
Temperature
|
- 40 to 130 ℃
|
||
|
Details
|
Vessel
|
304
|
||
|
|
Discharge
|
DN80 (Top) & 3'' BSP(Bottom)
|
||
|
|
Valves
|
Safety Relief Valve , Air Inlet Ball Valve
45° Internal Foot Valve integrated a Butterfly Valve
|
||
|
|
Other
|
Manhole, Thermometer
|
||
|
Please contact ACE to get technical specification for final confirmation.
|
|
|
||
