Quick Details
-
Model Number:
-
Hanz-Nb tube
-
Shape:
-
tube, pipe
-
Material:
-
niobium
-
Chemical Composition:
-
99.95% niobium
-
Product name:
-
Niobium tube
-
Standard:
-
ASTM B394
-
Purity:
-
99.95% min
-
Model number:
-
R04200, R04210, R04251, R04261
-
Color:
-
Silver Gray
-
Melting Point:
-
2468℃
-
Boiling point:
-
4742℃
-
Density:
-
8.6g/cm3
-
Feature:
-
low steam pressure
Quick Details
-
Application:
-
Metallurgy, Industrial, Electronic, Medical,etc, Chemical, mechanical, aerospace
-
Place of Origin:
-
Shaanxi
-
Brand Name:
-
Baoji Hanz
-
Model Number:
-
Hanz-Nb tube
-
Shape:
-
tube, pipe
-
Material:
-
niobium
-
Chemical Composition:
-
99.95% niobium
-
Product name:
-
Niobium tube
-
Standard:
-
ASTM B394
-
Purity:
-
99.95% min
-
Model number:
-
R04200, R04210, R04251, R04261
-
Color:
-
Silver Gray
-
Melting Point:
-
2468℃
-
Boiling point:
-
4742℃
-
Density:
-
8.6g/cm3
-
Feature:
-
low steam pressure

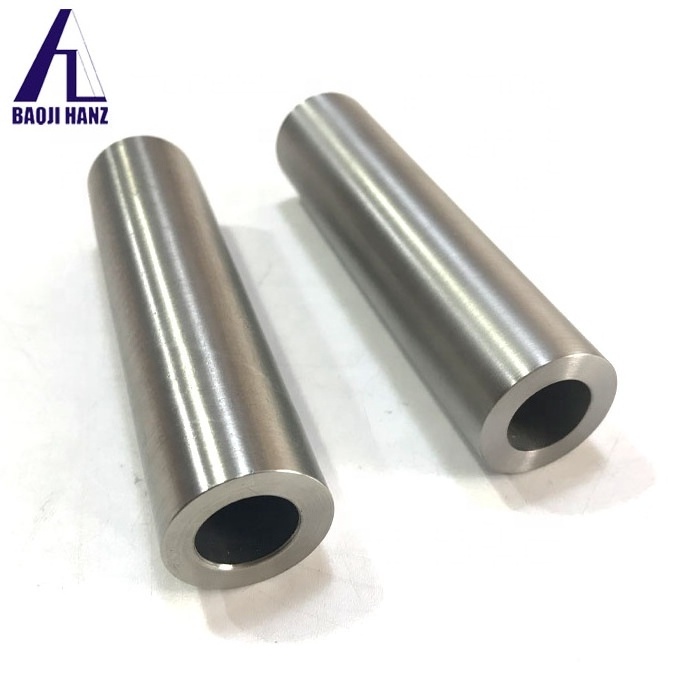

Product Show
Specification
|
Item
|
Best quality rare metal forged 95% pure niobium alloy tube for industry
|
|
Standard
|
ASTM B394
|
|
Density
|
8.57g/cm3
|
|
Melting point
|
2468℃
|
|
Purity
|
99.95% min niobium
|
|
Size
|
OD≤65mm*WT ≤4.0mm*Length
|
|
Surface
|
polished, grinding
|
|
Technique
|
sintering, rolling, forging, spinning
|
|
Feature
|
high temperature resistance, corrosion resistance, long service life
|
|
Application
|
* Heat exchangers in heat exchangers.
* Thermometer protection tube for petrochemical industry. * Corrosion resistant, high temperature resistant industry * Aerospace, Electronic industry |
Products Description
|
Grade
|
Condition
|
OD/mm
|
Wall thickness/mm
|
Length/mm
|
|
R04200
R04210
R04251
R04261
|
Annealing(M)
Cold rolled(Y)
Stress relief(m)
|
1~3
|
0.2~0.4
|
As customer's request
|
|
|
|
>3~5
|
0.2~0.6
|
|
|
|
|
>5~15
|
0.3~1.0
|
|
|
|
|
>15~25
|
0.6~2.0
|
|
|
|
|
>25~35
|
0.8~3.0
|
|
|
|
|
>35~40
|
1.0~3.5
|
|
|
|
|
>40~50
|
1.0~4.0
|
|
|
|
|
>50~65
|
1.2~4.0
|
|
|
Grade
|
Clearance element content(%)≤
|
|
|
|
|||
|
|
O
|
N
|
H
|
C
|
|||
|
R04200
|
0.0250
|
0.0100
|
0.0015
|
0.0100
|
|||
|
R04210
|
0.0400
|
0.0100
|
0.0015
|
0.0150
|
|||
|
R04251
|
0.0250
|
0.0100
|
0.0015
|
0.0100
|
|||
|
R04261
|
0.0400
|
0.0100
|
0.0015
|
0.0150
|
|||
* High ductility
* Good Superconductity property in low temperature
* High melting point
* Good corrosion resistance property
* Good wear resistance property
* Iron and Steel industry
* Aerospace avition industry
* Superconducting material industry
* Aerospace avition industry
* Superconducting material industry
Hot-sale products
Packaging&Shipping
* Wrapped with water-proof paper
* Surrounded with foam and then put into plywood box
* Sealed and fixed
* As customer's requirements packing
* Surrounded with foam and then put into plywood box
* Sealed and fixed
* As customer's requirements packing
Various Mode of Transportation for you:
Air transportation
Sea transportation
By Express mail: DHL, FedEX, UPS, EMS, SF-Express, etc
After we send the niobium tube, we will send you the tracking number to check in time, and also we will keep tracking the order
until you received successfully.
Air transportation
Sea transportation
By Express mail: DHL, FedEX, UPS, EMS, SF-Express, etc
After we send the niobium tube, we will send you the tracking number to check in time, and also we will keep tracking the order
until you received successfully.
