Quick Details
-
Brand Name:
-
Seaflo
-
Model Number:
-
SFDP1-070-060-53
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
Power
-
Cable Length:
-
16AWG
-
Outlet Size:
-
quick attach
-
Usage:
-
Water
-
Max Flow Rate:
-
7.0 GPM /26.5 LPM
-
Max Pressure:
-
60 PSI / 4.1 Bar
-
Weight:
-
9.84 lbs (4.46 kg)
-
Switch Type:
-
Switch & By pass
-
Diaphragm Material:
-
Santoprene
-
Valve Material:
-
EPDM
-
Self Priming:
-
6 ft [1.8 m] Suction
-
Max Fluid Temp.:
-
140 °F [60 °C]
-
Inlet & Oulet Port:
-
Quick Attach
Quick Details
-
Application:
-
Marine
-
Pressure:
-
High Pressure
-
Voltage:
-
12V
-
Brand Name:
-
Seaflo
-
Model Number:
-
SFDP1-070-060-53
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
Power
-
Cable Length:
-
16AWG
-
Outlet Size:
-
quick attach
-
Usage:
-
Water
-
Max Flow Rate:
-
7.0 GPM /26.5 LPM
-
Max Pressure:
-
60 PSI / 4.1 Bar
-
Weight:
-
9.84 lbs (4.46 kg)
-
Switch Type:
-
Switch & By pass
-
Diaphragm Material:
-
Santoprene
-
Valve Material:
-
EPDM
-
Self Priming:
-
6 ft [1.8 m] Suction
-
Max Fluid Temp.:
-
140 °F [60 °C]
-
Inlet & Oulet Port:
-
Quick Attach

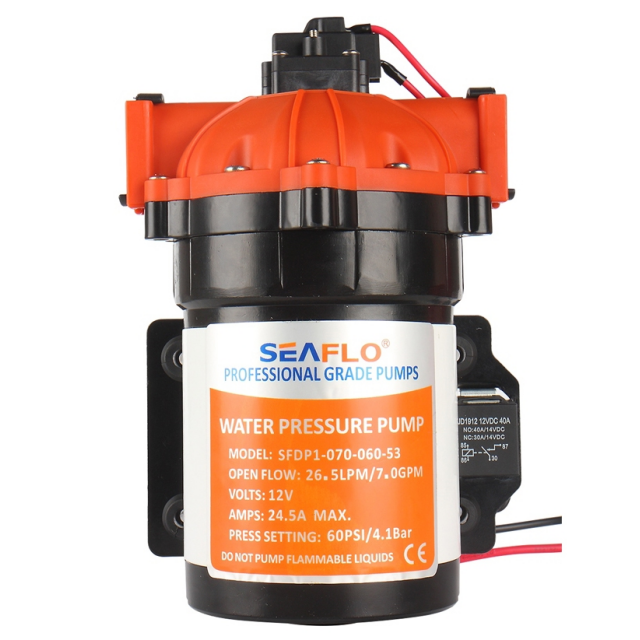

SEAFLO 12V DC 5 Chamber Positive Pump with Quick Attach Ports Diaphragm Water Pump with Big flow rate
| FEATURES & BENEFITS |
|
-Continuous Duty
-Can supply up to 6fixtures -Self priming -Run dry safe -Can be use for Fresh&Salt Water |
-Adjustable pressure switch
-16AWG,9"long Leads -2 Year Warranty - Meets or exceeds RoHS, SGS, and ISO standards |
DIMENSIONS
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Open Flow (GPM/LPM) |
Control Type |
Max Draw |
Shut-off Pressure
(PSI/BAR) |
Valves | Diaphragm | Ports |
Wire Connections |
| SFDP1-070-060-53 | 12V | 7.0 / 26.5 | Switch | 24.5A | 60 / 4.1 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
| PERFORMANCE |
| PRESSURE | FLOW | CURRENT | ||
| PSI | BAR | GPM |
LPM |
APMS |
| 0 | 0 | 5.55 | 21.00 | 10.53 |
| 25 | 1.73 | 4.17 | 15.80 | 16.07 |
| 30 | 2.07 | 4.07 | 15.40 | 16.76 |
| 40 | 2.72 | 3.86 | 14.60 | 18 |
| 50 | 4.45 | 3.59 | 13.60 | 19.6 |
| 60 | 4.14 | 3.38 | 12.80 | 20.88 |
| 70 | 4.83 | 0 | 0 | 21.92 |
| HEAT RISE |
|
Unit Pump Weight |
9.84 lbs (4.46 kg) |
|
Selling Unit Size (L x W x H) |
13.46" x 7.09" x 5.63"
|
|
Selling Unit Weight |
10.89 lbs (4.94kg) |
|
Master Carton Size (L x W x H) |
14.96" x 14.96" x 12.60"
|
|
Master Carton Qty |
4 pcs |
|
Master Carton Weight |
46.31 lbs (21 kg) |
