Quick Details
-
Brand Name:
-
Sanstone
-
Model Number:
-
CSH08-M4-4T-R0.5 65°
-
Product name:
-

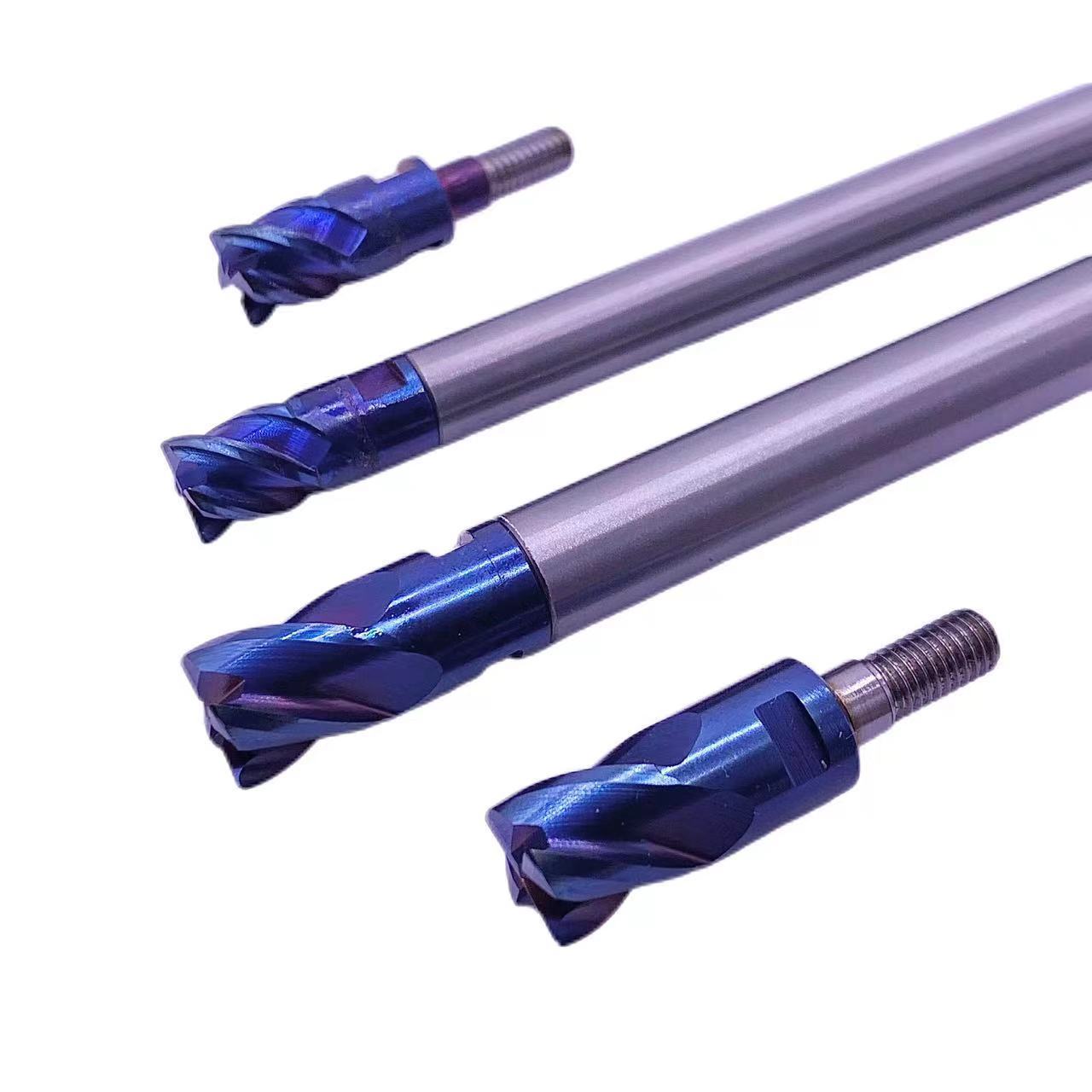

Screw Lock End Milling Cutter Head
-
Application:
-
Milling Cutter
-
MOQ:
-
1pcs/Box
-
Package:
-
Box
-
Origin:
-
Mainland China
-
Processing Material:
-
Stainless steel, Steel
-
Keywords:
-
end mill
Quick Details
-
Material:
-
Carbide
-
Coating:
-
AlTiN
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Sanstone
-
Model Number:
-
CSH08-M4-4T-R0.5 65°
-
Product name:
-
Screw Lock End Milling Cutter Head
-
Application:
-
Milling Cutter
-
MOQ:
-
1pcs/Box
-
Package:
-
Box
-
Origin:
-
Mainland China
-
Processing Material:
-
Stainless steel, Steel
-
Keywords:
-
end mill
Recommend Products
Products Description
|
Introduction for common coatings of carbide end mills
|
|
|
|
|
|
|
||||||
|
Grade of endmill
|
Coating composition
|
Color
|
Hardness(Hv)
|
Thickness(μm)
|
Frictional coefficient
|
Maximum working temperature(℃)
|
||||||
|
HRC45 end mills
|
AlTiN
|
black
|
3300
|
1-4
|
0.7
|
850
|
||||||
|
HRC55 end mills
|
TiAlN
|
Bronze
|
3400
|
1-4
|
0.7
|
900
|
||||||
|
HRC60 end mills
|
NaNo TiAlCrN
|
Black
|
4000
|
1-7
|
0.35
|
1100
|
||||||
|
HRC65 end mills
|
NaNo TiAlXN
|
Blue
|
4500
|
1-7
|
0.45
|
1200
|
||||||
|
Special end mills for SS
|
NaNo AlTiN
|
Gold
|
4500
|
1-7
|
0.55
|
1200
|
||||||
|
Carbide Material Introduction
|
|
|
|
|
||||
|
ENDMILL GRADE
|
CARBIDE GRADE
|
GRAIN
|
INTRODUCTION
|
APPLICATION
|
||||
|
HRC45 end mills
|
YG10X
|
0.6μm
|
YG10X is tungsten carbide powder with 89.7% WC and 10% cobalt powder, and has high toughness and wear resistance.
|
Carbon steel
Alloy steel
Cast iron
Pre hardened steel with hardness lower than HRC40.
|
||||
|
HRC55 end mills
|
YL10.2
|
0.5μm
|
YL10.2 is ultra fine grain and containes Ni and Cr element, which provides high strength and good toughness.It is widely used in the manufacture of end mills and drills
|
General Steel
Stainless Steel
cast iron
Pre hardened steel with hardness lower than HRC50.
|
||||
|
HRC60 end mills
|
WF25
|
0.4μm
|
WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance.
|
High Hard steel, staniless steel,cast iron, etc
It is recommended to be used for various materials with hardness lower than HRC58
|
||||
|
HRC65 end mills
|
GU25UF
|
0.4μm
|
GU25UF is 0.4micron powder with 12% cobalt and has very high toughness and wear resistance.It is the most suitable for hard
cutting.
|
High hardness steel
Heat treated steel
Ductile iron
And other materials with hardness HRC50-HRC65
|
||||
|
Special end mill for SS
|
WF25
|
0.4μm
|
WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance.
|
Stainless steel
carbon steel
alloy steel
titanium alloy
heat-resisting alloy
|
||||
Product Description
Specification
|
item
|
value
|
|
Customized support
|
OEM, ODM
|
|
Place of Origin
|
China
|
|
|
Hunan
|
|
Brand Name
|
Sanstone
|
|
Model Number
|
CSH08-M4-4T-R0.5 65°
|
|
Material
|
Carbide
|
|
Coating
|
AlTiN
|
|
Product name
|
Screw Lock End Milling Cutter Head
|
|
Application
|
Milling Cutter
|
|
MOQ
|
1pcs/Box
|
|
Package
|
Box
|
|
Origin
|
Mainland China
|
|
Processing Material
|
Stainless steel, Steel
|
|
Keywords
|
end mill
|
