Quick Details
-
Tube size:
-
4,6,8,10,12,16mm
-
Thread size:
-
M5,1/8'',1/4'',3/8'',1/2''
-
Thread type:
-
G/R/NPT
-
Working medium:
-
Compressed air
-
Ambient temperature:
-
-10~70℃
-
Material:
-
Plastic and nickel plated brass
Quick Details
-
Weight (KG):
-
1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NTA
-
Tube size:
-
4,6,8,10,12,16mm
-
Thread size:
-
M5,1/8'',1/4'',3/8'',1/2''
-
Thread type:
-
G/R/NPT
-
Working medium:
-
Compressed air
-
Ambient temperature:
-
-10~70℃
-
Material:
-
Plastic and nickel plated brass

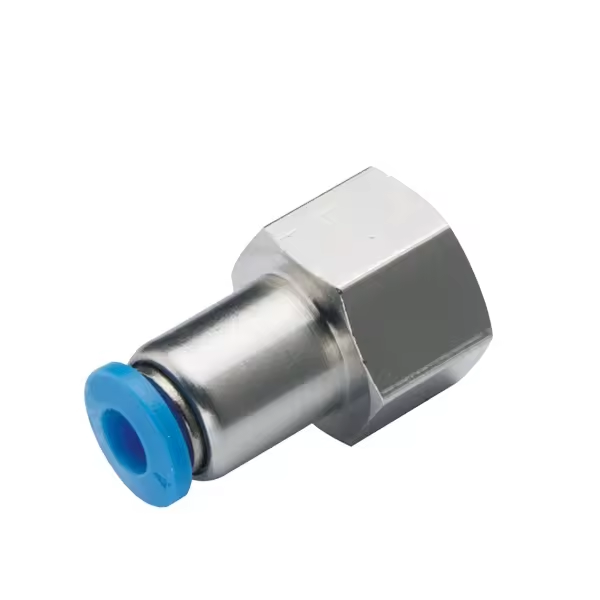

PNEUMATIC PUSH IN FITTING
1. Quick installation, simple and flexible, space saving
2. The tube fitting comes in a wide variety of models to meet your needs in pneumatic piping
3. Even after installation, the direction of tubing can easily be changed freely.
4. The release ring adopts the ellipse design to make in more convenient and labor saving for disconnection.
5. All taper pipe threads are pre-coated with Teflon with fine seal performance.
6. All fittings are equipped with internal hexagonal holes, it is easy for them to be mounted in the narrow places.
|
Fluid |
Air,Vacuum |
|
Operating Pressure |
0.1~1.2MPa(15~168psi) |
|
Max pressure |
1.2MPa(174psi) |
|
Negative pressure |
-100KPa(10Torr) |
|
Operating Temperature |
-10—+80 ℃ |
|
Applicable tube |
PU,nylon tube |
