- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
DGING
-
Fork Length:
-
1220mm
-
Fork Width:
-
90mm
-
Overall Dimensions:
-
2100*960*1890mm
-
Weight (KG):
-
1000 kg
-
After-sales Service Provided:
-
Video technical support, Engineers available to service machinery
-
Type:
-
Manual Pallet Truck
-
Tire:
-
Solid
-
Color::
-
Customer Demanded
-
Power type::
-
Electric Power
-
Standard lifting height:
-
3 meters
-
Load Center::
-
400mm
-
Mast::
-
2 Stage/3 Stage
-
Max. Lifting Height::
-
3000mm
-
After Warranty Service::
-
Online support, Spare parts, Field maintenance and repair service
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Min. Lifting Height:
-
80mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DGING
-
Fork Length:
-
1220mm
-
Fork Width:
-
90mm
-
Overall Dimensions:
-
2100*960*1890mm
-
Weight (KG):
-
1000 kg
-
After-sales Service Provided:
-
Video technical support, Engineers available to service machinery
-
Type:
-
Manual Pallet Truck
-
Tire:
-
Solid
-
Color::
-
Customer Demanded
-
Power type::
-
Electric Power
-
Standard lifting height:
-
3 meters
-
Load Center::
-
400mm
-
Mast::
-
2 Stage/3 Stage
-
Max. Lifting Height::
-
3000mm
-
After Warranty Service::
-
Online support, Spare parts, Field maintenance and repair service
-
Marketing Type:
-
Ordinary Product
Product Description
Specification

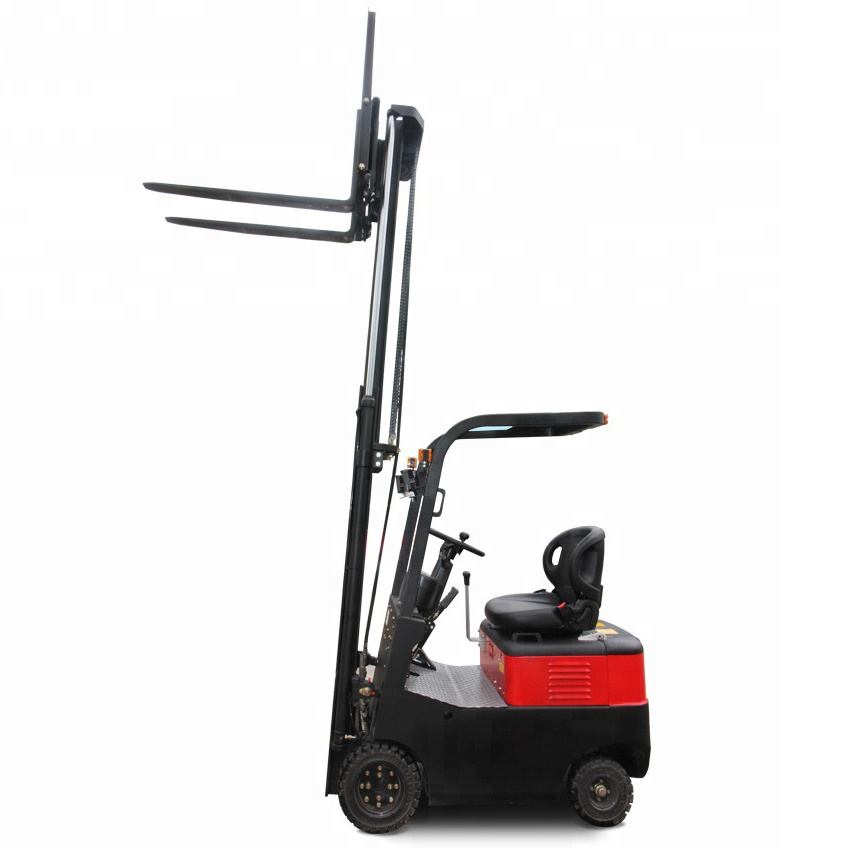

1.Mini electric forklift with small turning radius of 1200mm which can pass through 760mm width aisle.
2.No pollution,energy efficiency and environmental protection.
3.Super low cost,power consumption:3kw/h per day.
4.Own 22 national patents,more competitive and imitation is prohibited.
5.Various optional tools can meeting customer's different working condition.
|
Model
|
|
CPD10
|
|
|
Power type
|
|
Battery |
|
|
Rated load
|
|
1000kg
|
|
|
Load center distance
|
|
400mm
|
|
|
Driving type
|
|
seat
|
|
|
Length
|
With fork
|
2560mm
|
|
|
|
Without fork
|
1640mm
|
|
|
Whole Width
|
|
800mm
|
|
|
Height
|
Height no lifting frame
|
2050mm
|
|
|
|
Top frame height
|
1900mm
|
|
|
|
Max Height working
|
3820mm
|
|
|
Distance from seat to top light
|
|
970mm
|
|
|
Wheel base
|
|
1020mm
|
|
|
Front overhang
|
|
300mm
|
|
|
Back overhang
|
|
250mm
|
|
|
Front wheel tread
|
|
700mm
|
|
|
Back wheel tread
|
|
668mm
|
|
|
Min Floor clearance
|
|
90mm
|
|
|
Max lifting height
|
|
3000mm
|
|
