Quick Details
-
Application:
-
Hotel
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
PAD
-
Model Number:
-
PAD6000B
-
Motor:
-
DC24V 60W brushless, worm geared
-
Certificates:
-
CE, ISO9001:2008, RoHS, SGS
-
Max loading weight:
-
100KG/leaf
-
Opening speed:
-
100~500mm/s (adjustable)
-
Creeping speed:
-
30~100mm/s (adjustable)
-
Hold-open time:
-
0~9s
-
Entrance width:
-
600~1500mm/leaf
-
Track length:
-
customized (≤6m)
-
Belt length:
-
6.6m (standard)
-
We have professional workers:
-
with experience of 15 years
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Inspection
-
Project Solution Capability:
-
graphic design, total solution for projects
-
Application:
-
Hotel
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
PAD
-
Model Number:
-
PAD6000B
-
Motor:
-
DC24V 60W brushless, worm geared
-
Certificates:
-
CE, ISO9001:2008, RoHS, SGS
-
Max loading weight:
-
100KG/leaf
-
Opening speed:
-
100~500mm/s (adjustable)
-
Creeping speed:
-
30~100mm/s (adjustable)
-
Hold-open time:
-
0~9s
-
Entrance width:
-
600~1500mm/leaf
-
Track length:
-
customized (≤6m)
-
Belt length:
-
6.6m (standard)
-
We have professional workers:
-
with experience of 15 years

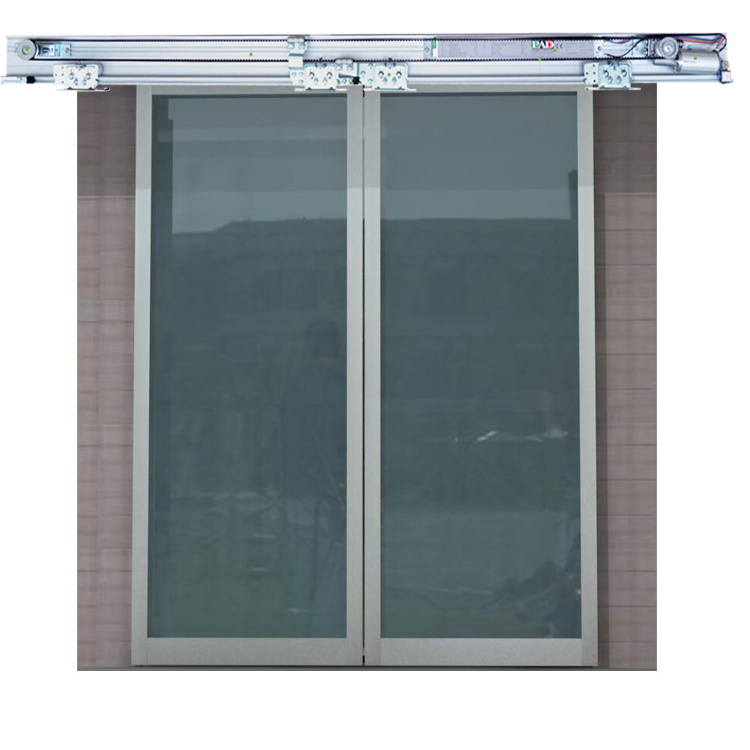

Aluminium profile automatic glass sliding door operator door closer with remote control
PAD6000A PAD6000B
|
|
| PAD6000 is configured with 125mm track and integrated controller, no connection board, it's simple and light but has good cost performance. It meets all kinds of using need with more perfect performance owing to the flexible and portable multi-modular design. The classic door features fashion, economical and practical, high-performance and maintenance-free motor and gearbox make sure that sliding door running safely and stably. Its tailor-made three dimensional structure design, makes the door opening and passageway not only beautiful but also fully functional. |
| Technical Data | |
| Operating style | intelligent single motor driving(60W) |
| Max. door weight | 1*100kg / 2*100kg |
| Opening way | one-way or two-way(double-leaf) |
| Entrance width | 800~2000mm |
| Opening speed | 100~500mm/s (adjustable) |
| Closing speed | 100~500mm/s (adjustable) |
| Creeping speed | 30~100mm/s (adjustable) |
| Hold-open time | 0~9s (adjustable) |
| Ambient temperature | -25℃~50℃ |
| Main power supply | 110~260V, 50/60Hz |
| Power consumption | 50W~120W |
| Track length | 2100mm, 3000mm, 4200mm, 6000mm |
Why choosing our products
1) Wide voltage range (AC110-260V);
2) Low power consumption when at work (160W), energy saving when at leisure (14W);
3) Intelligent design, easy to install and adjust;
4) Digitalized programs, running parameters can be revised with the hand-held terminal easily;
5) Specially designed noise-reduction track rail produces less noise, ensures the rollers to run smoothly ;
6) Advanced brushless DC motor and the geared worm are integrated together, which has advantages such as higher efficiency, larger torque and longer life span, no need of mechanical lock;
7) Different triggering modes are available;
8) The motor can lock automatically if there is no triggering signal. The powerful closing force keeps the door shut firmly. (with power on);
9) Different surface paintings are available;
10) 1 million times of test passed.
