Quick Details
-
Model Number:
-
1530
-
Voltage:
-
220V
-
Rated Power:
-
1000W
-
Dimension(L*W*H):
-
1500mmX3000mm
-
Weight (KG):
-
166 KG
-
Year:
-
Latest Date
-
Marketing Type:
-
Hot sales
-
Name:
-

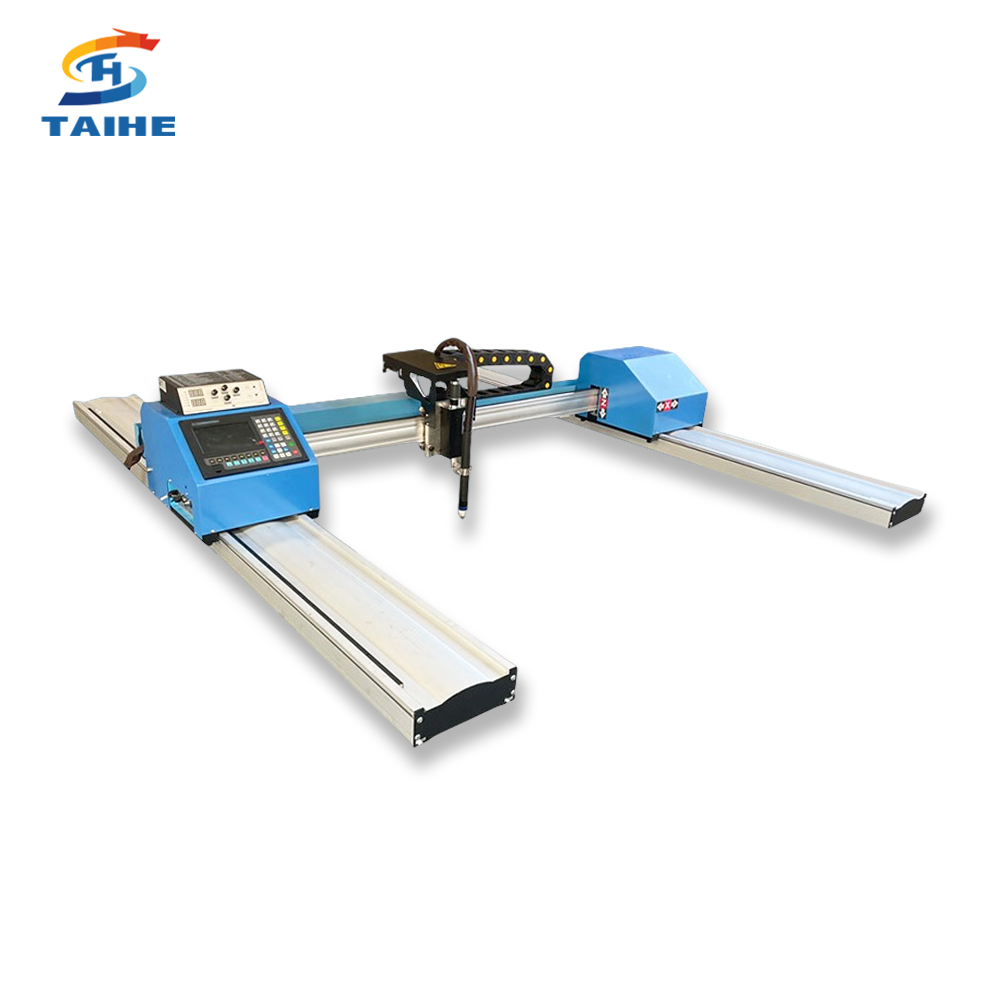

Cnc Plasma Table Mini
-
Keywords:
-
Control Cnc Plasma Kit
-
Cutting mode:
-
CNC system
-
Machine Type:
-
Plasma Metal Cutting Machine
-
After-sales Service Provided:
-
Video Conference Guidance
-
Application:
-
Manufacturing of General Machined Parts
-
Cutting method:
-
plasma source
-
Plasma cutting thickness:
-
12mm
-
Plasma cutting machine:
-
EISA
-
Cutting thickness:
-
12mm
Quick Details
-
Dimensions:
-
1500*3000mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TAIHE
-
Model Number:
-
1530
-
Voltage:
-
220V
-
Rated Power:
-
1000W
-
Dimension(L*W*H):
-
1500mmX3000mm
-
Weight (KG):
-
166 KG
-
Year:
-
Latest Date
-
Marketing Type:
-
Hot sales
-
Name:
-
Cnc Plasma Table Mini
-
Keywords:
-
Control Cnc Plasma Kit
-
Cutting mode:
-
CNC system
-
Machine Type:
-
Plasma Metal Cutting Machine
-
After-sales Service Provided:
-
Video Conference Guidance
-
Application:
-
Manufacturing of General Machined Parts
-
Cutting method:
-
plasma source
-
Plasma cutting thickness:
-
12mm
-
Plasma cutting machine:
-
EISA
-
Cutting thickness:
-
12mm
Video Pescription
Product Description
Main technical parameters of the product:
|
Model
|
HD1530
|
|
Cutting Area
|
1500X3000mm(Cutting Area Could Be Customized)
|
|
Plasma Power Source
|
120A China Huayuan Brand(45A,80A,100A,160A,200A are optional)
|
|
Control System
|
Shanghai Fangling With USB Interface
|
|
Worktable
|
Customized
|
|
X And Y Axes Transmission
|
Helical Rack And Pinion
|
|
Guide Rails
|
Linear Square Guide Rails
|
|
Drive Motors
|
Sub-divsion Stepper Motors
|
|
Drivers
|
Leadshine860
|
|
CNC Flame Cutting Torch
|
1
|
|
Idle Moving Speed
|
0~80m/min
|
|
Plasma Cutting Thickness For Steel
|
0.1~40mm
|
|
Flame Cutting Thickness For Steel
|
8mm~200mm
|
|
Positioning Accuracy For Straight Line
|
±0.1mm/10m
|
|
Repeat Accuracy For Straight Line
|
±0.1mm/10m
|
|
Enviroment Temperature
|
-5~45℃
|
|
Enviroment Humidity
|
≤90%
|
|
Voltage
|
AC380V/50Hz,Three Phase(Optional)
|
|
Net Weight
|
230KGS
|
