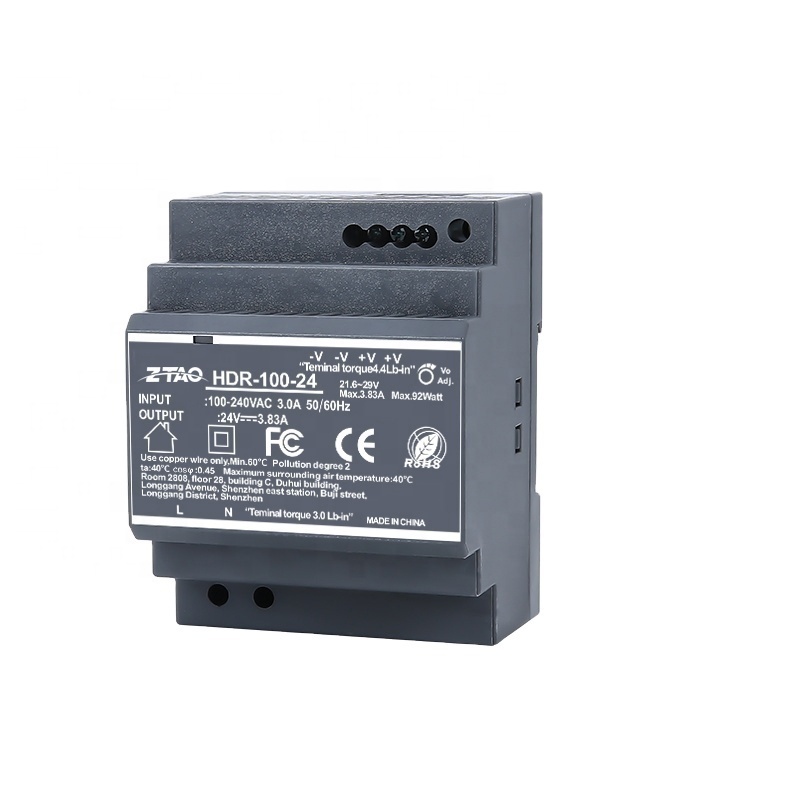

MODEL
|
|
HDR-100-12
|
HDR-100-15
|
HDR-100-24
|
|
|
|
DC Voltage
|
12v
|
15V
|
24v
|
48v
|
|
|
Rated Current
|
7.5A
|
6.5A
|
4.2A
|
2.1A
|
|
|
Current range
|
0~7.5A
|
0~6.5A
|
0~4.2A
|
0~2.1A
|
|
|
Rated power
|
90w
|
97.5w
|
100.8w
|
100.8W
|
|
|
Ripple&noise(max.)
|
120mVp-p
|
120mVp-p
|
150mVp-p
|
240mVp-p
|
|
|
Voltage ADJ. range
|
12~13.8V
|
13.5~18V
|
21.6~29V
|
43.2~55.2V
|
|
|
Voltage tolerance
|
±2.0%
|
±1.0%
|
±1.0%
|
±1.0%
|
|
|
Line regulation
|
±1.0%
|
±1.0%
|
±1.0%
|
±1.0%
|
|
|
Load regulation
|
±1.0%
|
±1.0%
|
±1.0%
|
±1.0%
|
|
|
Setup,Rise,Time
|
500ms, 60ms/230VAC 500ms, 60ms/115VAC(full load)
|
|
|
|
|
|
Hold up time
|
30ms/230VAC 12ms/115VAC（full load)
|
|
|
|
|
INPUT
|
Voltage range
|
85~264VAC(277VACusable ) 120~370VDC(390VDCusable )
|
|
|
|
|
|
Voltage range
|
50~60Hz
|
|
|
|
|
|
Efficiency
|
88%
|
89%
|
90%
|
90%
|
|
|
AC current
|
3A/115VAC 1.6A/230VAC
|
|
|
|
|
|
Inrush current
|
Cold start: 35A/115VAC 70A/230VAC
|
|
|
|
|
|
Over load
|
105~150% rated output power
|
|
|
|
|
|
|
Protected mode: constant current mode, can be automatically restored after the load abnormal condition is removed
|
|
|
|
|
|
Over voltage
|
14.2~16.2V
|
18.8~22.5V
|
30~36V
|
56.5~64.8V
|
|
|
|
Protective mode; Close the output and restart to restore
|
|
|
|
|
|
Working TEMP
|
-30~+70℃
|
|
|
|
|
|
Working humidity
|
20~90% RH,non-condensing
|
|
|
|
|
|
Storage TEMP humidity
|
-40~+85℃,10-95%RH,non-condensing
|
|
|
|
|
|
TEMP.coefficient
|
±0.03%℃(0~50℃)
|
|
|
|
|
|
Vibration
|
10~500Hz，2G 10min./1cycle，60min.each along X,Y,Z axes Install conform to IEC60068-2-6
|
|
|
|
|
|
Operating altitude
|
2000m
|
|
|
|
|
|
Over voltage class
|
Ⅲ;According to EN61558 EN50178 EN60664-1, EN62477-1;The altitude can be as high as 2,000 meters
|
|
|
|
|
|
Safety regulations
|
Ul60950-1,L508,EACTPTC O04,BSMI CNS14336-1, TuVEN61558-2-16,IEC60950-1 Certified
|
|
|
|
|
|
Withstand voltage
|
I/P-O/P4KVAC
|
|
|
|
|
|
Insolation resistance
|
I/P-O/P:100M Ohms 500VDc / 25℃/70% RH
|
|
|
|
|
|
Electromagnetic compatible emission
|
Parameter
|
Standard
|
|
Test Level /Note
|
|
|
|
Conducted
|
EN55032(CISPR32),CNS13438
|
|
Class B
|
|
|
|
Radiated
|
EN55032(CISPR32),CNS13438
|
|
Class B
|
|
|
|
Harmonic Current
|
EN61000-3-2
|
|
Class A
|
|
|
|
Voltage Flicker
|
EN61000-3-3
|
|
.........
|
|
|
EMC immunity requirements
|
EN55024,EN55035,EN61000-6-2,EN61204-3
|
|
|
|
|
|
|
Parameter
|
Standard
|
|
Test Level /Note
|
|
|
|
ESD
|
EN61000-4-2
|
|
Level3.8KV air,Level2,4KV contact, criteriaA
|
|
|
|
Radiated Susceptibility
|
EN61000-4-3
|
|
Level3,criteriaA
|
|
|
|
EFT / Burest
|
EN61000-4-4
|
|
Level3,criteriaA
|
|
|
|
Surge
|
EN61000-4-5
|
|
Level4,2KVIL-N, criteria A
|
|
|
|
Conducted
|
EN61000-4-6
|
|
level3,criteriaA
|
|
|
|
Magnetic Field
|
EN61000-4-8
|
|
Level 4,criteriaA
|
|
|
|
Voltage Dips and interruptions
|
EN61000-4-11
|
|
>95%dip0.5periods,30%dip 25perods,
>95% interruptions 250 periods
|
|
|
MTBF
|
≥856.5K hrs.MIL-HDBK-217F(25℃)
|
|
|
|
|
|
Dimension
|
70*90*54.5mm (W*H*D)
|
|
|
|
|
|
Packing
|
0.27Kg;48pcs/14Kg/0.6CUFT
|
|
|
|
